LTN6L 50 Hz CE 115 V

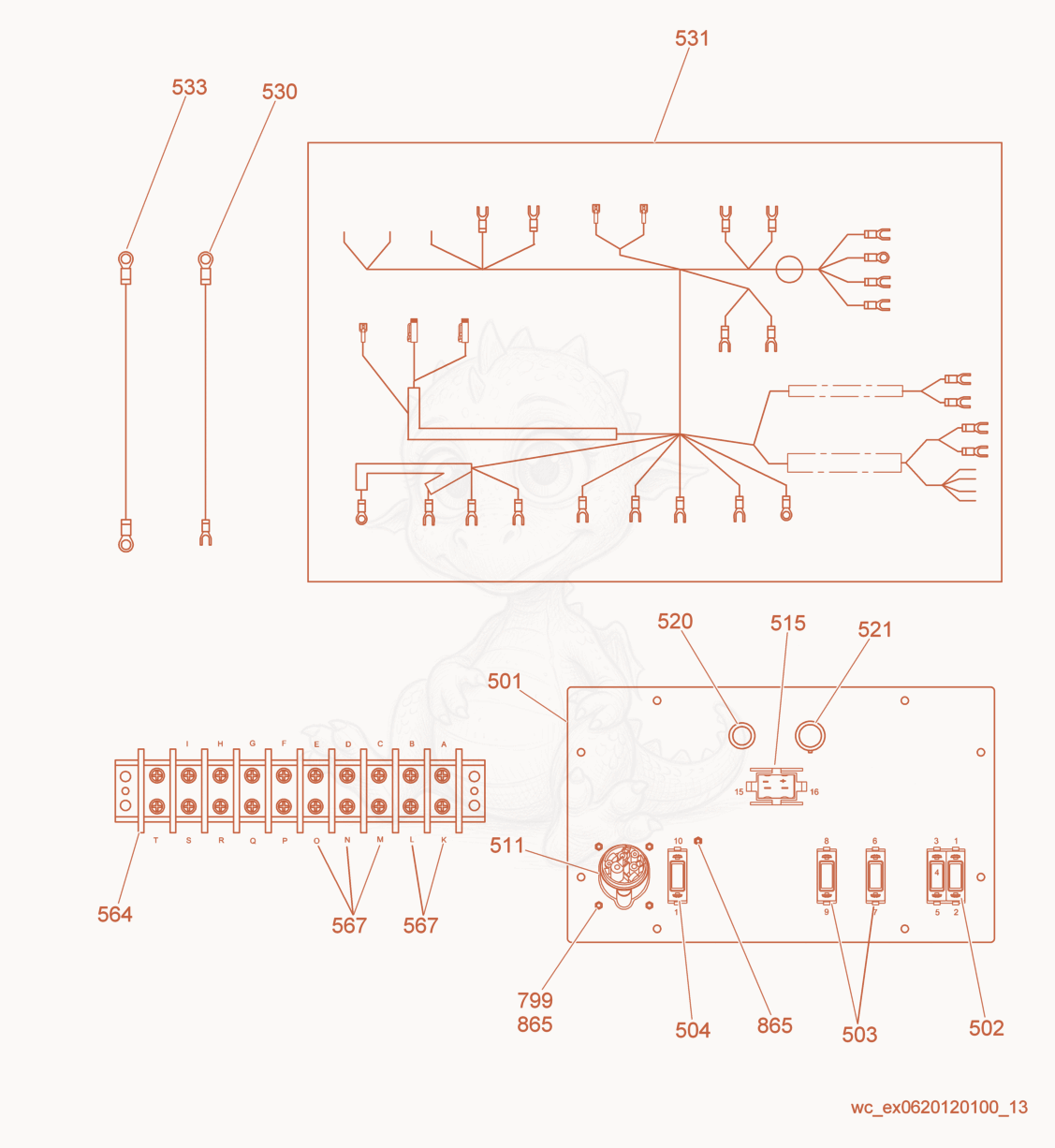

LTN6L Wiring Harness/Control Panel Diagram

Exploded parts diagram of the Wiring Harness/Control Panel of a Wacker Neuson LTN6L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5015000165308
    $133.45
    PANEL-CONTROL,WGB - 5000165308×1
  • 5025000176037
    $245.45
    BREAKER-2 POLE - 5000176037×1
  • 5035000172337
    $51.54
    BREAKER-LIGHT,30 AMP - 5000172337×1
  • 5045000172339
    $32.97
    BREAKER-OUTLET,16 AMP,250V - 5000172339×1
  • 5115000160537
    $75.46
    RECEPTACLE 115V - 5000160537×1
  • 5155000117280
    $28.83
    hour meter - 5000117280×1
  • 5205000159630
    $1.53
    Plug-Cap, 105, BPF Series - 5000159630×1
  • 5215000159631
    $0.15
    Plug-Cap, 1-1/8-6, BPF Series - 5000159631×1
  • 5305000177337
    $5.60
    WIRING HARNESS-PANEL GROUND - 5000177337×1
  • 5315000165299
    $2,042.91
    WIRING HARNESS-CNTRL PANEL,CE - 5000165299×1
  • 5335000176176
    $11.85
    WIRING HARNESS-WGB 115V WIRE - 5000176176×1
  • 5645000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×1
  • 5675000176464
    $1.35
    STRAP-JUMPER,CLOSED - 5000176464×3
  • 7995000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×4
  • 8655000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×5
