LTN6L 50 Hz CE

LTN6LE Tower Cradle Brackets Diagram

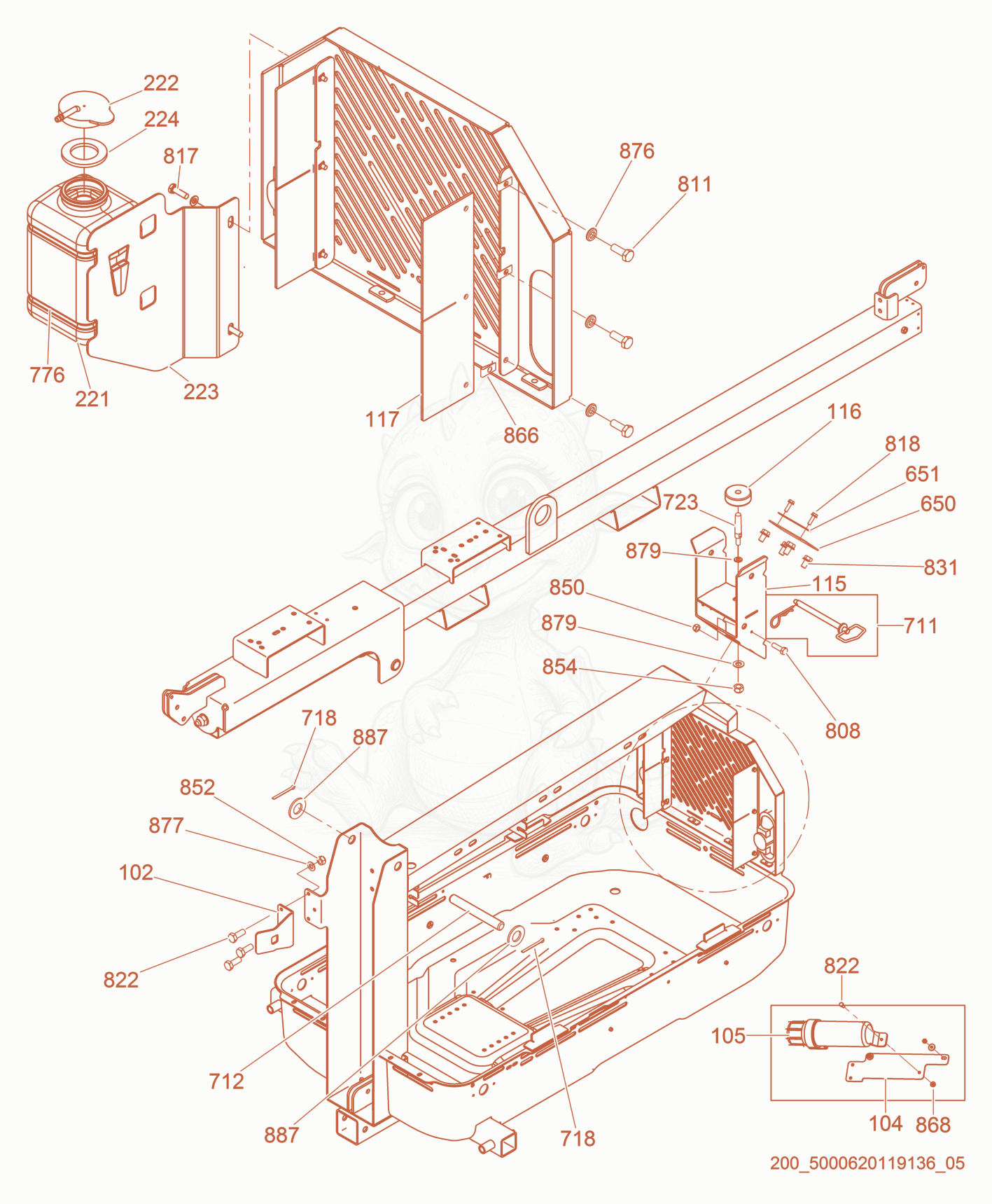

Exploded parts diagram of the Tower Cradle Brackets of a Wacker Neuson LTN6LE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1025000173809
    $55.80
    BRACKET-TOWER LOCK - 5000173809×1
  • 1045100020716
    $127.86
    BRACKET-MANUAL HOLDER P-5000176420 - 5100020716×1
  • 1055200008089
    $15.03
    Holder-Manual,3.25 w/Molded Feet - 5200008089×1
  • 1155000171002
    $454.18
    BRACKET-TOWER,CRADLE P-5000176420 - 5000171002×1
  • 1165000171702
    $12.97
    MOUNT-DAMPER,TOWER - 5000171702×1
  • 1175000175292
    $75.05
    DUCT-RADIATOR FLAP - 5000175292×2
  • 2215000165143
    $25.80
    BOTTLE-OVERFLOW - 5000165143×1
  • 2225000165144
    $3.23
    CAP-BOTTLE,OVERFLOW - 5000165144×1
  • 2235200001221
    $317.23
    Bracket-Overflow Bottle P-5000112007 - 5200001221×1
  • 2245000183432
    $0.76
    GASKET-CAP,OVERFLOW BOTTLE - 5000183432×1
  • 6505000172926
    $4.04
    COVER-RADIATOR ACCESS - 5000172926×1
  • 6515000171601
    $34.41
    PLATE-REINFORCING P-5000112007 - 5000171601×1
  • 7115000165225
    $67.69
    PIN-HITCH,LT - 5000165225×1
  • 7125000172024
    $88.54
    PIN-CLEVIS - 5000172024×1
  • 7185000116768
    $0.14
    PIN-COTTER 3/16 X 2 - 5000116768×2
  • 7235000165118
    $45.64
    PIN-TOWER LOCK - 5000165118×1
  • 7765000173813
    $0.55
    CABLE-TIE,#28-120-UV-50 - 5000173813×2
  • 8085000011476
    $0.09
    SCREW M5 X 16 HX.HD. - 5000011476×1
  • 8115000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×4
  • 8175000011470
    $0.11
    SCREW M6 X 20 HX.HD. - 5000011470×2
  • 8185000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×2
  • 8225000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×6
  • 8315000177269Not stocked
    Hexagonal flange head screw×4
  • 8505000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 8525000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×3
  • 8545000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×1
  • 8665000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×2
  • 8685000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×5
  • 8765000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×6
  • 8775000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×3
  • 8795000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
  • 8875000025641
    $0.58
    WASHER 1 NOM,STEEL,FLAT - 5000025641×2
