LTN6L 50 Hz CE

LTN6LE Fuel Tank/Engine Diagram

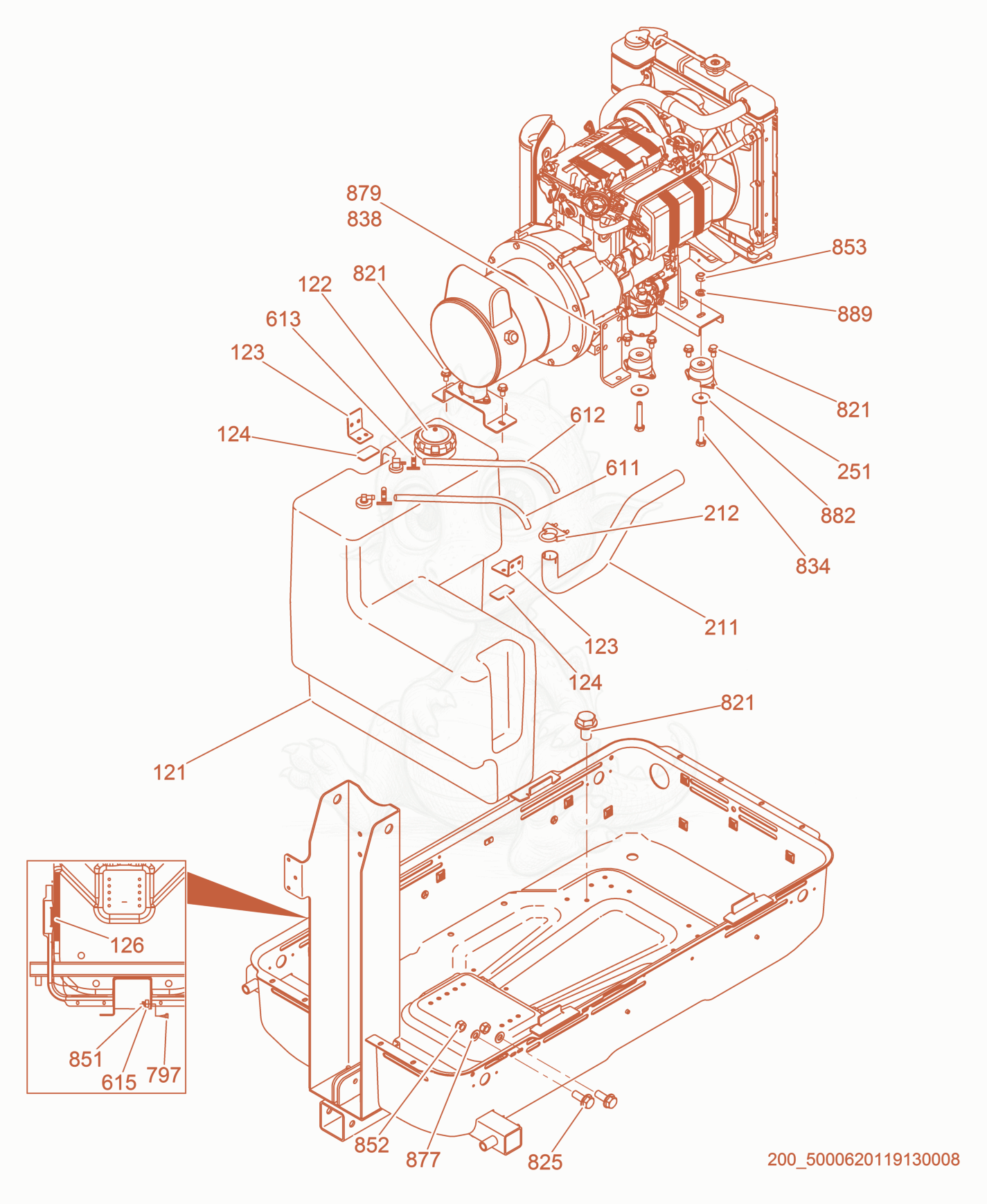

Exploded parts diagram of the Fuel Tank/Engine of a Wacker Neuson LTN6LE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1215000165120
    $486.37
    TANK-FUEL,PLASTIC - 5000165120×1
  • 1225200013529Not stocked
    Cap×1
  • 1235000165121
    $1,009.64
    BRACKET-TANK P-5000176420 - 5000165121×2
  • 1245000177081
    $20.61
    PAD-RUBBER,60 X 35 X 3 - 5000177081×2
  • 1265000177423
    $73.65
    PAD-FUEL TANK SPACER - 5000177423×1
  • 2115000179169
    $473.67
    PIPE-EXHAUST,LOM - 5000179169×1
  • 2125000111081
    $2.82
    CLAMP-EXHAUST - 5000111081×1
  • 2515000157232Not stocked
    Shockmount×2
  • 6115000177644
    $11.07
    HOSE-1/4 FUEL LINE,960MM - 5000177644×1
  • 6125000182411
    $17.03
    HOSE-3/16 ,RETURN LINE,960MM - 5000182411×1
  • 6135000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 6155000177082
    $0.26
    CLAMP-TUBE .50 - 5000177082×1
  • 7975000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 8215000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×5
  • 8255000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8275000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
  • 8345000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×2
  • 8385000012368
    $0.52
    SCREW M12 X 20 HX.HD. - 5000012368×1
  • 8515000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 8525000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 8535000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×2
  • 8775000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 8795000010620
    $0.26
    WASHER B13 FLAT - 5000010620×1
  • 8825000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×2
  • 8895000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
