LTN8K Wiring Harness/Control Panel Diagram

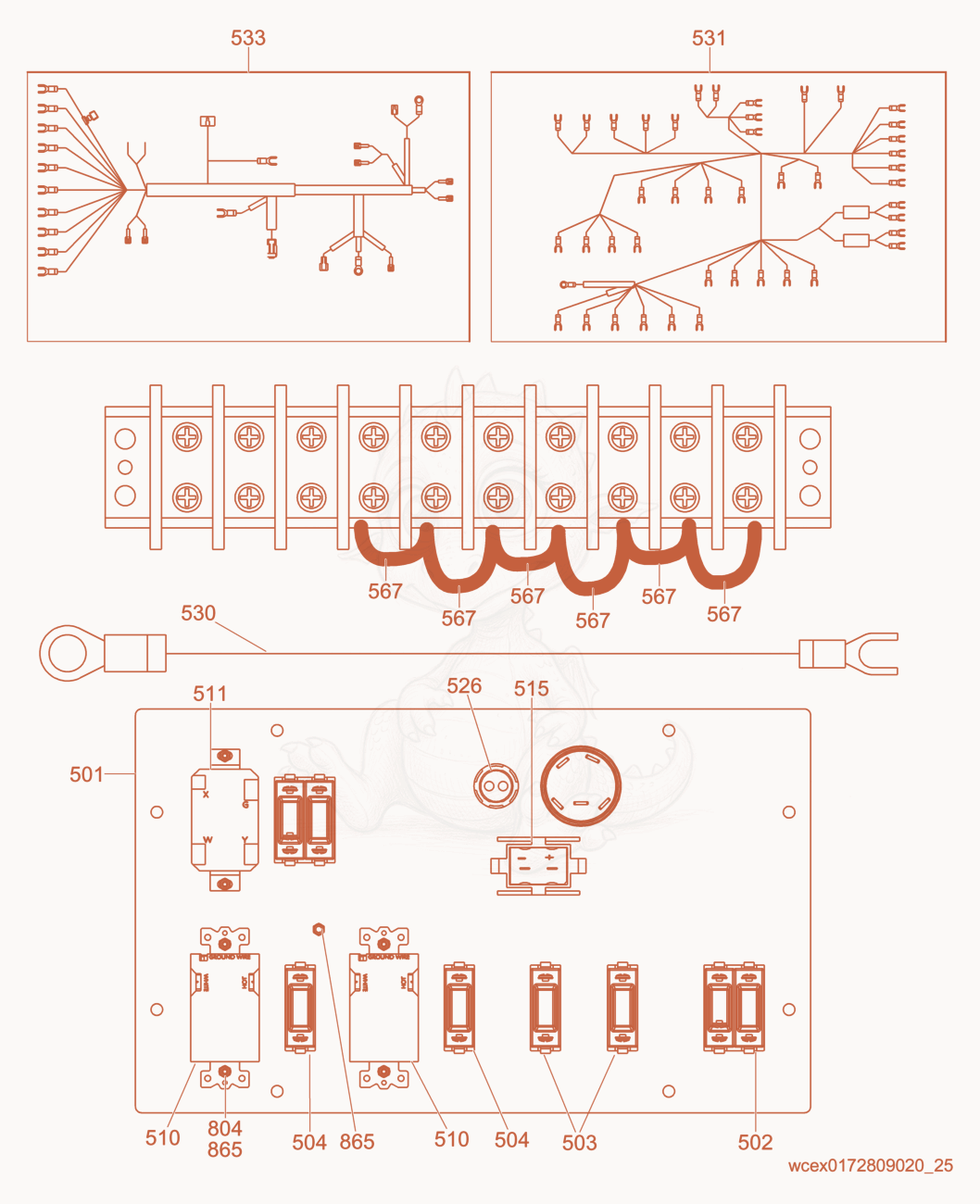

Exploded parts diagram of the Wiring Harness/Control Panel of a Wacker Neuson LTN8K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5015000180091
    $148.18
    PANEL-CONTROL,8KW,120/240V,30A - 5000180091×1
  • 5025000182413
    $46.24
    BREAKER-MAIN,33A - 5000182413×1
  • 5035000172337
    $51.54
    BREAKER-LIGHT,30 AMP - 5000172337×2
  • 5045000172338
    $125.71
    BREAKER-OUTLET,20 AMP - 5000172338×2
  • 5055000182414
    $37.93
    BREAKER-RECEPTACLE,30A - 5000182414×1
  • 5105000089849
    $145.30
    KIT-GFI RECEPTACLE - 5000089849×1
  • 5115000088827
    $41.94
    RECEPTACLE-L14-30, 30 AMP - 5000088827×1
  • 5155000117280
    $28.83
    hour meter - 5000117280×1
  • 5305000177337
    $5.60
    WIRING HARNESS-PANEL GROUND - 5000177337×1
  • 5315000181559
    $650.87
    WIRING HRNS-CTRL PNL,KUBTA 8KW - 5000181559×1
  • 5335000179268
    $1,685.60
    WIRING HARNESS-KUBOTA ENGINE - 5000179268×1
  • 5645000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×1
  • 5675000176464
    $1.35
    STRAP-JUMPER,CLOSED - 5000176464×6
  • 8045000088174
    $0.18
    SCREW M4 X 12 - 5000088174×4
  • 8655000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×5
