LTV4L

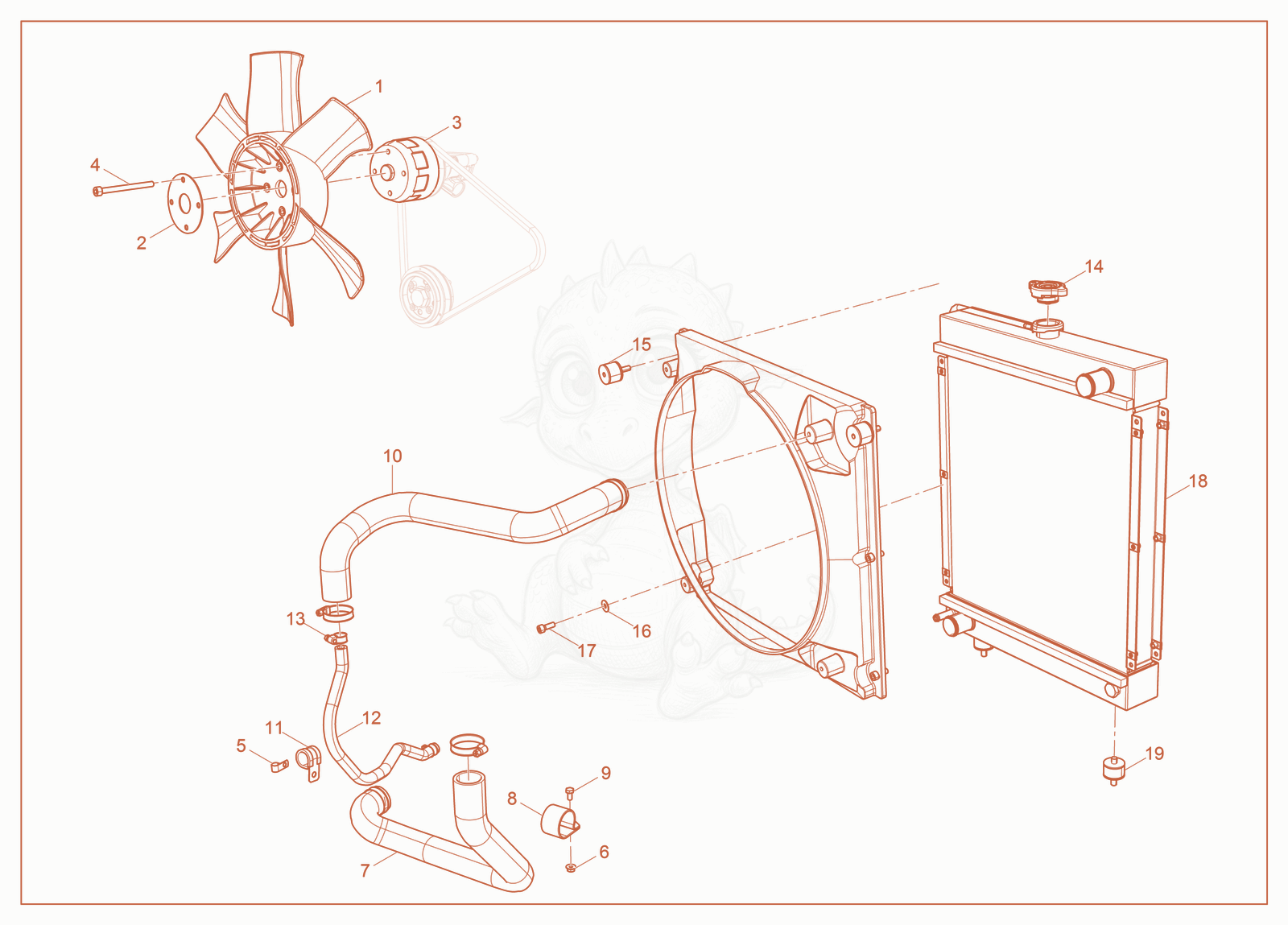

LTV4L Radiator cpl. Diagram
- FAN-BLOWER,DIAM.350 - 5000155722×1
- PLATE-FAN - 5000159323×1
- FLANGE-FAN H=MM 53,5 - 5000160202×1
- SCREW M6 X 1 X 70MM - 5000207993×4
- CLAMP - 5200009522×1
- Nut - 5000084232×1
- HOSE-RADIATOR TO W.PUMP - 5000155732×1
- CLAMP, DIA. 38 - 5000215703×1
- SCREW M6 X 12 - 5000084158×3
- HOSE-THERMOSTAT-W.COOLER - 5000155725×1
- CLAMP, DIA. 20 - 5000215702×1
- PIPE-WATER - 5000160355×1
- clamp - 5000160201×1
- CAP - 5200003931×1
- SHOCKMOUNT-RADIATOR DIA.25 - 5000155727×2
- WASHER 6 X 16 - 5000203363×3
- SCREW M6 X 1 X 16 - 5000159467×3
- 185200015533Not stockedRadiator×1
- SHOCKMOUNT-RADIATOR DIA.30 - 5000155728×2
