LTV4L

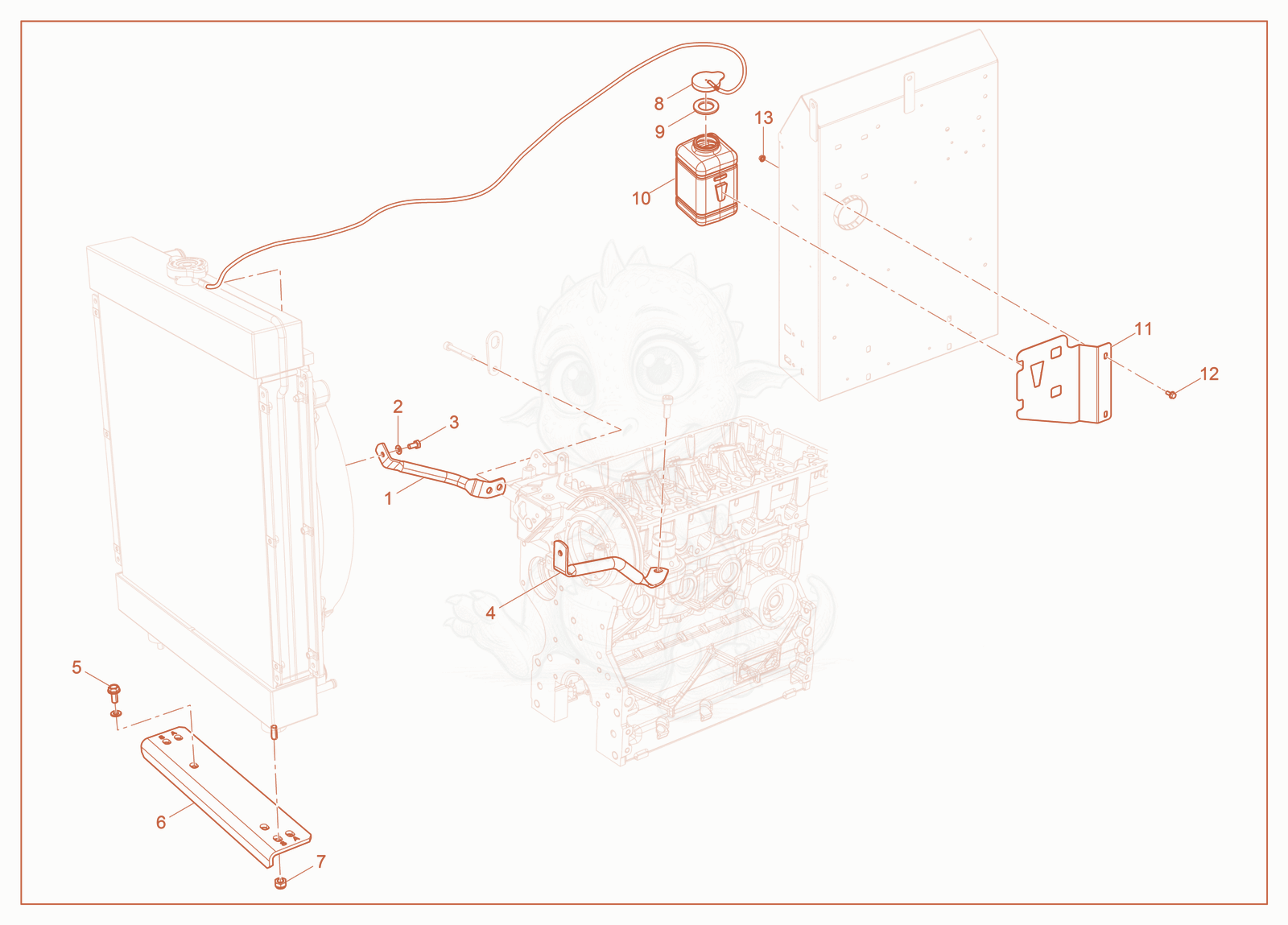

LTV4L Radiator mount Diagram
- brace - 5000160353×1
- Washer - 5000082291×2
- SCREW M6 X 12 - 5000084158×3
- Brace - 5000213454×1
- BOLT M8 - 5000215693×2
- MOUNT - 5000213463×1
- nut M8 - 5000160198×2
- CAP-BOTTLE,OVERFLOW - 5000165144×1
- GASKET-CAP,OVERFLOW BOTTLE - 5000183432×1
- BOTTLE-OVERFLOW - 5000165143×1
- Bracket-Overflow Bottle P-5000112007 - 5200001221×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
