LTV4L

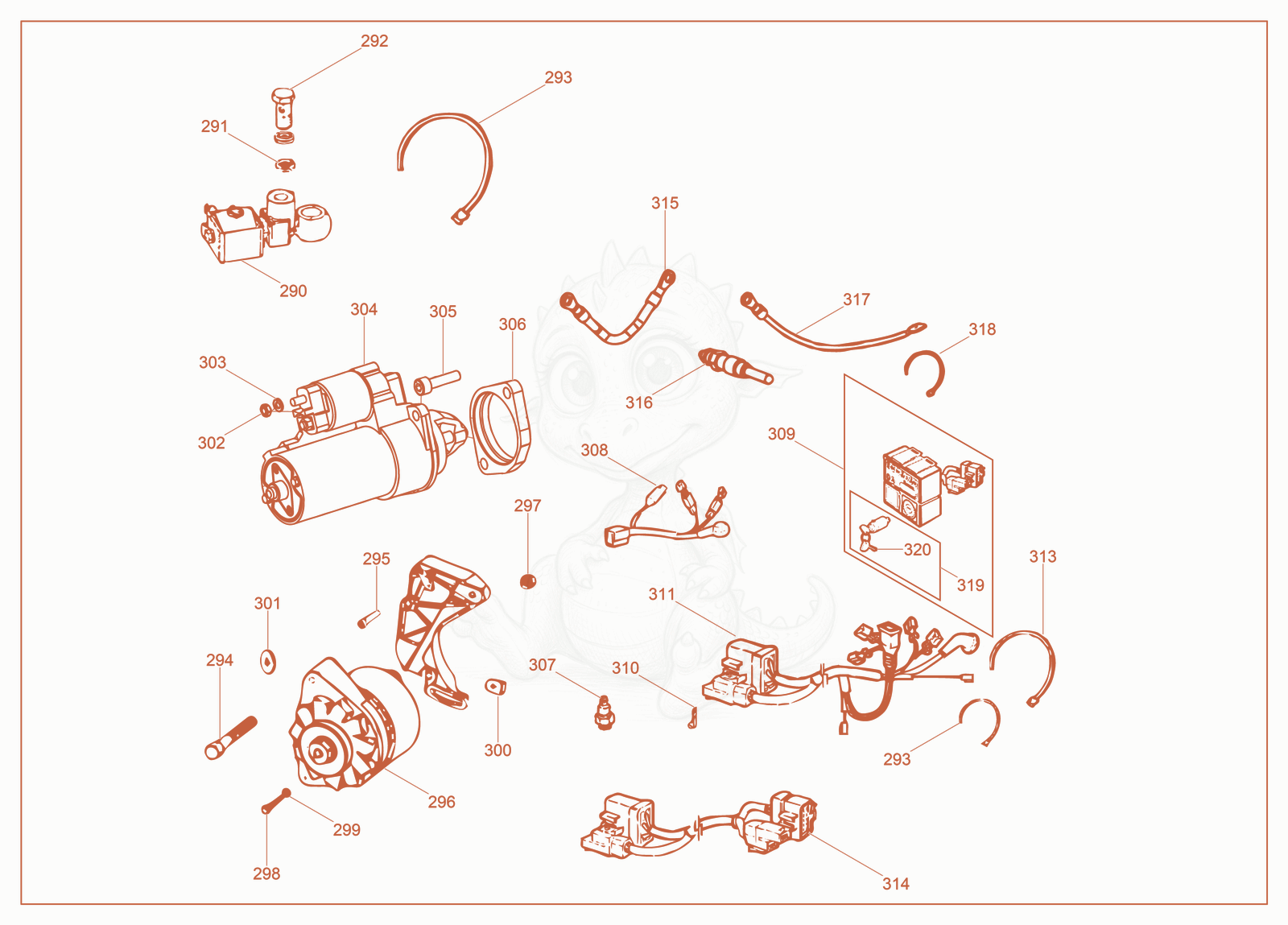

LTV4L Electrical Components Diagram
- VALVE-ELECTRO,FUEL SHUT-OFF - 5000155711×1
- Copper washer D14/10.2 1 - 5000082183×2
- FITTING-BANJO BOLT - 5000082105×1
- COLLAR - 5000215486×3
- BOLT M10 X 75 - 5200002696×1
- SCREW M8 X 1.25 X 30 - 5000159476×3
- ALTERNATOR-12V,33-40A - 5200002694×1
- NUT M10 - 5000083011×1
- BOLT M8 X 45 - 5200002695×1
- Washer - 5000082293×1
- Clamp - 5100026417×1
- Disc 10,5 - 5100026418×1
- NUT-HEX - 5000215493×1
- WASHER - 5000082288×1
- MOTOR-STARTING - 5000160374×1
- flange - 5000206968×1
- BOLT-ALLEN HEAD - 5000161079×2
- SWITCH-PRESS OIL,20PSI,1.4 BAR - 5000155751×1
- WIRE-ALTERNATOR CONNECTION - 5100029705×1
- PANEL ASSEMBLY - 5200006800×1
- clamp - 5000203709×1
- WIRING HARNESS - 5100029706×1
- CABLE TIE - 5200009531×2
- WIRE-EXTENSION HARNESS - 5100029707×1
- WIRE-GLOW PLUG - 5000159259×2
- GLOW PLUG 12V - 5000155748×3
- WIRE-GLOW PLUG - 5000160194×1
- COLLAR - 5200009532×1
- Switch - 5000165577×1
- KEY - 5000165578×1
