LTV4L

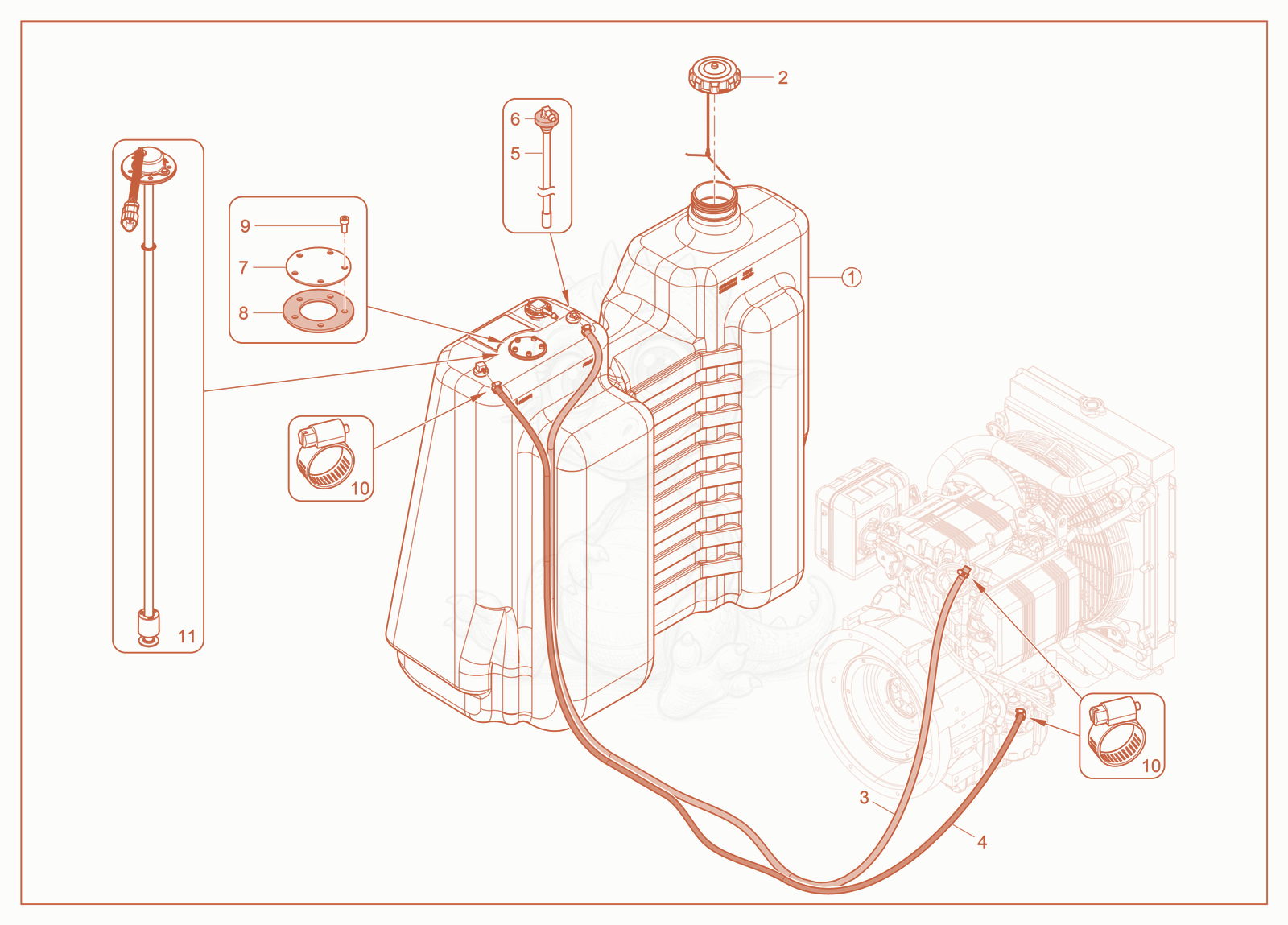

LTV4L Fuel tank SP Diagram

Exploded parts diagram of the Fuel tank SP of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100053503
    $492.32
    TANK FUEL LTV - 5100053503×1
  • 25200012367Not stocked
    Fuel cap×1
  • 35100055843
    $12.25
    HOSE FUEL 1/4" - 5100055843×1
  • 45100055842
    $11.09
    HOSE FUEL 3/16" - 5100055842×1
  • 51000433132
    $4.39
    FITTING FUEL ASSY 1/4 - 1000433132×1
  • 61000340126
    $0.51
    GROMMET - 1000340126×2
  • 75100053817
    $101.01
    PLATE FUEL - 5100053817×1
  • 85100053818
    $5.42
    GASKET FUEL - 5100053818×1
  • 95000043307
    $0.13
    SCREW M5 X 12 SOC.HD. - 5000043307×5
  • 105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×3
  • 115100031313
    $294.26
    SENSOR-FUEL,30" - 5100031313×1
