LTV4L

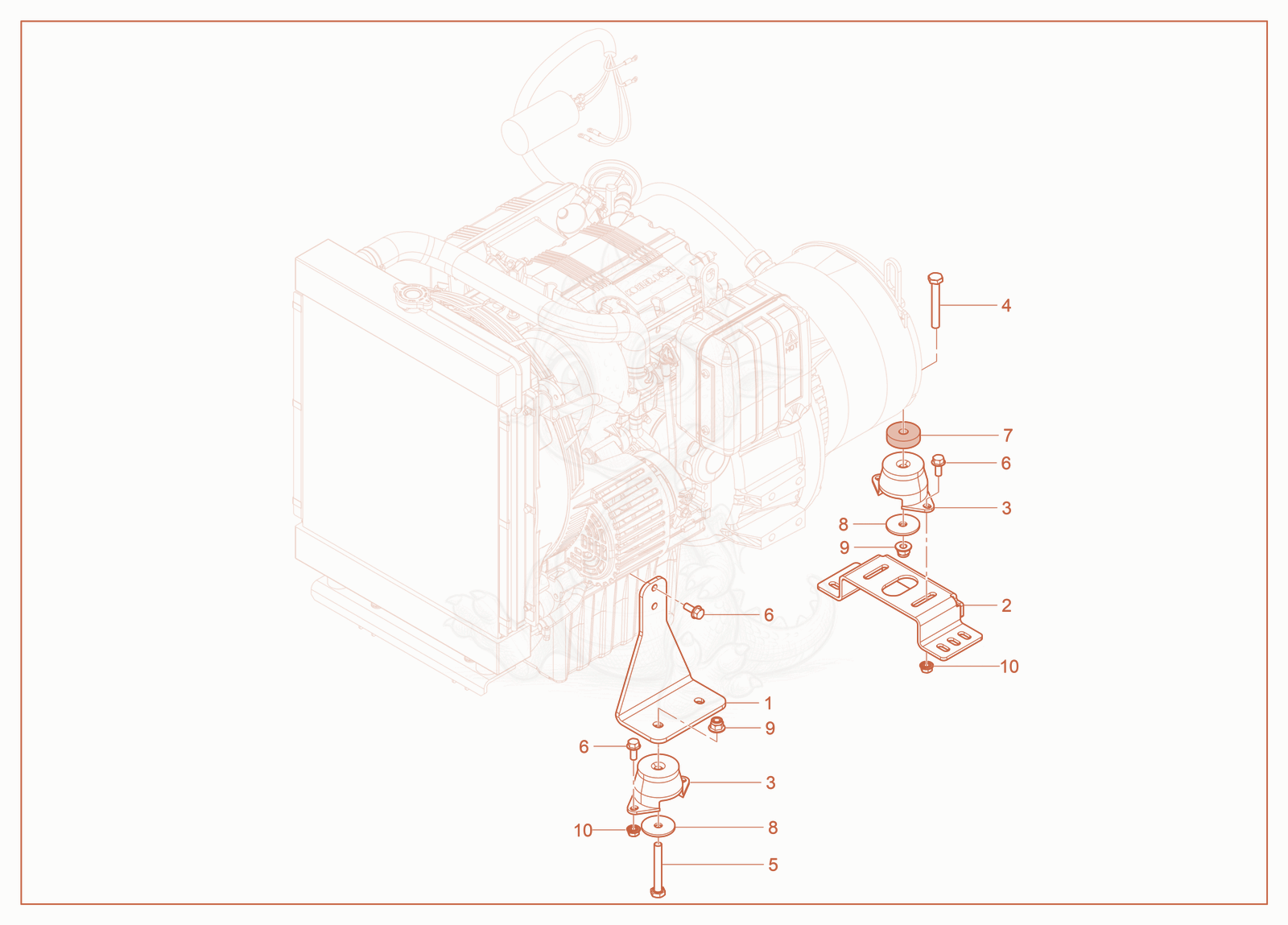

LTV4L Engine Bedding Diagram

Exploded parts diagram of the Engine Bedding of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100054238
    $77.97
    ENGINE BRACKET KDW702 - 5100054238×2
  • 25100026875
    $45.24
    BRACKET GENERATOR MOUNT - 5100026875×1
  • 35000177264
    $20.57
    SHOCKMOUNT RUBBER - 5000177264×3
  • 45000011325
    $1.01
    SCREW M10 X 75 HX.HD. - 5000011325×1
  • 55000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×2
  • 65000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×10
  • 75100058271Not stocked
    SPACER-12MM X 44.5MM OD X 12MM ID×1
  • 85000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×2
  • 95100046317
    $0.37
    NUT-M10-HEX.FLG.NYLOC-8-ZNC - 5100046317×2
  • 105000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×6
