LTV4L

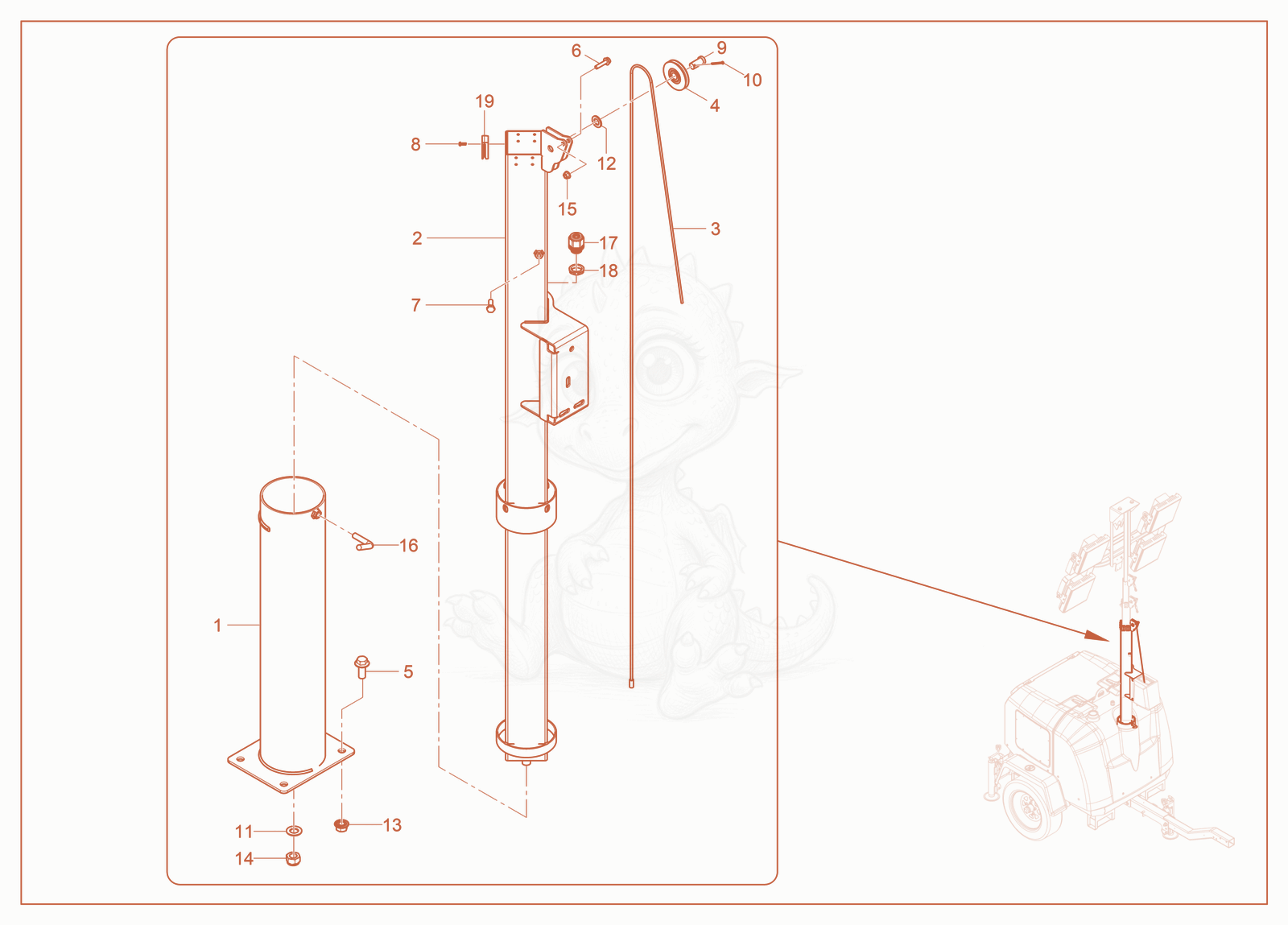

LTV4L Tower-Base Diagram

Exploded parts diagram of the Tower-Base of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100026138
    $638.50
    RING-PIVOT Weldment, LTV P-5000112007 - 5100026138×1
  • 25100026246
    $965.81
    Tube-Mast Section,4",LTV - 5100026246×1
  • 35100026648
    $16.92
    Cable-Assembly,LTV,3/16 in,Winch - 5100026648×1
  • 45200018470Not stocked
    Pulley×1
  • 55000155246
    $4.27
    SCREW M16X40-10.9 HX SR FL MZP - 5000155246×4
  • 65000180210
    $0.57
    SCREW M8X35 HX FL HD,BL ZN 8.8 - 5000180210×1
  • 75000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×1
  • 85100026894
    $0.63
    Screw-M4.5 X 14, Delta PT Self Tapping - 5100026894×16
  • 95200018478Not stocked
    Pin, clevis×1
  • 105000116751
    $0.28
    PIN-COTTER 1/8 X 1-1/2 - 5000116751×1
  • 115000010616
    $2.02
    WASHER B21 FLAT - 5000010616×1
  • 125000010618
    $0.28
    WASHER B17 FLAT - 5000010618×1
  • 135000155245
    $0.50
    NUT M16-10.9 HX SER FLG MCH ZP - 5000155245×4
  • 145000017088
    $1.10
    NUT-LOCK M20 HEX. - 5000017088×1
  • 151000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×1
  • 165100037981
    $16.02
    Lock-Tower - 5100037981×1
  • 175000165222
    $3.63
    CONNECTOR-CORD GRIP 3/4 NPT - 5000165222×1
  • 185000176419
    $0.32
    NUT-LOCK 3/4 NPT,STEEL - 5000176419×1
