LTV4L

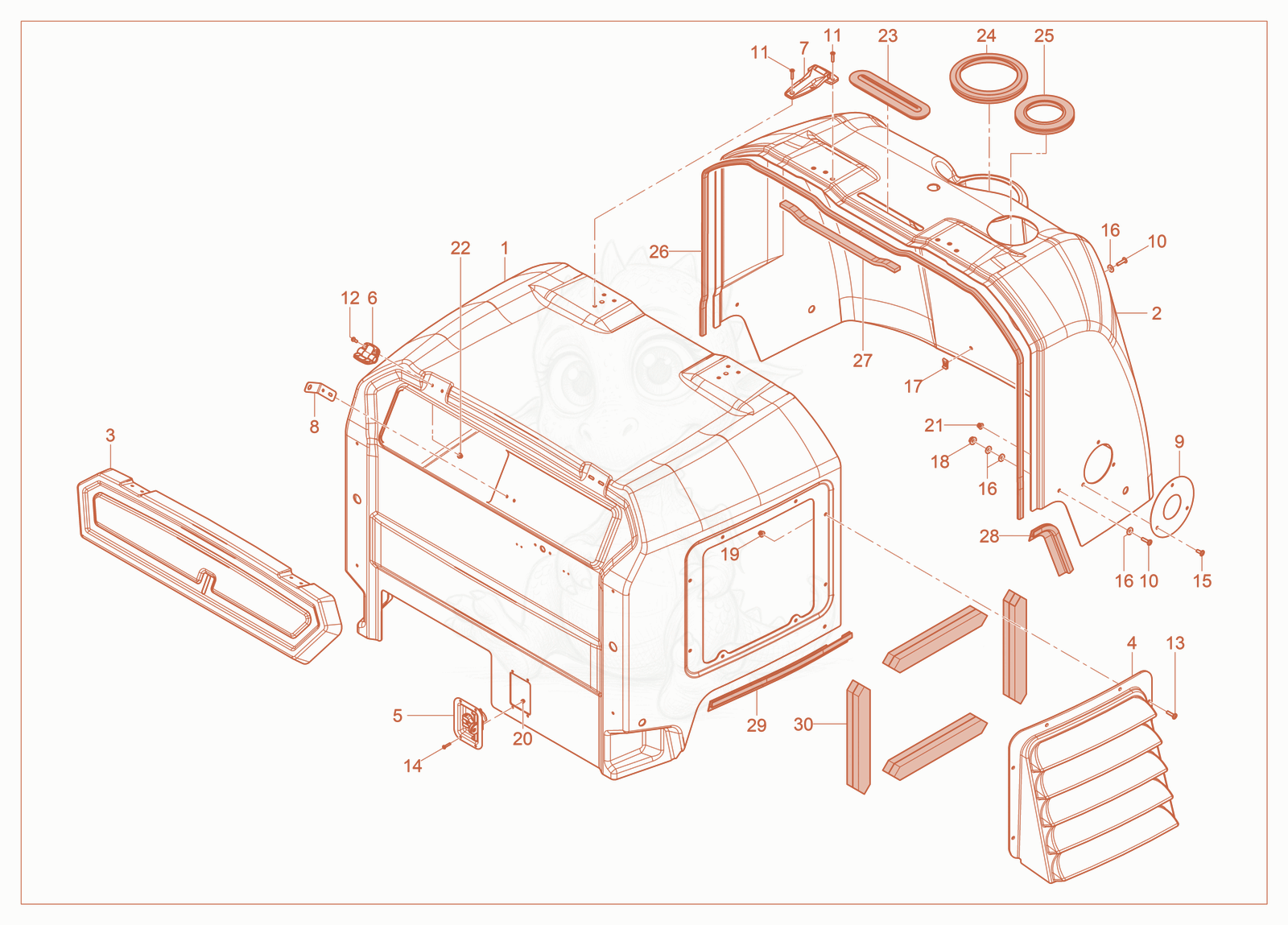

LTV4L Enclosure Panels - Containment Diagram

Exploded parts diagram of the Enclosure Panels - Containment of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100025867
    $1,425.62
    HOOD-BACK, GRAY TRAILERED - 5100025867×1
  • 15100026680
    $523.18
    HOOD-BACK, GREEN TRAILERED - 5100026680×1
  • 25100036379
    $382.67
    HOOD-FRONT, GRAY TRAILERED CONTAINMENT - 5100036379×1
  • 25100036481
    $195.06
    HOOD-FRONT, GREEN TRAILERED CONTAINMENT - 5100036481×1
  • 35100026475
    $51.39
    COVER CONTROL - 5100026475×1
  • 45100026940
    $103.11
    HOOD VENT - 5100026940×1
  • 55100028661
    $47.09
    LATCH DOOR CAM RECESSED - 5100028661×1
  • 65100031293
    $36.42
    HINGE CONTROL COVER - 5100031293×2
  • 75100026803
    $26.04
    HINGE ENCLOSURE - 5100026803×2
  • 85100026476
    $54.12
    HASP CONTROL COVER - 5100026476×1
  • 95100031580
    $56.01
    PLATE EXHAUST COVER - 5100031580×1
  • 105100030460
    $0.50
    SCREW M6 X 25,SBHD,FLGE 10.9,BC - 5100030460×6
  • 115100029410
    $0.35
    Screw M5 x 25,Socket Flat Hd BN21,12.9 - 5100029410×12
  • 125100054425
    $0.43
    SCREW-M5x16-SOC.BTN-10.9-BK.ZNC - 5100054425×8
  • 135000177093
    $0.32
    SCREW M6X16,SBHD,FLGE 10.9,BC - 5000177093×6
  • 145000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×4
  • 155000177093
    $0.32
    SCREW M6X16,SBHD,FLGE 10.9,BC - 5000177093×3
  • 165000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×6
  • 175000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×2
  • 185000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
  • 195200012212Not stocked
    Locknut×2
  • 205000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 215200012212Not stocked
    Locknut×3
  • 221000342931Not stocked
    Flange nut×8
  • 235100027539
    $11.86
    SEAL-LIP, LTV CONTAINMENT LIFT EYE - 5100027539×1
  • 245100027538
    $16.07
    SEAL-LIP, LTV CONTAINMENT MAST - 5100027538×1
  • 255100027537
    $11.86
    SEAL-LIP, LTV CONTAINMENT FILLER NECK - 5100027537×1
  • 265100054123
    $9.79
    MOLDING ALUM TRIM 2134MM - 5100054123×1
  • 275100054122
    $9.76
    GASKET NEOPRENE 3/8 X 3/4 CC 1219MM - 5100054122×1
  • 285100054125
    $6.61
    SEAL TRIM EDGE LOCK FLAG 250MM - 5100054125×2
  • 295100054124
    $8.79
    SEAL TRIM EDGE LOCK FLAG 452MM - 5100054124×2
  • 305100030092
    $8.58
    SEAL RADIATOR REAR FRONT - 5100030092×4
