LTV4L

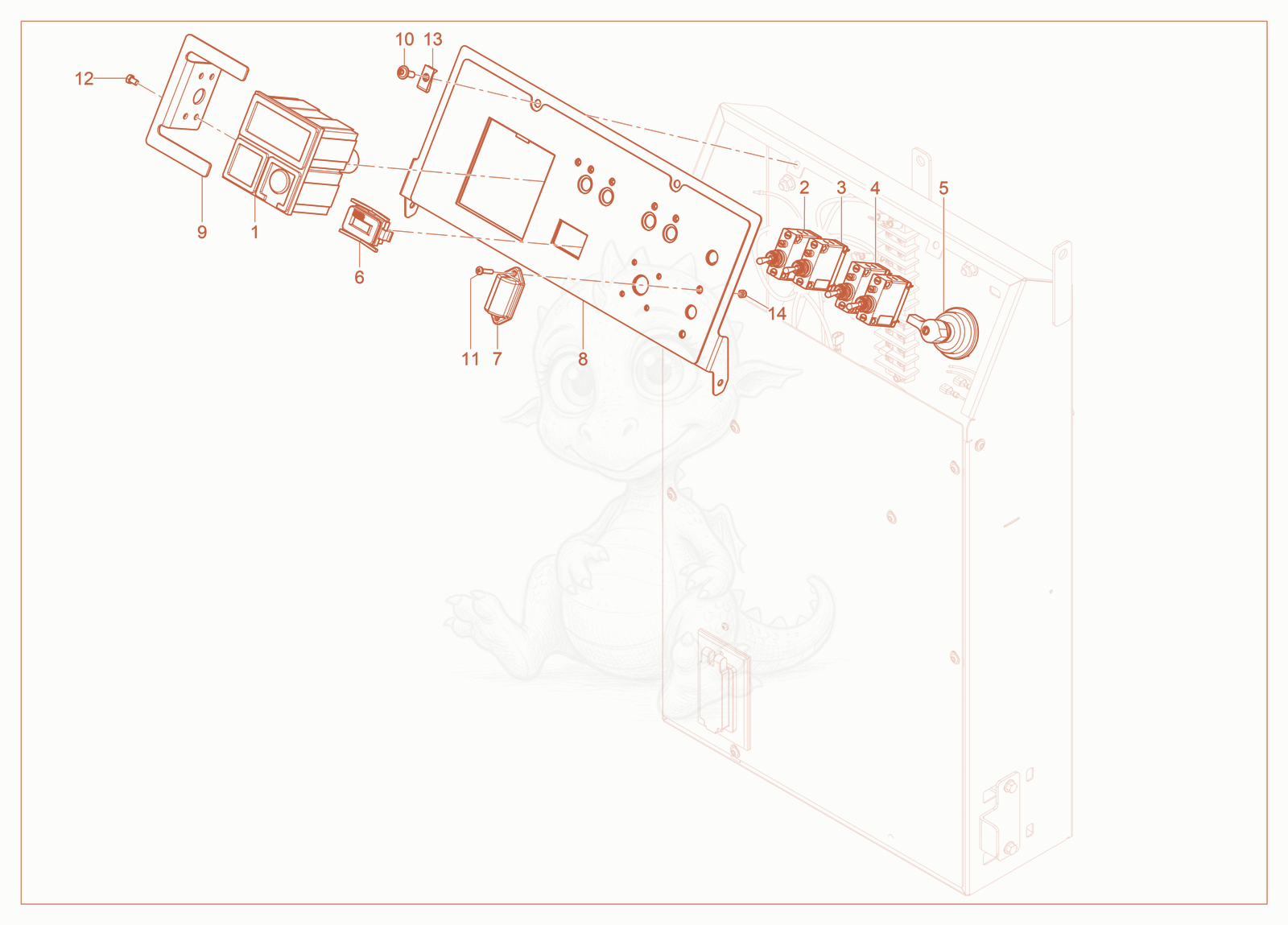

LTV4L Control Panel Diagram

Exploded parts diagram of the Control Panel of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200006800
    $352.54
    PANEL ASSEMBLY - 5200006800×1
  • 25100056732
    $323.32
    BREAKER-CIRCUIT,1P,35A, SEALED - 5100056732×1
  • 35100029712
    $119.25
    BREAKER-CIRCUIT,1P,20A, SEALED - 5100029712×1
  • 45100048278
    $97.34
    BREAKER CIRCUIT 1P 10A SEALED - 5100048278×2
  • 55000162452
    $313.98
    SWITCH-ROTARY - 5000162452×1
  • 65000117280
    $28.83
    hour meter - 5000117280×1
  • 75100054173
    $14.08
    LIGHT LICENSE PLATE AUX RCPT - 5100054173×1
  • 85100029208
    $946.53
    PANEL CONTROL LTV6L STD - 5100029208×1
  • 95100036603
    $17.09
    Bracket-Controller, Kohler P-5000112007 - 5100036603×1
  • 105000177093
    $0.32
    SCREW M6X16,SBHD,FLGE 10.9,BC - 5000177093×4
  • 115000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 125100017422
    $0.09
    SCREW M5 X 8 HX.HD. - 5100017422×2
  • 135000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×2
