LTV4L

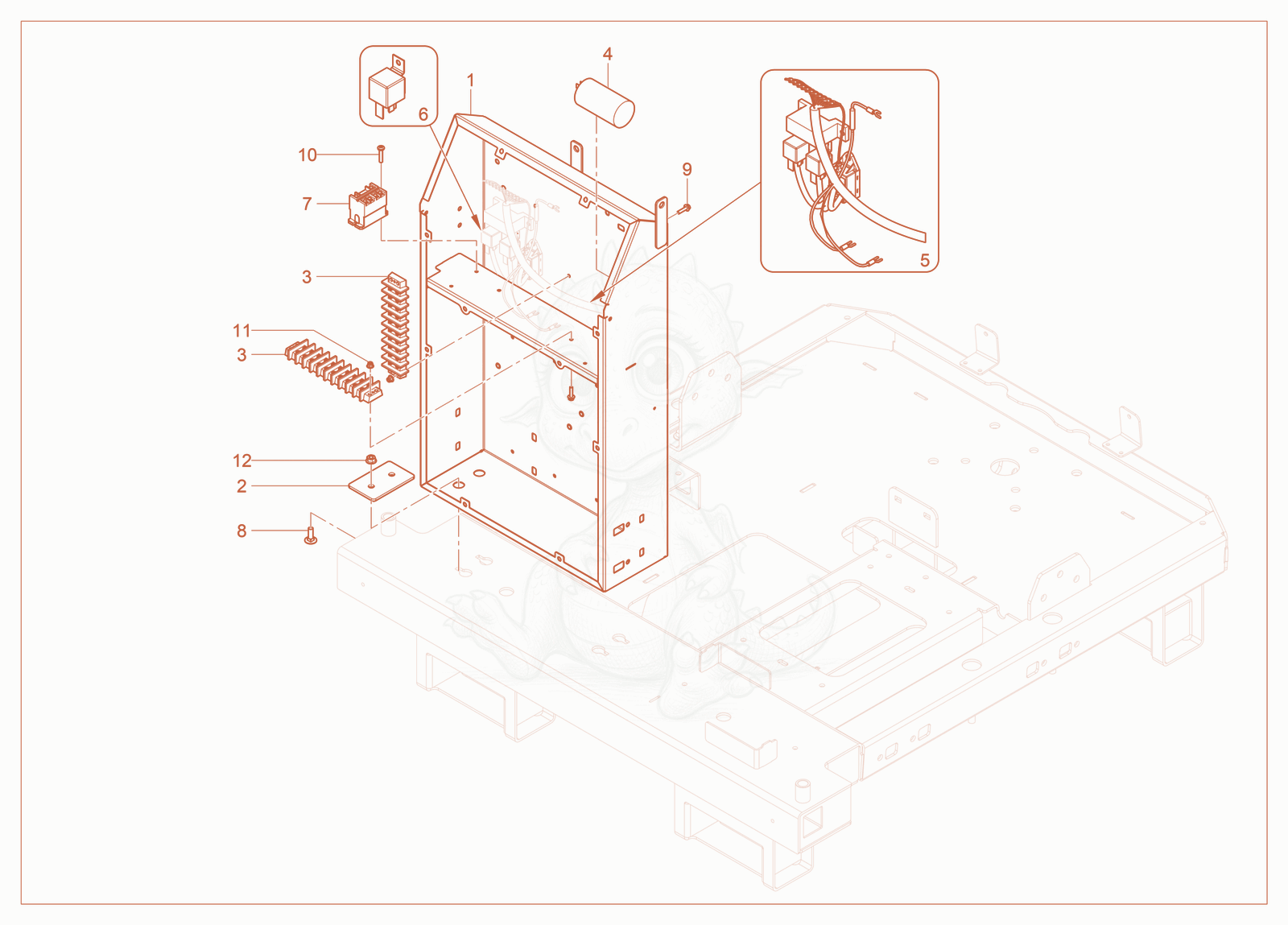

LTV4L Control Box Diagram

Exploded parts diagram of the Control Box of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100026689
    $288.30
    BOX CONTROL WELDMENT LTV - 5100026689×1
  • 25100026722
    $11.78
    PLATE CONTROL BOX MTG PAD - 5100026722×2
  • 35000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×2
  • 45000158577
    $116.06
    CAPACITOR-18 MFD W/TIE WRAP - 5000158577×1
  • 55100029321
    $1,096.19
    WIRE HARNESS- LTV CONTROLLER-KOHLER MOD - 5100029321×1
  • 65100038841
    $16.30
    RELAY-SONG CHUAN 897, SPNO,70A,12VDC - 5100038841×2
  • 75200018343Not stocked
    Relay×2
  • 85000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×4
  • 95000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
  • 105000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 115000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 125100029257
    $70.64
    WIRE HARNESS- LTV AUTO START MODULE - 5100029257×1
