LTV4L

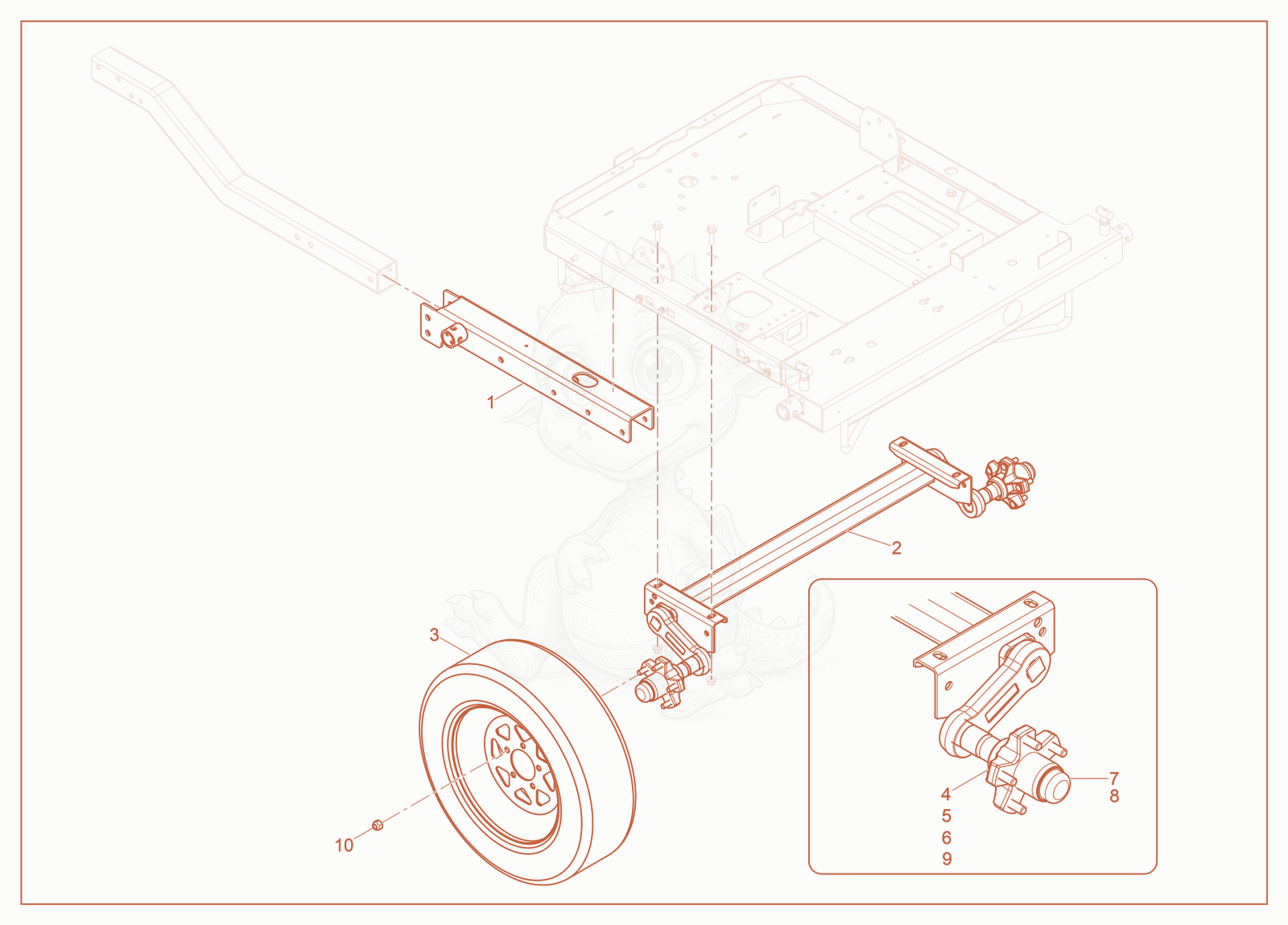

LTV4L Trailer Frame with No Brakes Diagram

Exploded parts diagram of the Trailer Frame with No Brakes of a Wacker Neuson LTV4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100026569
    $271.17
    CHANNEL-FOLD TONGUE Wld,LTV P-5000112007 - 5100026569×1
  • 25100026755
    $502.02
    Axle-LTV - 5100026755×1
  • 35000180505
    $110.19
    WHEEL-RIM 13 - 5000180505×2
  • 45000182055
    $23.13
    BEARING-CONE,OUTER - 5000182055×4
  • 55200003703
    $5.25
    Nut-spindle - 5200003703×2
  • 65000183887
    $4.50
    CUP-GREASE - 5000183887×2
  • 75100039755
    $4.24
    SEAL-GREASE - 5100039755×2
  • 85100039754
    $185.87
    HUB-PLAIN - 5100039754×2
  • 95100039958
    $3.91
    STUD-PRESS IN, 1/2-20 - 5100039958×10
  • 105000172445Not stocked
    Nut×10
