LTV4L

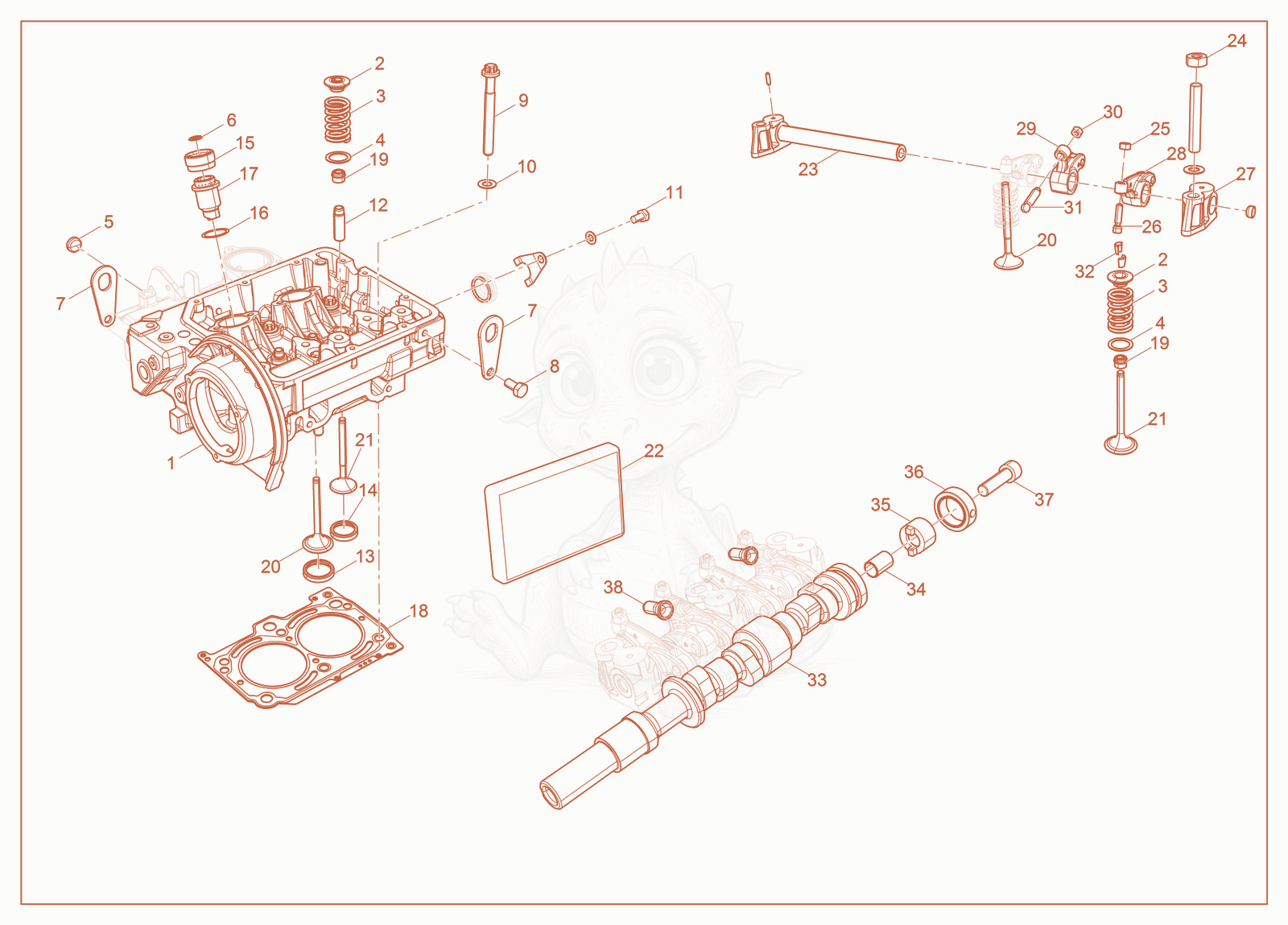

LTV4L Cylinder Head Diagram
- Cylinder Head cpl. - 5100026381×1
- SPRING-RETAINER - 5000159328×1
- SPRING-VALVE - 5000160373×4
- washer - 5000159351×4
- PLUG-EXPANSION 18mm - 5000159449×1
- spark arrester - 5000159318×2
- BRACE-LIFTING - 5000215524×2
- SCREW M8 X 16 - 5000084156×1
- SCREW-FLANGE - 5000217828×6
- washer - 5000159350×6
- BOLT M8 X 14 - 5000159254×1
- GUIDE-VALVE - 5000159303×4
- VALVE GUIDE-INTAKE - 5000160381×2
- VALVE GUIDE-EXHAUST - 5000160382×2
- nut - 5000159285×2
- Spacer - 5000215494×6
- BOWL-PRECOMBUSTION CHAMBER - 5000160380×2
- Cylinder head gasket - 5100026384×1
- SEAL-GUIDE - 5000159297×1
- VALVE-EXHAUST - 5000160392×1
- VALVE-INTAKE - 5000160390×1
- 225200015510Not stockedGasket set cylinder head×1
- NUT M10 - 5000083011×4
- Rod - 5100026394×1
- nut - 5000159272×12
- screw - 5000159482×6
- SHAFT SUPPORT - 5000159447×3
- rocker arm - 5000159248×3
- ROCKER-INJECTOR - 5000159249×1
- nut - 5000159275×1
- STUD - 5000159483×1
- 325200015522Not stockedLocking ring×1
- Camshaft - 5100026392×1
- Sleeve - 5000215482×1
- Cam - 5000215497×1
- Injector cam - 5000160753×1
- Screw - 5000215540×1
- ROD-PUSH - 5000159246×3
