LTV4L

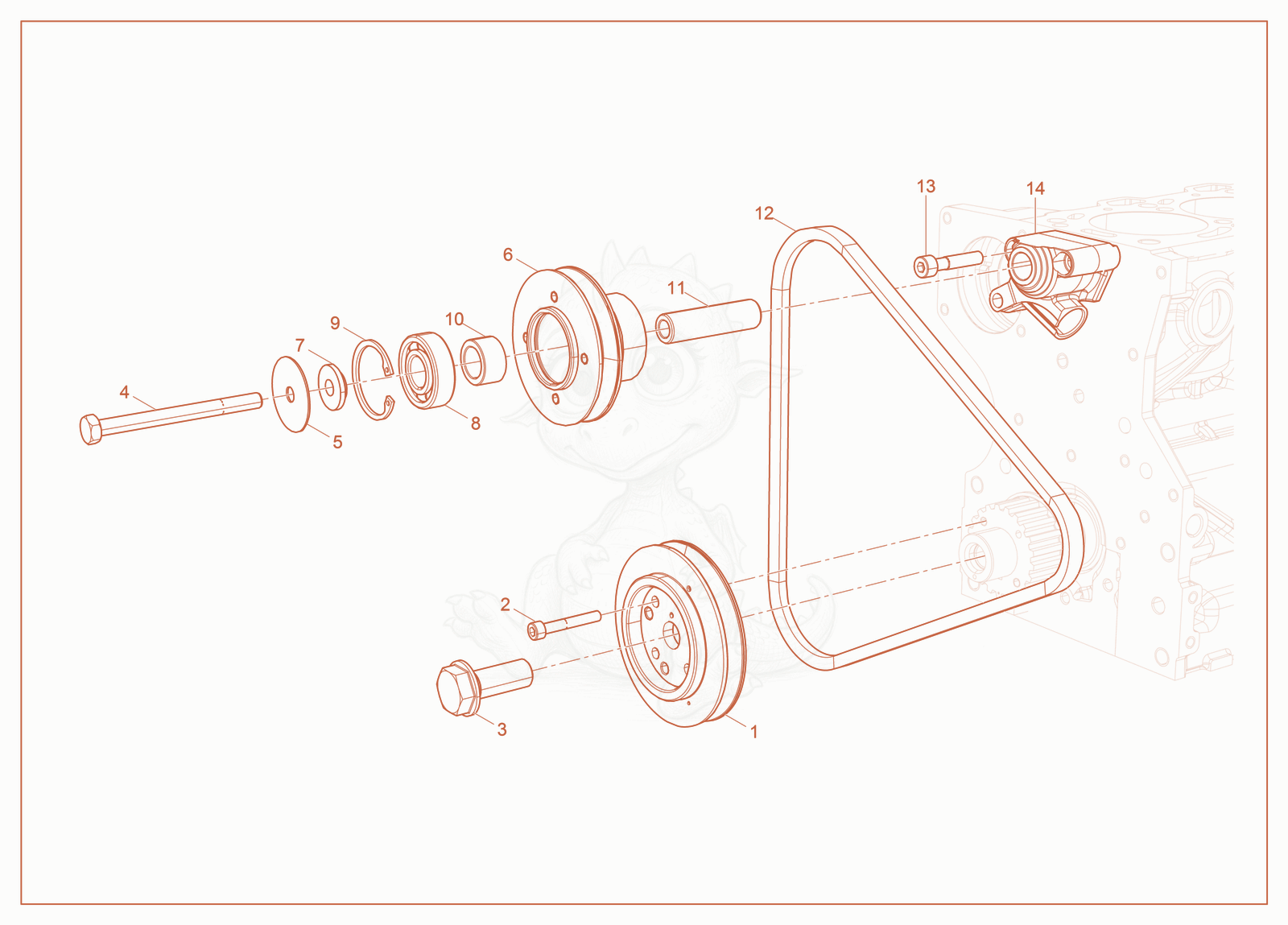

LTV4L Belt Diagram
- PULLEY-CRANKSHAFT - 5000155723×1
- SCREW M6 X 1 X 40 - 5000159475×4
- BOLT M16 X 1.5 - 5000126935×1
- BOLT M8 X 1.25 X 90 - 5000159490×1
- washer - 5000159346×1
- PULLEY-FAN - 5000155718×1
- washer - 5000159347×1
- Bearing - 5000082135×2
- retaining ring - 5000159241×2
- SPACER - 5000159277×1
- PIN-PILOT - 5000159489×1
- BELT-TIMING - 5100061563×1
- SCREW M8 X 35 - 5000083026×3
- BRACKET-FAN - 5000159448×1
