LTV4L

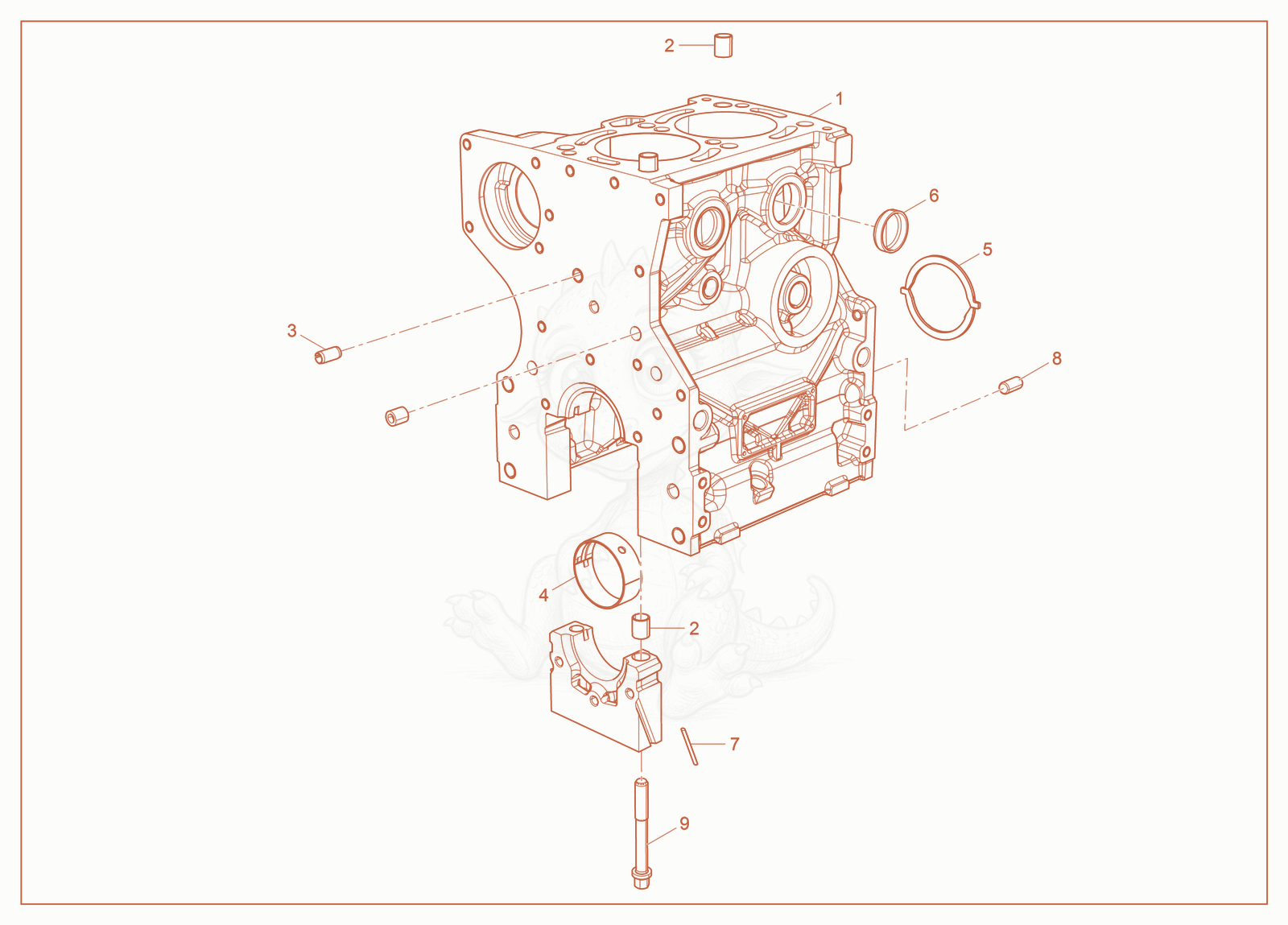

LTV4L Crankcase Assembly Diagram
- CRANKCASE - 5100061989×1
- sleeve - 5000159257×2
- Pin - 5000215522×1
- BEARING-SUPPORT (STD) - 5000155702×3
- BEARING-SUPPORT (-0.25) - 5000155703×3
- BEARING-SUPPORT (-0.50) - 5000155704×3
- BEARING STD - 5200009472×3
- WASHER-THRUST - 5000159486×2
- WASHER .10 - 5000159487×2
- WASHER .20 - 5000159488×2
- PLUG - 5000082335×2
- GASKET - 5000159288×4
- PIN-DOWEL - 5000159360×2
- screw - 5000159480×6
