GRP STD CONFIG LTV URI 6K

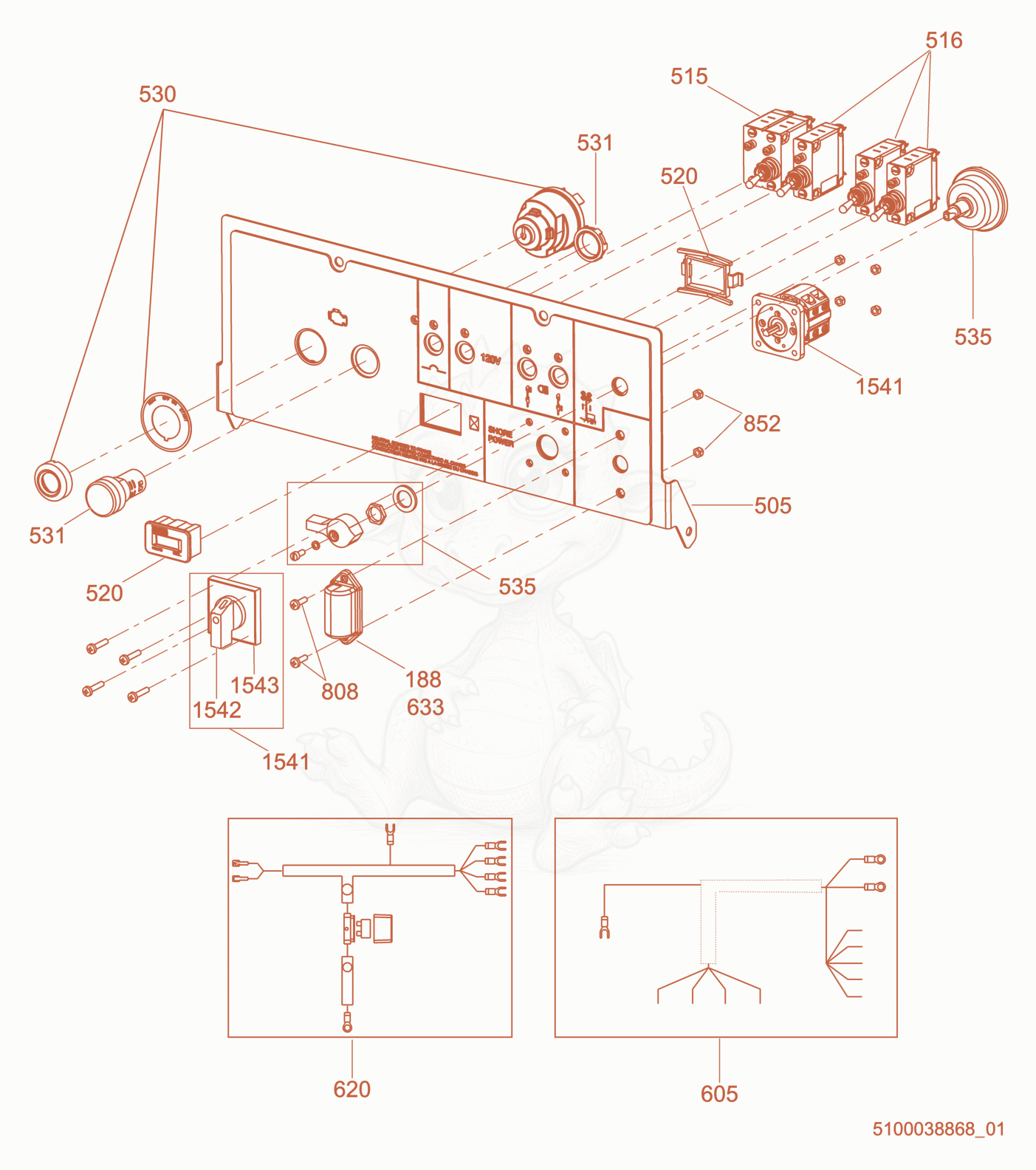

LTV6K Option-Control Panel, Power Winch/Shore Power (LED) Diagram

Exploded parts diagram of the Option-Control Panel, Power Winch/Shore Power (LED) of a Wacker Neuson LTV6K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1885100026856
    $11.39
    LIGHT-LICENSE PLATE (AUX) - 5100026856×1
  • 5055100029264
    $143.04
    PANEL CONTROL LTV6K STD - 5100029264×1
  • 5155100027467
    $159.54
    BREAKER-CIRCUIT,2P,25A, SEALED - 5100027467×1
  • 5165100029712
    $119.25
    BREAKER-CIRCUIT,1P,20A, SEALED - 5100029712×3
  • 5205000117280
    $28.83
    hour meter - 5000117280×1
  • 5305000089818
    $156.99
    SWITCH-IGNITION - 5000089818×1
  • 5315000180040
    $25.84
    LIGHT-GLOW PLUG INDICATOR - 5000180040×1
  • 5355000162452
    $313.98
    SWITCH-ROTARY - 5000162452×1
  • 6055100027766
    $87.91
    WIRE HARNESS- LTV SHORE POWER MODULE - 5100027766×1
  • 6205100027550
    $340.26
    WIRE HARNESS- LTV POWER WINCH - 5100027550×1
  • 6335100031295
    $0.45
    TERMINAL DISC FEMALE INS 250 22-18 AWG - 5100031295×2
  • 8085000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 8525000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 15415100030759
    $919.45
    SWITCH CPL. - 5100030759×1
  • 15425100030850
    $20.70
    HANDLE - 5100030850×1
  • 15435100030851
    $100.14
    PLATE, ESCUTCHEON - 5100030851×1
