LTV6K Generator/Engine Support/Exhaust Pipe Diagram

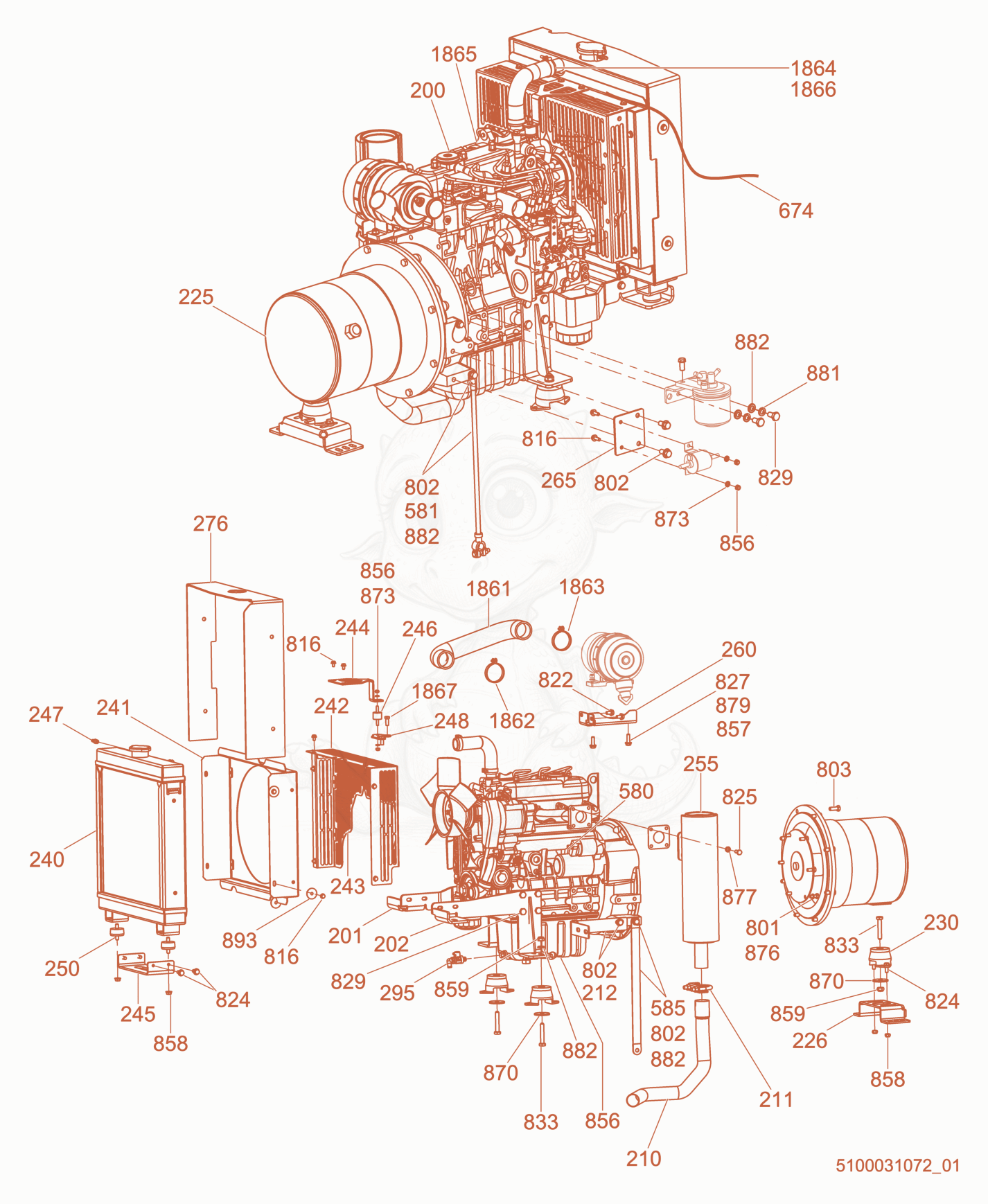

Exploded parts diagram of the Generator/Engine Support/Exhaust Pipe of a Wacker Neuson LTV6K, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

2005100029152
$18,404.41
ENGINE KUBOTA D1005 LTW LTV - 5100029152×1
2015100026738
$534.18
BRACKET ENGINE MT RT KUBOTA - 5100026738×1
2025100026739
$222.46
BRACKET ENGINE MT LT KUBOTA - 5100026739×1
2105100027211
$114.95
PIPE EXHAUST KUBOTA - 5100027211×1
2115000164412
$7.16
CLAMP-EXHAUST 1-5/8 HD - 5000164412×1
2125100030470
$57.95
BRACKET MUFFLER SUPPORT - 5100030470×1
2255000165146
$1,151.22
GENERATOR ASSEMBLY,60HZ - 5000165146×1
2265100026875
$45.24
BRACKET GENERATOR MOUNT - 5100026875×2
2305000164631
$33.56
SHOCKMOUNT-ENGINE - 5000164631×3
2405000179989
$530.63
RADIATOR KUBOTA LTN - 5000179989×1
2415000179990
$564.10
PANEL FAN SHROUD KUBOTA - 5000179990×1
2425000179992
$424.25
GUARD FAN KUBOTA RH - 5000179992×1
2435000179991
$446.50
GUARD FAN KUBOTA LH - 5000179991×1
2445000180106
$77.63
BRACKET RADIATOR UPPER - 5000180106×1
2455000179994
$240.35
BRACKET RADIATOR SUPPORT - 5000179994×1
2465000150205
$3.29
SHOCKMOUNT 25X19-60SH,FORM A - 5000150205×1
2475000168301
$1.51
HOSE BARB, 1/4 X1/8 ,BRASS - 5000168301×1
2485000180107
$17.55
MOUNT RADIATOR UPPER - 5000180107×1
2505000088535
$8.13
SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×2
2555100029246
$232.50
MUFFLER-LTVK,VERTICAL - 5100029246×1
2605000180009
$68.33
BRACKET AIR CLEANER MOUNT - 5000180009×1
2655000176149
$13.53
BRACKET FUEL PUMP LTWK - 5000176149×1
2765100030399
$19.93
DUCT-RADIATOR FLAP, LTV-K - 5100030399×1
2955100030649
$67.34
VALVE OIL DRAIN 12MM-1.25 90 DEGREE - 5100030649×1
5855000152979
$16.84
STRAP GROUND 15IN - 5000152979×1
6735000178737
$4.07
HOSE LP1300 3/16 X170 - 5000178737×1
6745000183041
$13.46
HOSE-LP1100 OVERFLOW,1/4 X450MM,PVC - 5000183041×1
8015000176100
$0.40
SCREW 5/16-18X3/4 ,HX.HD. MED - 5000176100×6
8035000025554
$0.14
SCREW 3/8-16 X 1 GR5,HX.HD. - 5000025554×8
8165000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×14
8225000157021
$0.57
SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×2
8245000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
8255000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×1
8275000155213
$0.96
SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
8295000174706
$0.51
SCREW M10 X 1.25 X 20 HX.HD - 5000174706×10
8335000011322
$0.53
SCREW M10 X 60 HX.HD. - 5000011322×3
8545000088190
$0.57
NUT M6 CLIP ZINC PLATED - 5000088190×2
8565000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×5
8575000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
8585000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
8595000010365
$0.20
NUT-LOCK M10 HEX. - 5000010365×3
8705000162258
$1.54
WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×3
8735000010624
$0.03
WASHER B6.4 FLAT - 5000010624×4
8765000010624
$0.03
WASHER B6.4 FLAT - 5000010624×6
8775000012397
$0.10
WASHER-LOCK B8 - 5000012397×4
8795000010374
$0.22
WASHER B8.4 FLAT - 5000010374×2
8825000010621
$0.13
WASHER B10.5 FLAT - 5000010621×4
8885000010373
$0.03
WASHER B6.4 FLAT - 5000010373×1
18615200007361
$120.88
Hose-Air Intake - 5200007361×1
18625200007364
$8.04
CLAMP-HOSE - 5200007364×1
18635200007363
$7.68
CLAMP-HOSE - 5200007363×1
18645000169274
$17.30
KUBOTA D1105 - UPPER RAD HOSE - 5000169274×1
18655200009012
$44.44
HOSE-RADIATOR, LOWER - 5200009012×1
18665200018111Not stocked
Hose clamp×4
18671000085230
$11.06
HEX SCREW - 1000085230×2
