LTW20Z3-V Light Tower

LTW20Z3-V Tower Coiled Cord Routing Diagram

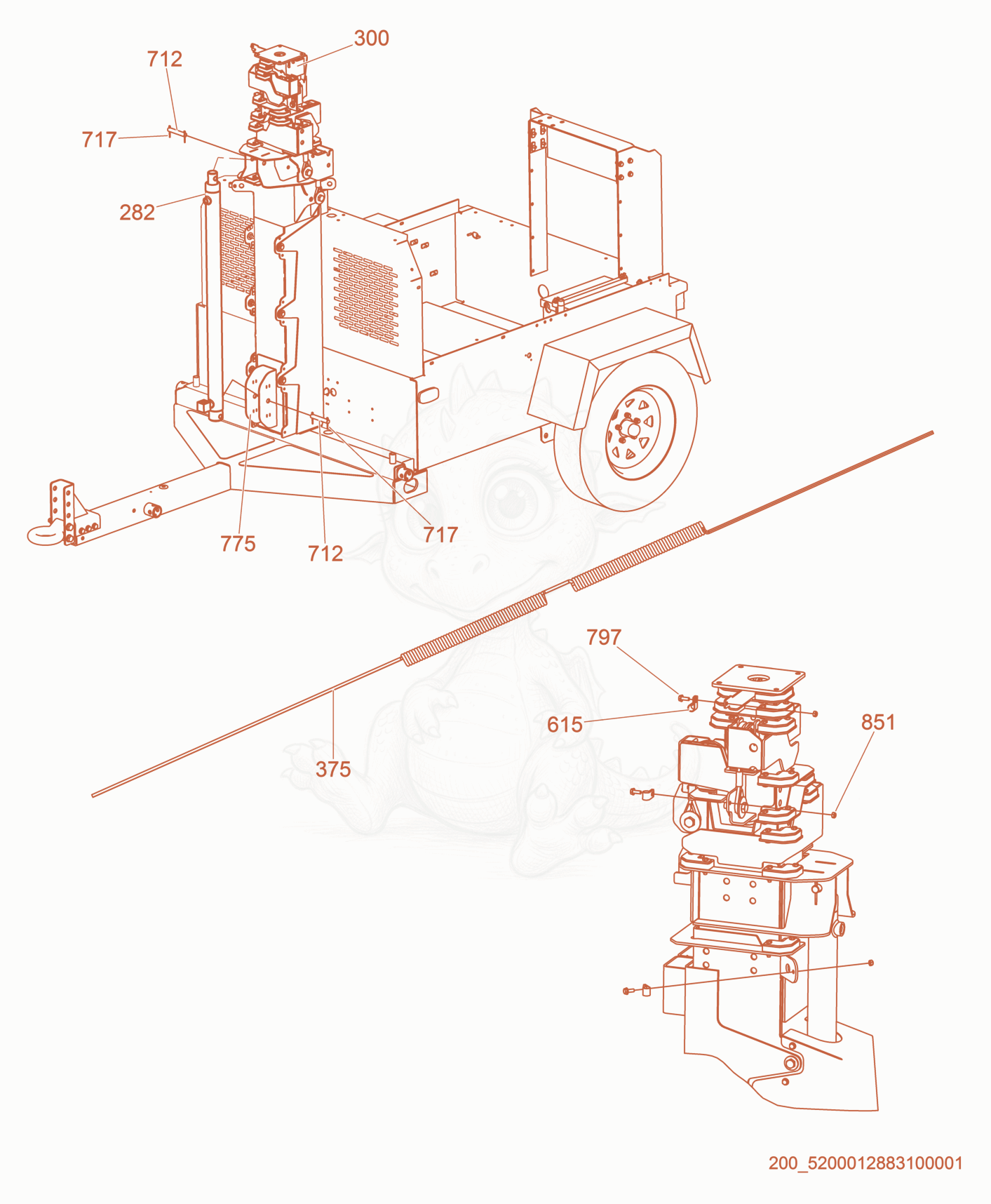

Exploded parts diagram of the Tower Coiled Cord Routing of a Wacker Neuson LTW20Z3-V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2825200002263
    $1,831.16
    Cylinder-Hydraulic,LTN-V - 5200002263×1
  • 3005200009285
    $9,651.60
    Tower Assembly,LTN-V - 5200009285×1
  • 3755200001980
    $675.10
    Cord - Coiled - 5200001980×1
  • 6155000177082
    $0.26
    CLAMP-TUBE .50 - 5000177082×3
  • 7125200018480Not stocked
    Pin, clevis×2
  • 7175000116751
    $0.28
    PIN-COTTER 1/8 X 1-1/2 - 5000116751×2
  • 7755000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×1
  • 7975000167908Not stocked
    Rivet×3
  • 8515000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×3
