LTW20Z3-V Light Tower,Custom

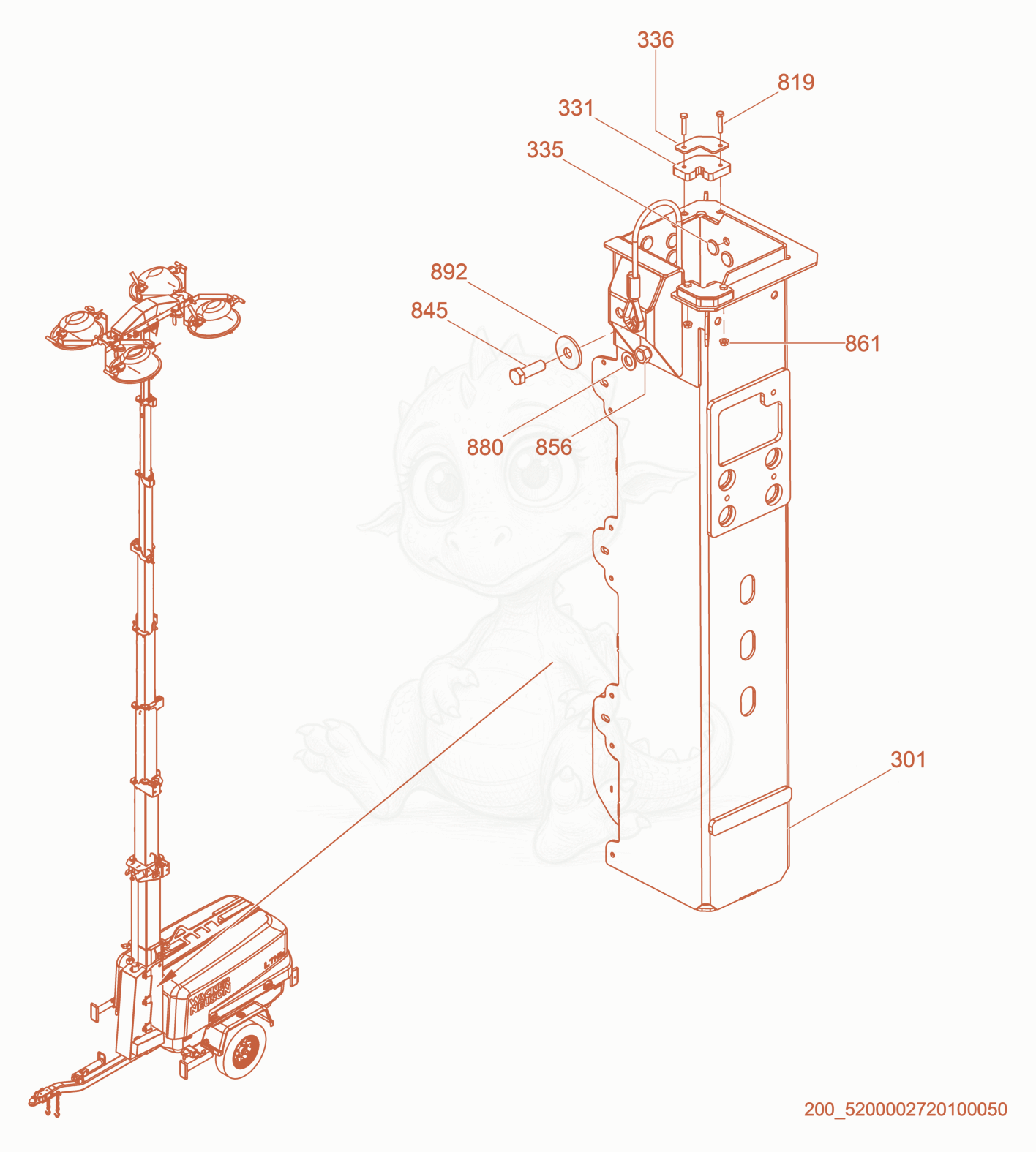

LTW20Z3-V Tower section 0 Diagram

Exploded parts diagram of the Tower section 0 of a Wacker Neuson LTW20Z3-V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3015200009816
    $640.45
    TUBE-MAST,STATIONARY - 5200009816×1
  • 3315200000379
    $6.00
    Guide-Corner - 5200000379×2
  • 3355200003228
    $48.27
    Guide-Round,Upper - 5200003228×16
  • 3365200009981Not stocked
    Guide plate×2
  • 8195000011468Not stocked
    Hexagonal head cap screw×4
  • 8455000011374
    $1.51
    SCREW M16 X 50 HX.HD. - 5000011374×1
  • 8565000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×1
  • 8615000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
  • 8805000010618
    $0.28
    WASHER B17 FLAT - 5000010618×1
  • 8925200008557
    $5.64
    Washer M16X54X4,Hardened - 5200008557×1
