LTW6K-V S Light Tower, Custom T4

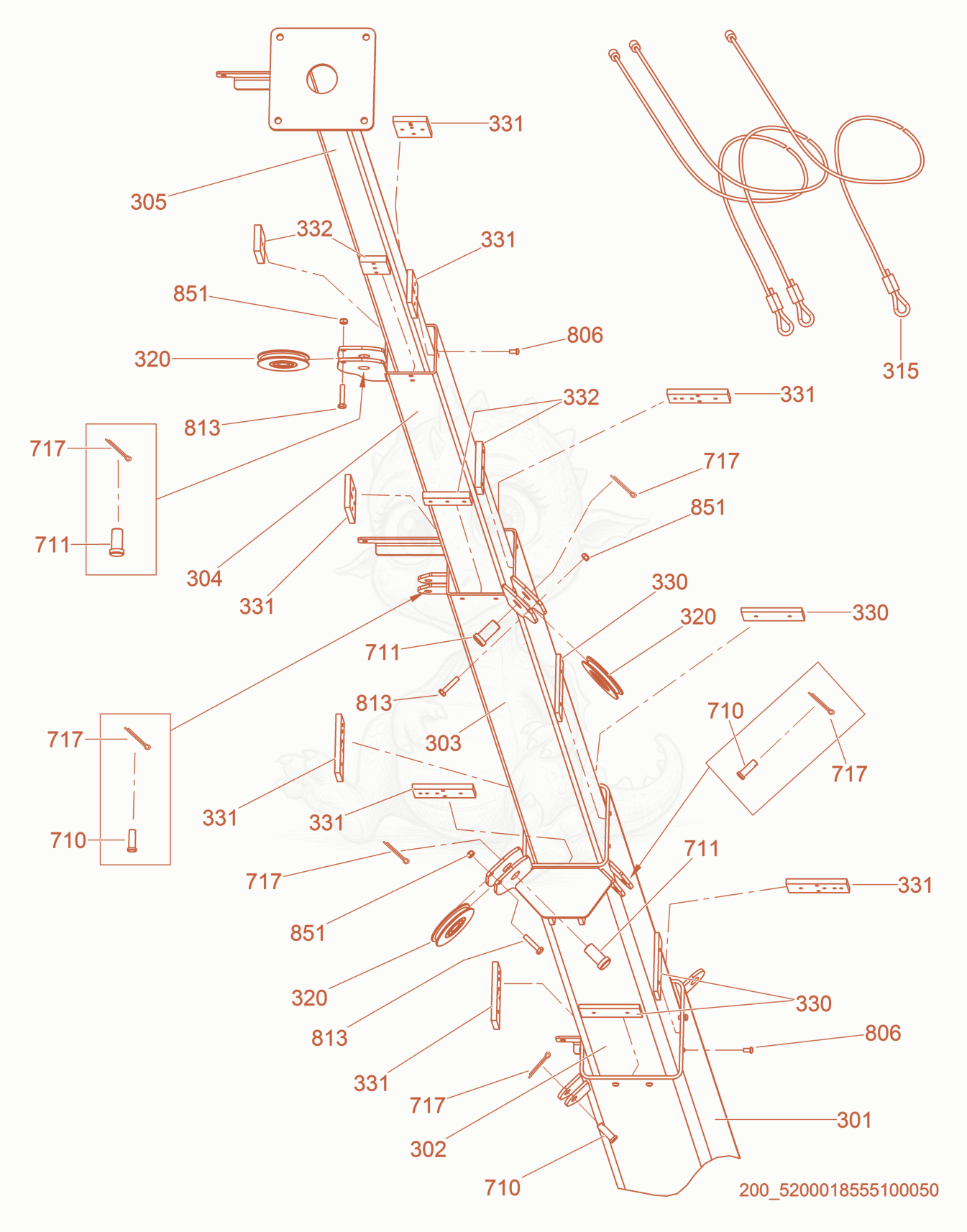

LTW6K-VS Tower cpl., LTW Diagram

Exploded parts diagram of the Tower cpl., LTW of a Wacker Neuson LTW6K-VS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3015200018435Not stocked
    Tower Tube, LTW-V×1
  • 3025200018437Not stocked
    Tower Tube×1
  • 3035200018438Not stocked
    Tower Tube×1
  • 3045200018439Not stocked
    Tower Tube×1
  • 3055200018440Not stocked
    Tower Tube×1
  • 3155200018471Not stocked
    Cable cpl.×3
  • 3205200018470Not stocked
    Pulley×3
  • 3305200018474Not stocked
    Guide×4
  • 3315200018475Not stocked
    Guide×8
  • 3325200018476Not stocked
    Guide×4
  • 7105200018477Not stocked
    Pin, clevis×3
  • 7115200018478Not stocked
    Pin, clevis×3
  • 7175000116751
    $0.28
    PIN-COTTER 1/8 X 1-1/2 - 5000116751×6
  • 8065000165226
    $0.30
    SCREW M5 X 10 THREAD CUT - 5000165226×32
  • 8135000173966
    $0.11
    SCREW-M6X30,HX. HD. - 5000173966×3
  • 8515000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×3
