Drive Engine M2000/120/UL

M2000/120/UL Stator Set 115V Diagram

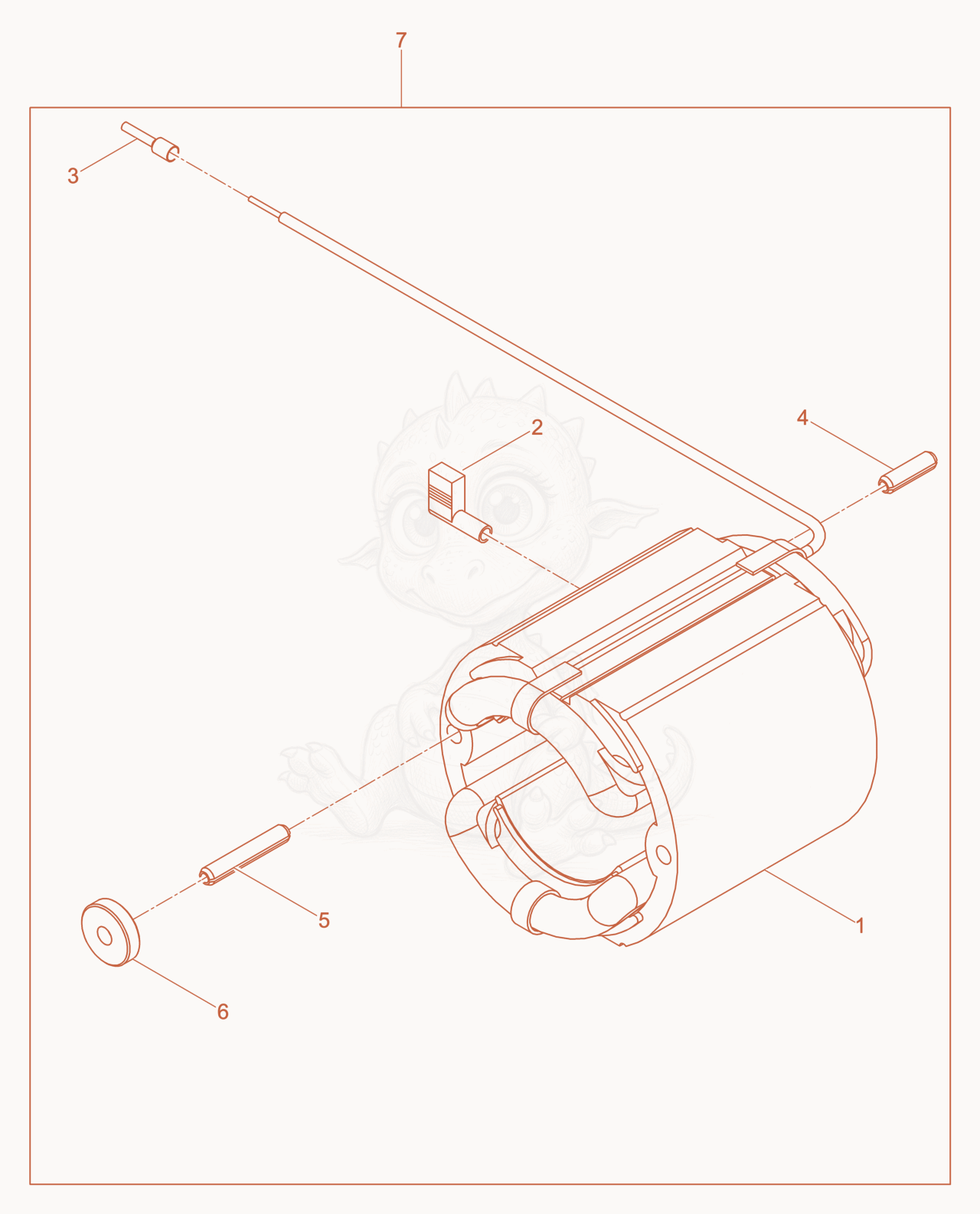

Exploded parts diagram of the Stator Set 115V of a Wacker Neuson M2000/120/UL, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000078971Not stocked
    Stator×1
  • 25000077796
    $2.74
    TERMINAL-RCPT,FLAG 16-14,INS - 5000077796×1
  • 35000126356
    $0.39
    TERMINAL-TAB - 5000126356×1
  • 45000054245
    $0.28
    PIN 7/32 NOM.X 3/4,ROLL - 5000054245×1
  • 55000054246
    $0.57
    PIN 7/32 NOM. X 1-1/4,ROLL - 5000054246×1
  • 65000053939
    $3.42
    SPACER - 5000053939×1
  • 75000078973
    $219.47
    STATOR-ASSEMBLY 115V - 5000078973×1
