MD3.5X

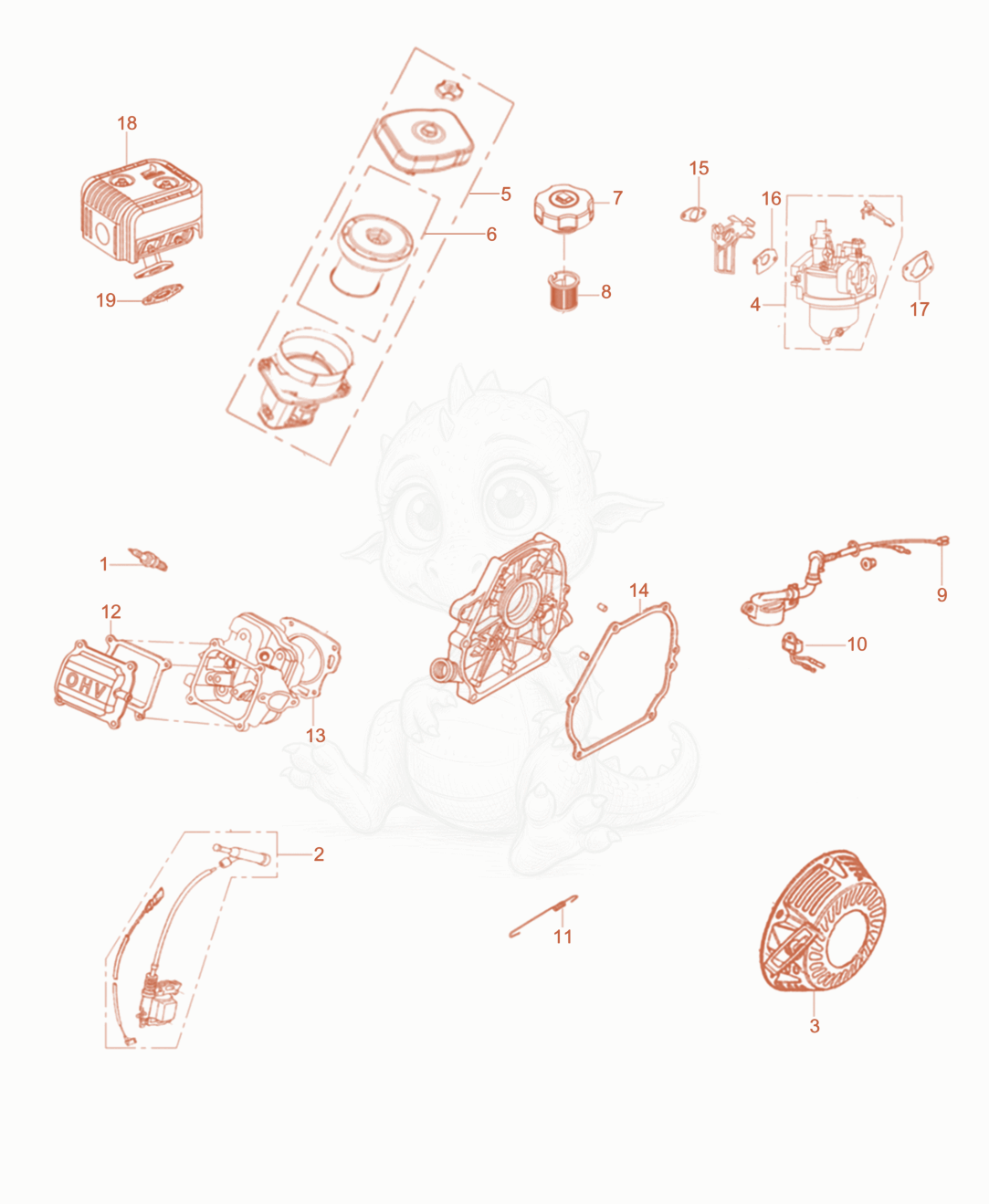

MD3.5X Engine Diagram

Exploded parts diagram of the Engine of a Wacker Neuson MD3.5X, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000408439
    $15.70
    Spark plug - 5000408439×1
  • 25100058787
    $19.56
    Ignition coil - 5100058787×1
  • 35000408487
    $35.77
    Manual starting components - 5000408487×1
  • 45000408500
    $64.19
    carburetor - 5000408500×1
  • 55000408522
    $40.94
    Air CLeaner Cpl. - 5000408522×1
  • 65000408519
    $8.26
    Air filter element combination - 5000408519×1
  • 75100058789Not stocked
    Fuel Tank Cap×1
  • 85000408527
    $2.85
    Fuel Strainer - 5000408527×1
  • 95000408455
    $14.86
    Oil level sensor - 5000408455×1
  • 105000408453
    $7.50
    Engine oil protector - 5000408453×1
  • 115000408512
    $0.61
    throttle return spring - 5000408512×1
  • 125000408441
    $3.06
    Gasket for cylinder head cover - 5000408441×1
  • 135000408437
    $6.93
    Gasket for cylinder head - 5000408437×1
  • 145000408465
    $13.44
    Crankcase cover gasket - 5000408465×1
  • 155000408496
    $0.91
    Carburetor gasket - 5000408496×1
  • 165000408498
    $0.91
    Carburetor gasket - 5000408498×1
  • 175000408499
    $6.12
    Carburetor gasket - 5000408499×1
  • 185000408523
    $75.83
    Muffler - 5000408523×1
  • 195000408525
    $1.62
    Outlet gasket - 5000408525×1
