PDI2A-PUMP,DIAPHRAGM

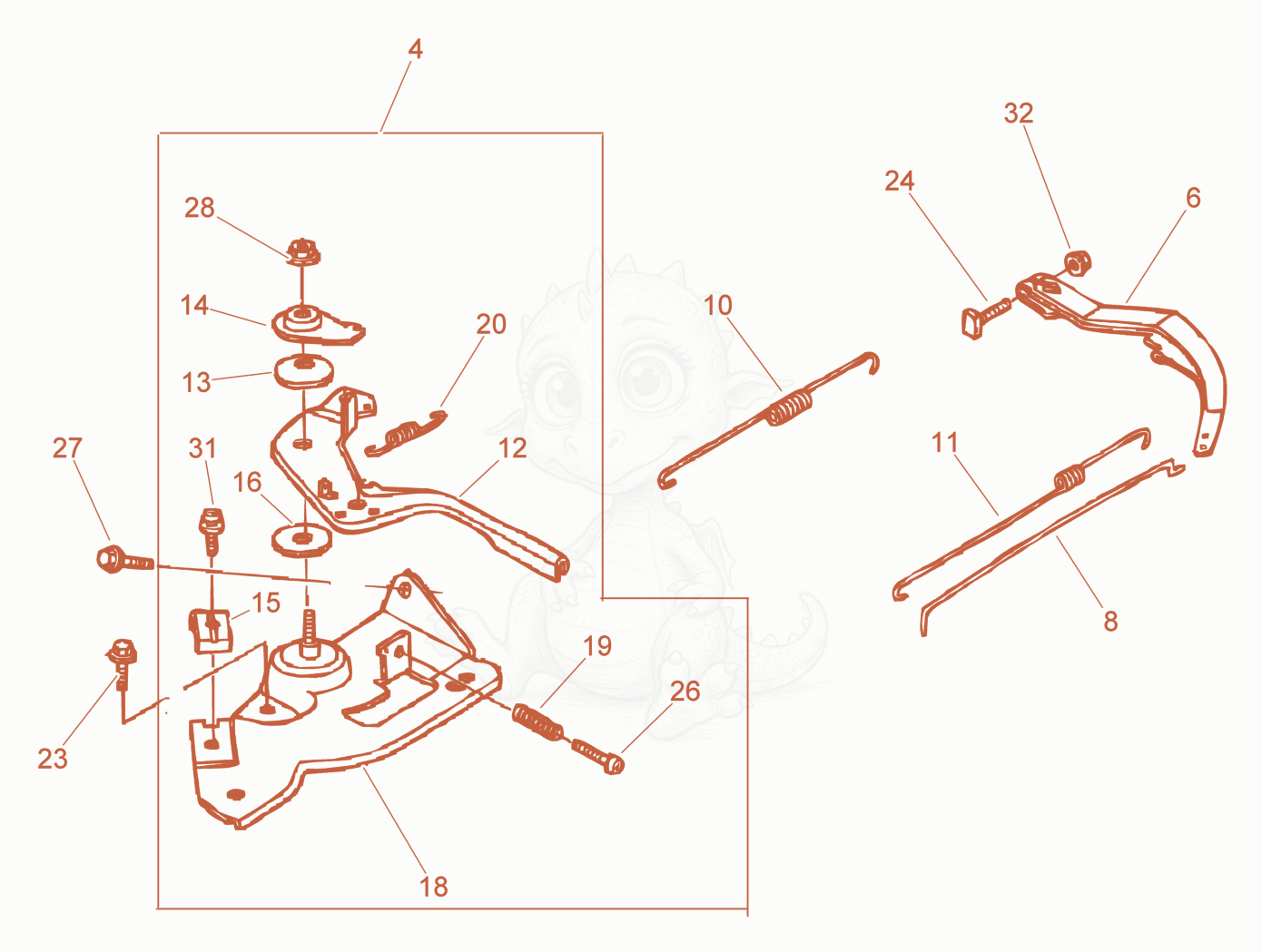

PDI2A Throttle Control Diagram

Exploded parts diagram of the Throttle Control of a Wacker Neuson PDI2A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000081796
    $45.89
    CONTROL-ASSEMBLY,REMOTE - 5000081796×1
  • 65000081742
    $18.73
    LEVER-GOVERNOR CONTROL - 5000081742×1
  • 85000071068
    $10.09
    ROD-GOVERNOR CONTROL - 5000071068×1
  • 105000081070
    $4.48
    SPRING-GOVERNOR CONTROL - 5000081070×1
  • 115000081743
    $5.43
    SPRING-THROTTLE RETURN - 5000081743×1
  • 125000076936
    $18.76
    LEVER-REMOTE CONTROL - 5000076936×1
  • 135000071058
    $5.17
    WASHER-CONCAVE - 5000071058×1
  • 145000071057
    $7.28
    WASHER - 5000071057×1
  • 155000071062
    $6.53
    HOLDER-REMOTE CONTROL CABLE - 5000071062×1
  • 165000071064
    $6.86
    SPACER - 5000071064×1
  • 185000076937
    $24.50
    MOUNT-REMOTE CONTROL SUPPORT - 5000076937×1
  • 195000054088
    $6.01
    SPRING-ADJUSTING - 5000054088×1
  • 205000071667
    $2.85
    Spring - 5000071667×1
  • 235000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 245000068966
    $3.77
    Screw - 5000068966×1
  • 265000081990
    $1.13
    SCREW M5 X 25 - 5000081990×1
  • 275000071055
    $3.62
    SCREW M6 X 20,HX.FLANGE - 5000071055×1
  • 285000072782
    $4.81
    NUT-LOCK M6,HEX. - 5000072782×1
  • 315000110112
    $1.51
    SCREW-PAN 5 X 16 - 5000110112×1
  • 325000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×1
