PDI3A(I)

PDI3A(I) Fuel tank Diagram

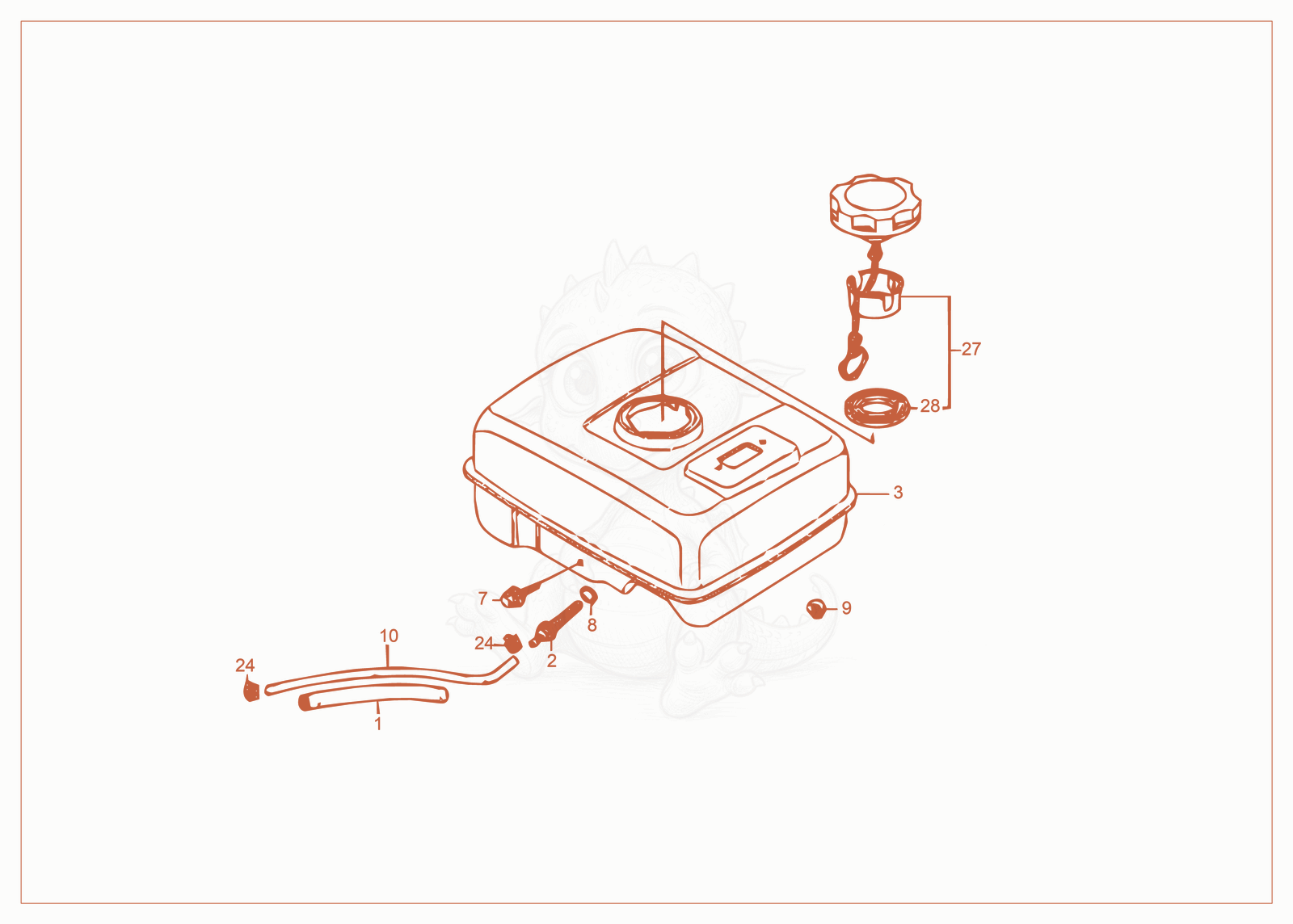

Exploded parts diagram of the Fuel tank of a Wacker Neuson PDI3A(I), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000081764
    $6.03
    hose cover - 5000081764×1
  • 25000071083
    $14.92
    FILTER-FUEL,INTANK - 5000071083×1
  • 35100028598
    $64.74
    TANK-FUEL, WHITE - 5100028598×1
  • 45100030760
    $101.52
    TANK-FUEL, BLACK - 5100030760×1
  • 75000209771
    $1.68
    BOLT-FLANGE 6 X 29 - 5000209771×1
  • 85000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 95000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
  • 105000209773
    $9.72
    HOSE-FUEL(4.5 X 140) - 5000209773×1
  • 245100086875Not stocked
    Tube Clamp×2
  • 275100071567Not stocked
    Cap comp,fuel filler×1
  • 285000209770
    $1.03
    Gasket - 5000209770×1
