PG2A

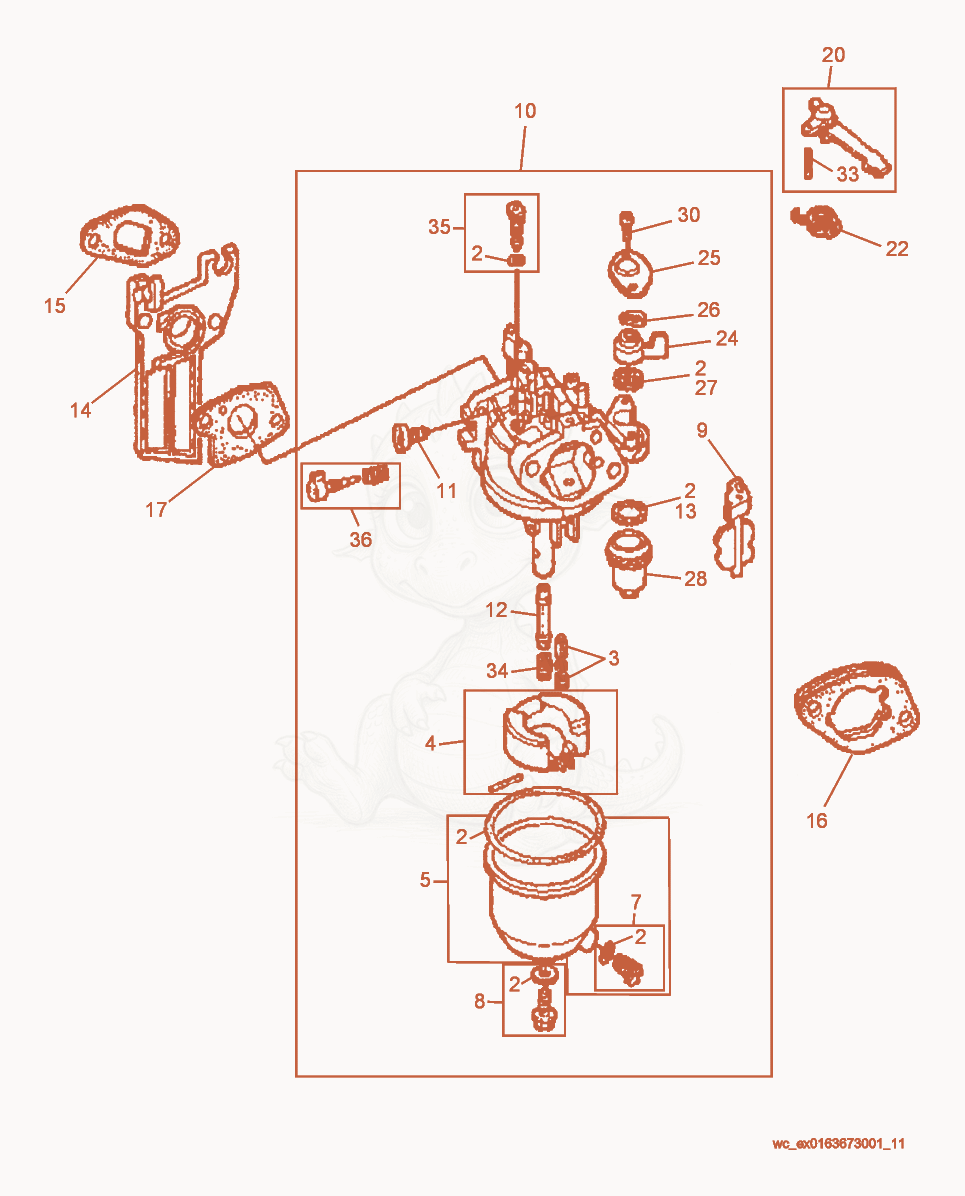

PG2A Carburetor Diagram

Exploded parts diagram of the Carburetor of a Wacker Neuson PG2A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000072781
    $25.66
    SET-CARBURETOR GASKETS - 5000072781×1
  • 35000071022
    $35.10
    SET-CARBURETOR FLOAT VALVE - 5000071022×1
  • 45000071020
    $36.81
    SET-CARBURETOR FLOAT - 5000071020×1
  • 55000081745
    $44.80
    SET-FLOAT CHAMBER - 5000081745×1
  • 75000073273
    $12.67
    SCREW-W/WASHER,CARB.DRAIN - 5000073273×1
  • 85000071021
    $16.19
    SCREW- W/WASHER,CARB.BOWL - 5000071021×1
  • 95000071025
    $44.11
    SET-ENGINE CHOKE - 5000071025×1
  • 105000207651Not stocked
    Carburetor cpl.×1
  • 115000071018
    $22.04
    SCREW-THROTTLE STOP - 5000071018×1
  • 125000089355
    $26.59
    JET-MAIN - 5000089355×1
  • 135000125839Not stocked
    O-Ring×1
  • 145000071010
    $23.93
    Insulator - 5000071010×1
  • 155000081794
    $3.47
    GASKET-INSULATOR - 5000081794×1
  • 165000071015
    $10.79
    SPACER - 5000071015×1
  • 175000081762
    $2.85
    GASKET - 5000081762×1
  • 205000071013
    $12.86
    LEVER-CHOKE CONTROL - 5000071013×1
  • 245000150266
    $13.50
    LEVER-FUEL VALVE - 5000150266×1
  • 255000073269
    $7.96
    PLATE-FUEL VALVE SETTINGS - 5000073269×1
  • 265000073270
    $5.13
    SPRING-FUEL LEVER - 5000073270×1
  • 275000073272
    $5.07
    GASKET-FUEL VALVE LEVER - 5000073272×1
  • 285000071023
    $28.91
    FILTER-FUEL STRAINER CUP - 5000071023×2
  • 305000156674
    $1.14
    X-5000078550-SCREW 3X6,PAN - 5000156674×2
  • 335000071014
    $2.62
    PIN 2 X 12MM,SPRING TYPE - 5000071014×1
  • 345000153141
    $10.45
    JET-MAIN #58 - 5000153141×1
  • 345000153142
    $12.78
    JET-MAIN #60 - 5000153142×1
  • 345000207672
    $19.86
    JET-MAIN,#62 - 5000207672×1
  • 355000071016
    $27.73
    JET-SIZE #35,SET PILOT - 5000071016×1
  • 365000089286
    $25.15
    SCREW-SET - 5000089286×1
