PS2 2203L-PUMP SUB,400V/50HZ

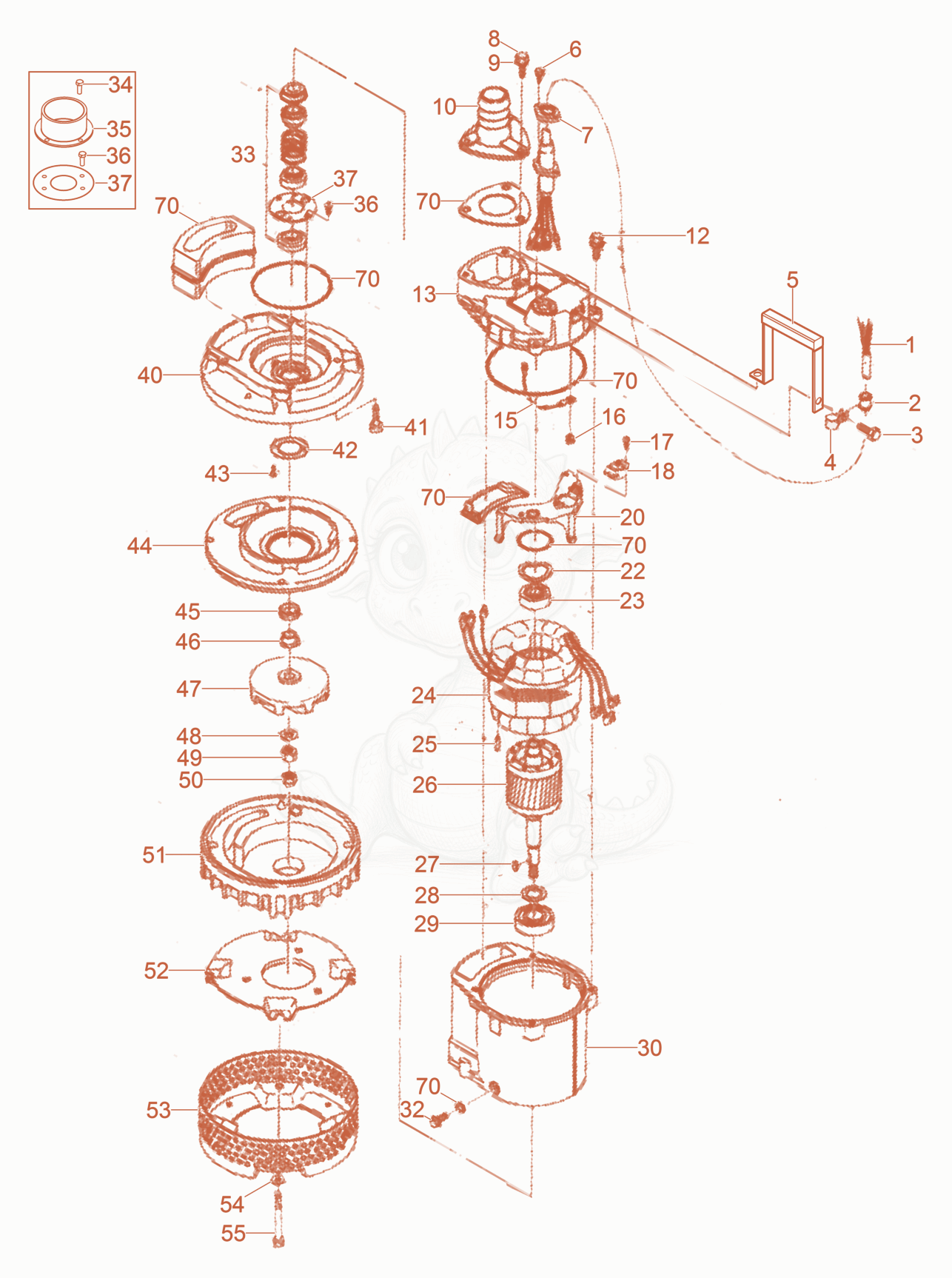

PS22203L Pump cpl. Diagram
- CABLE-POWER, 20m CE - 5000152386×1
- sleeve - 5000150454×1
- BOLT-M8 X 20 W/WASHER - 5000176803×1
- CLIP-CABLE - 5000176808×1
- Handle - 5000176869×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- BOLT-M8 X 35 W/WASHER - 5000176804×3
- COUPLING-HOSE,2 BSPT - 5000176875×1
- BOLT-M8 X 30 W/WASHER - 5000176798×4
- BRACKET-MOTOR - 5000176935×1
- WIRE-GROUND - 5000176865×1
- SCREW-M4 X 6 - 5000150779×1
- SCREW-TAPPING,M4X12 - 5000178375×2
- 185000176959Not stockedMotor protection switch×1
- WIRE-LEAD - 5000176913×1
- WASHER-SPRING - 5000150767×1
- BEARING-BALL - 5000150557×1
- STATOR-380/400/415V-50HZ - 5000178350×1
- PIN-TAPER - 5000178373×1
- ROTOR-W/SHAFT - 5000177053×1
- KEY - 5000150804×1
- Ring - 5000150621×1
- BEARING-BALL - 5000150559×1
- HOUSING-MOTOR - 5000150628×1
- PLUG-OIL - 5000150536×1
- SEAL-MECHANICAL - 5000150503×1
- SCREW-M5 X 6 - 5000150776×2
- PLATE-OIL LIFTER - 5000150518×1
- screw - 5000150775×2
- PLATE-RETAINING - 5000150522×1
- HOUSING-OIL - 5000150513×1
- BOLT-HEX,SOCKET - 5000150736×4
- PLATE-WARE - 5000150615×1
- SCREW-SELF TAPPING - 5000150785×2
- RING-WEAR - 5000150524×1
- SEAL-DUST - 5000150709×1
- Sleeve - 5000150651×1
- impeller - 5000176895×1
- WASHER-PLAIN,M12 - 5000150762×1
- NUT-M12 - 5000150748×1
- NUT-ACORN - 5000150754×1
- VOLUTE - 5000150468×1
- PLATE-RETAINER - 5000150712×1
- STRAINER - 5000150495×1
- BOLT-M8 X 85 - 5000176788×4
- SET-GASKET & O-RING - 5000176853×1
