PS2-3703

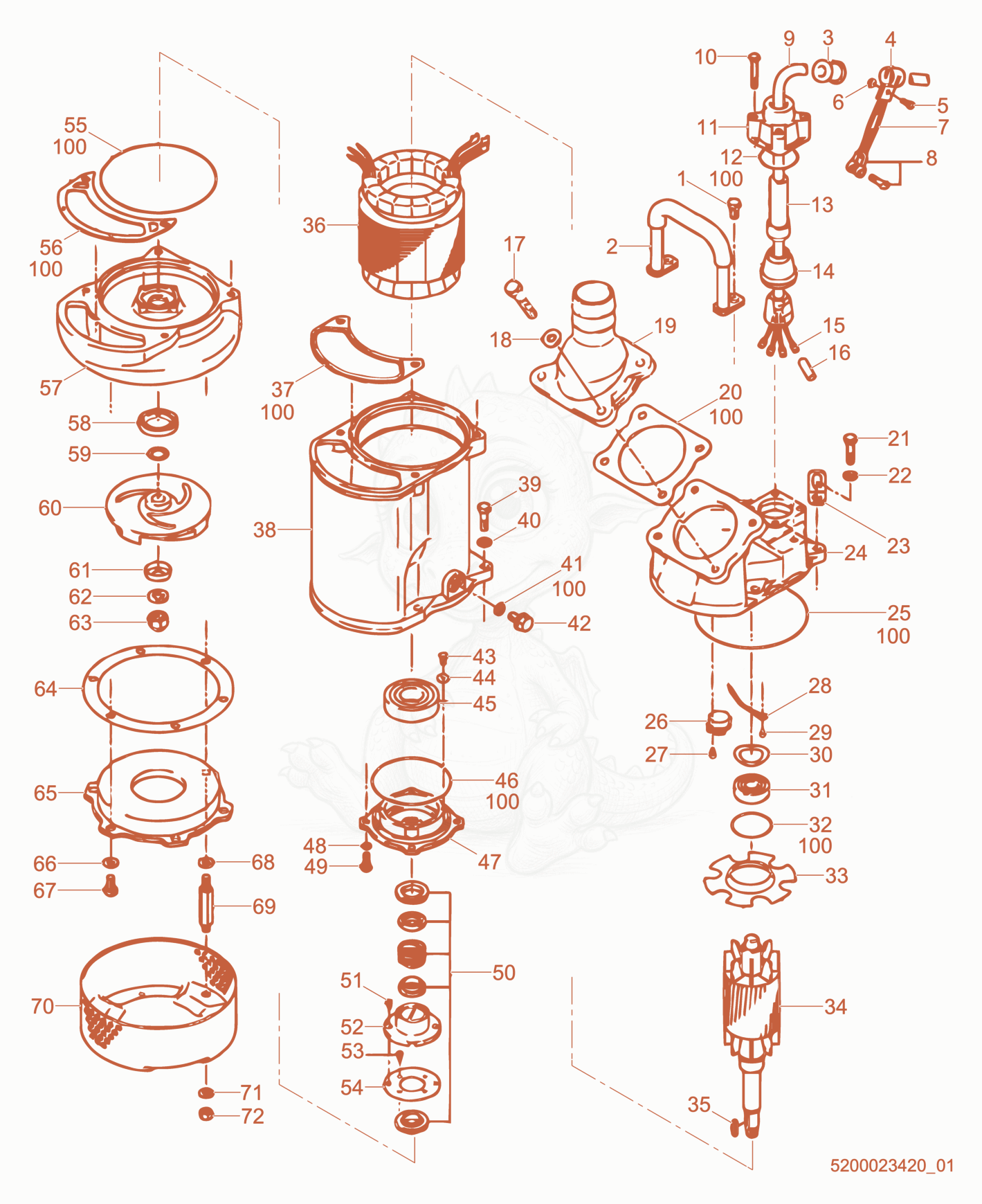

PS23703 Pump Components Diagram
- BOLT-M10 X 20 - 5000150726×2
- handle-lifting - 5000150642×1
- Sleeve - 5100029388×1
- CLIP-CABLE - 5000150450×1
- BOLT-M6 X 15 - 5000150715×1
- NUT-M6 - 5100028407×1
- chain - 5000150665×1
- Hook - 5100028548×1
- CABLE-POWER, 20m 415V-50Hz - 5100029389×1
- BOLT-M8 X 50 - 5000150722×4
- WASHER-PLAIN,M8 - 5000150759×4
- CASING-CABLE - 5000150423×1
- 125000150692Not stockedO-Ring×1
- BUSHING - 5000150420×1
- cover - 5000150427×1
- TERMINAL POST - 5000150430×4
- TUBE-HEAT SHRINK - 5000150416×1
- 175200023039Not stockedBolt×4
- WASHER-PLAIN,M10 - 5100028656×4
- 195200023043Not stockedBarbed hose coupling×1
- 205200023049Not stockedGasket×1
- BOLT-M10 X 40 - 5000150730×4
- WASHER-LOCK,M10 - 5000150764×4
- BRACKET - 5000150645×1
- Housing - 5100029390×1
- O-ring - 5000150701×1
- SWITCH-THERMAL, 400V/220V 50/60Hz - 5000162527×1
- SCREW-M4 X 12 - 5000150783×2
- WIRE-GROUNDING - 5000152310×1
- SCREW-PHMS,M4 X 6 - 5000177004×1
- WASHER-SPRING - 5000150768×1
- BEARING-BALL - 5000150558×1
- O-ring - 5000150706×1
- PLATE-PROTECTIVE - 5000162528×1
- 345100077030Not stockedRotor×1
- KEY-5 X 5 X 25 - 5100028408×1
- 365100077031Not stockedSTATOR 400/440V-50/60Hz×1
- GASKET - 5000150689×1
- FRAME-MOTOR - 5100029391×1
- BOLT-M10 X 35 - 5000150729×4
- WASHER-LOCK,M10 - 5000150764×4
- GASKET - 5000150667×1
- BOLT-M12 X 20 - 5000150738×1
- BOLT-M5 X 10 W/WASHER - 5000176786×4
- COVER-BEARING - 5100028409×4
- BEARING-BALL - 5000150560×1
- O-ring - 5000150694×1
- 475200023055Not stockedBearing housing×1
- WASHER-LOCK,M8 - 5000150763×4
- BOLT-M8 X 20 - 5000150718×4
- SEAL-MECHANICAL - 5100028490×1
- SCREW-M5 X 6 - 5000150776×2
- LIFTER-OIL - 5000176980×1
- SCREW-M5 X 6 - 5100028211×4
- PLATE-RETAINING - 5000150520×1
- NLA O-RING - 5000150702×1
- GASKET - 5000150671×1
- VOLUTE - 5000150466×1
- SEAL-OIL - 5000150510×1
- shim - 5000150539×1
- IMPELLER,2" 3.7 50Hz - 5000152311×1
- COVER-THREAD - 5000150541×1
- WASHER-LOCK - 5000150765×1
- NUT-ACORN,M16 - 5000150755×1
- GASKET - 5000150667×1
- COVER-SUCTION 2" 3.7 - 5000150489×3
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-M10 X 20 - 5000150726×3
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-STUD - 5100028492×3
- STRAINER - 5000150497×3
- WASHER-PLAIN,M10 - 5000150761×3
- NUT-M10 - 5000150747×3
- GASKET-O RING SET - 5100028493×1
