PS2 800

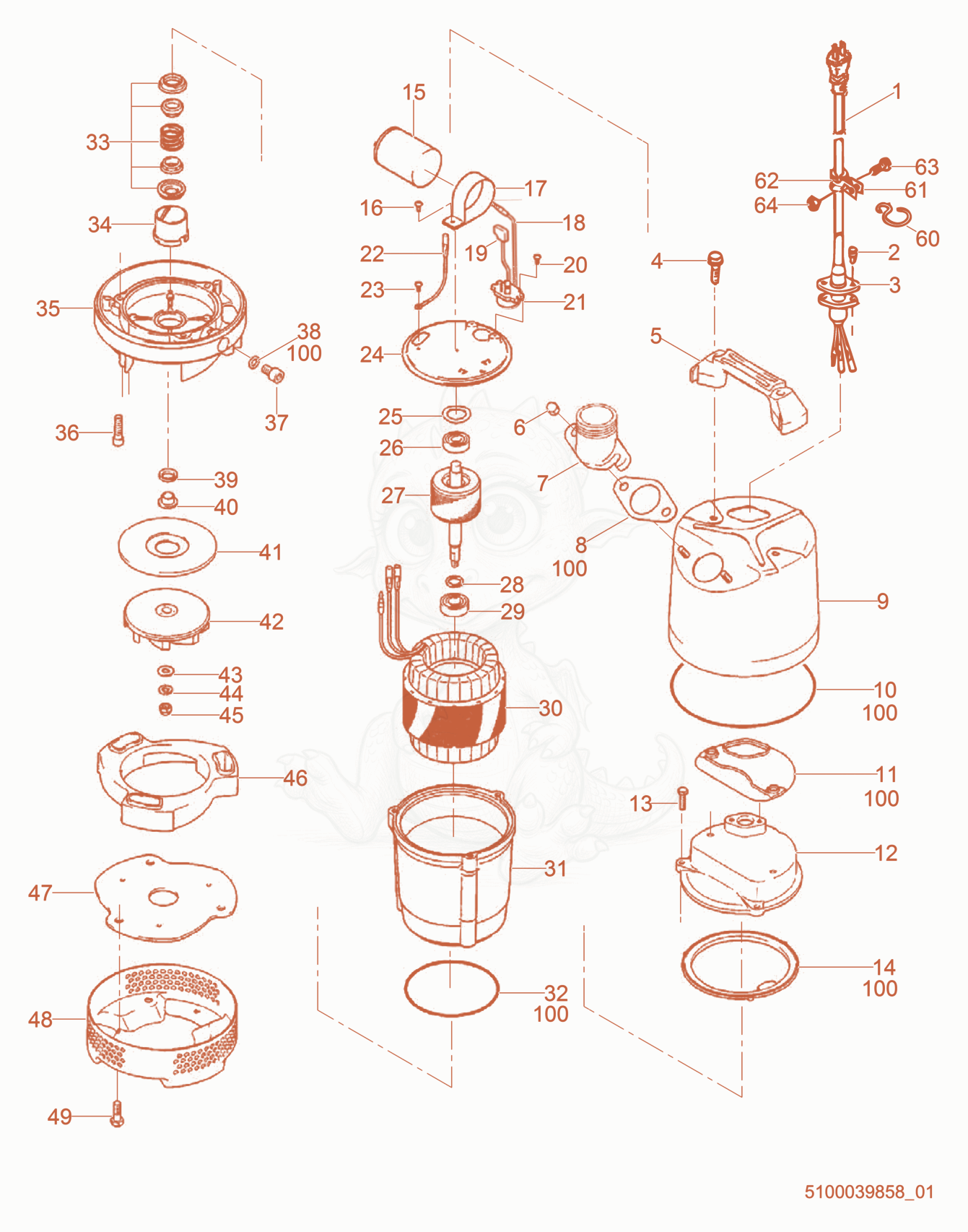

PS2800 Pump Components Diagram
- CABLE-POWER w/GLAND 50' - 5000150402×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- BOLT W/WASHER - 5000157371×2
- Handle - 5000175094×1
- NUT-ACORN - 5000150753×2
- 75000174983Not stockedMale coupling×1
- GASKET-HOSE COUPLING - 5000175097×1
- COVER-PUMP PS - 5000176998×1
- O-ring - 5000150711×1
- GASKET - 5000150679×1
- 125200021916Not stockedHousing×1
- BOLT - 5000157363×3
- GASKET - 5000150691×1
- 155200021917Not stockedCapacitor×1
- SCREW-PHMS,M4 X 8 - 5000177006×1
- 175200012389Not stockedRetainer×1
- 185200012387Not stockedWire-red×1
- 195200012386Not stockedWire-blue×1
- 205200012384Not stockedScrew×2
- 215200023631Not stockedMotor protection switch×1
- 225200012390Not stockedGround wire×1
- SCREW-M4 X 4 - 5000150777×1
- 245200021931Not stockedBracket×1
- WASHER-SPRING - 5000150766×1
- BEARING-BALL - 5000150555×1
- 275200021933Not stockedRotor cpl.×1
- COLLAR-BEARING - 5000150623×1
- BEARING-BALL - 5000150563×1
- 305200021935Not stockedStator cpl.×1
- 315200021938Not stockedMotor housing×1
- O-ring - 5000150694×1
- SEAL-MECHANICAL - 5000150505×1
- LIFTER-OIL - 5000157378×1
- CASING-OIL - 5000176977×1
- BOLT-SOCKET HEAD - 5000157380×3
- PLUG-OIL - 5000150535×1
- GASKET - 5000150676×1
- SEAL-DUST - 5000150708×1
- sleeve - 5000150650×1
- RING-WEAR - 5000175099×1
- Impeller - 5000176890×1
- WASHER-PLAIN,M8 - 5000150759×1
- WASHER-LOCK,M8 - 5000150763×1
- NUT-ACORN - 5000150753×1
- CASING-PUMP - 5000177023×1
- COVER-SUCTION - 5000175100×1
- STRAINER-SUCTION - 5000157372×1
- BOLT W/WASHER M8 X 20 - 5000159227×1
- hook - 5000150457×1
- CLIP-CABLE - 5000150449×1
- 625200012711Not stockedRubber pipe×1
- 635200012709Not stockedBolt×1
- NUT-M5 - 5000150743×1
- GASKET-O RING SET - 5000175110×1
