PS3 5503-PUMP SUB.400V/50HZ

PS35503 Pump Components Diagram

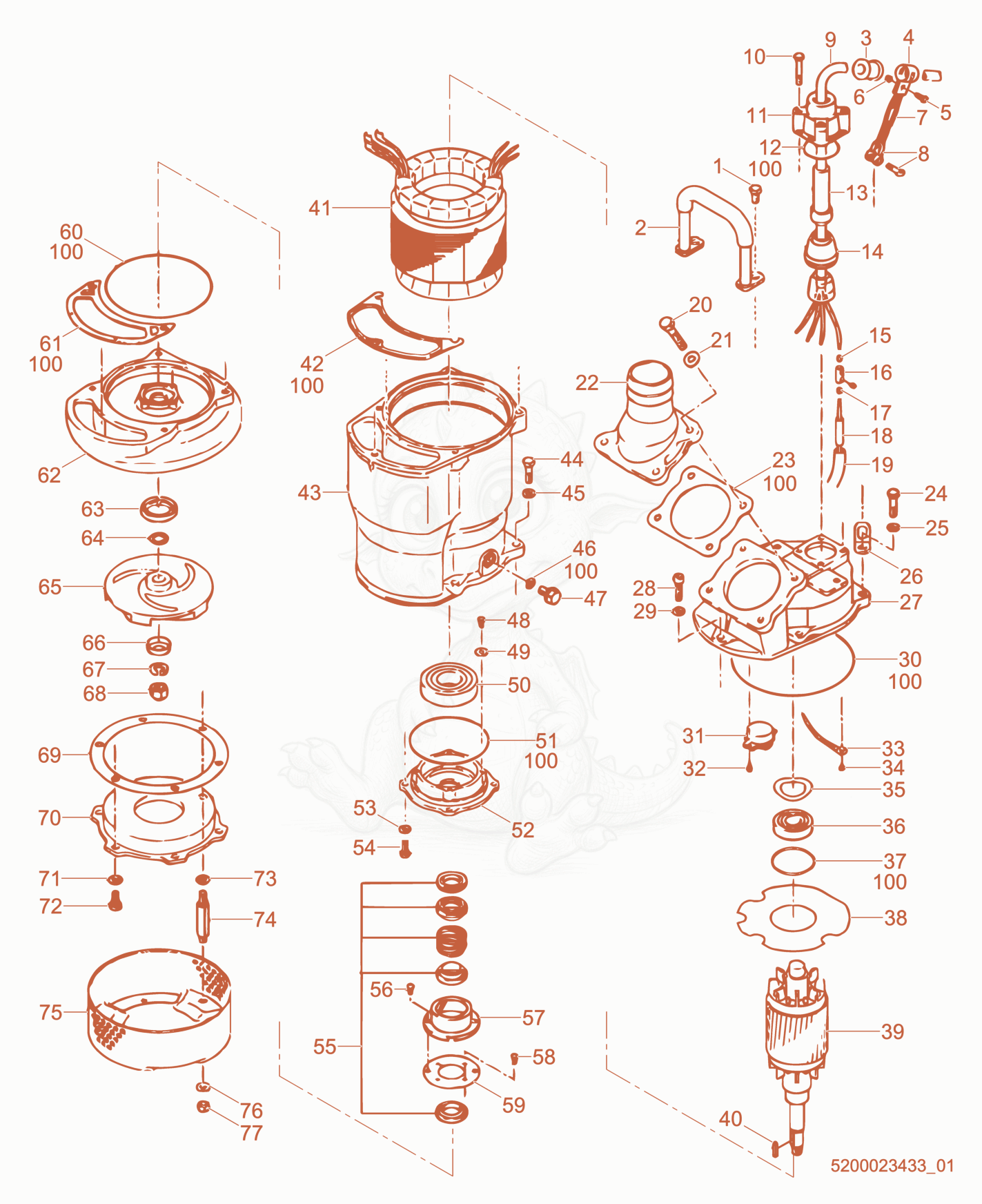

Exploded parts diagram of the Pump Components of a Wacker Neuson PS35503, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000150726
$4.53
BOLT-M10 X 20 - 5000150726×3
25000150642
$257.18
handle-lifting - 5000150642×1
35000150451
$3.23
sleeve - 5000150451×1
45000150450
$9.05
CLIP-CABLE - 5000150450×1
55000150715
$1.03
BOLT-M6 X 15 - 5000150715×1
65100028407
$0.52
NUT-M6 - 5100028407×1
75000150665
$3.82
chain - 5000150665×1
85100028548
$6.34
Hook - 5100028548×1
95000152314
$708.42
CABLE-POWER, 20m CE - 5000152314×1
105000150722
$4.02
BOLT-M8 X 50 - 5000150722×4
115000150423
$99.79
CASING-CABLE - 5000150423×1
125000150692Not stocked
O-Ring×1
135000150421
$28.97
BUSHING-CORD, CE - 5000150421×1
145000150427
$31.59
cover - 5000150427×1
155100028517
$1.28
TERMINAL POST - 5100028517×4
165000150428
$12.55
terminal-splice - 5000150428×4
175000150820
$1.43
TERMINAL POST - 5000150820×4
185000150416
$7.12
TUBE-HEAT SHRINK - 5000150416×1
195000150415
$36.21
TUBE-HEAT SHRINK - 5000150415×1
205200023039Not stocked
Bolt×4
215100028656
$1.03
WASHER-PLAIN,M10 - 5100028656×4
225200023047Not stocked
Hose coupling×1
235200023049Not stocked
Gasket×1
245000150730
$5.05
BOLT-M10 X 40 - 5000150730×4
255000150764
$1.03
WASHER-LOCK,M10 - 5000150764×4
265000150645
$14.69
BRACKET - 5000150645×1
275100029721
$84.50
Motor Bracket - 5100029721×1
285000150737
$12.03
BOLT-HEX,SOCKET - 5000150737×1
295000150764
$1.03
WASHER-LOCK,M10 - 5000150764×1
305200023061Not stocked
O-Ring×1
315000162536
$559.43
SWITCH-THERMAL, 400/440V-50/60Hz - 5000162536×1
325000150783
$0.90
SCREW-M4 X 12 - 5000150783×2
335000152315
$35.10
WIRE-GROUNDING - 5000152315×1
345000150779
$1.03
SCREW-M4 X 6 - 5000150779×1
355000150769
$6.08
WASHER-SPRING - 5000150769×1
365000150559
$42.03
BEARING-BALL - 5000150559×1
375000150669
$8.67
GASKET - 5000150669×1
385100028481
$77.66
PLATE-PROTECTIVE - 5100028481×1
395200023066Not stocked
Rotor×1
405100028408
$27.37
KEY-5 X 5 X 25 - 5100028408×1
415200023068Not stocked
Stator×1
425200023080Not stocked
Gasket×1
435100029722
$2,550.86
FRAME-MOTOR - 5100029722×1
445000150729
$4.79
BOLT-M10 X 35 - 5000150729×4
455000150764
$1.03
WASHER-LOCK,M10 - 5000150764×4
465000150677
$1.30
GASKET - 5000150677×1
475000150738
$9.32
BOLT-M12 X 20 - 5000150738×1
485000176786
$1.03
BOLT-M5 X 10 W/WASHER - 5000176786×4
495100028409
$21.99
COVER-BEARING - 5100028409×4
505000150561
$89.63
BEARING-BALL - 5000150561×1
515000150696Not stocked
O-Ring×1
525200023082Not stocked
Bearing housing×1
535000150763
$0.65
WASHER-LOCK,M8 - 5000150763×4
545000150718
$0.90
BOLT-M8 X 20 - 5000150718×4
555100028490
$416.35
SEAL-MECHANICAL - 5100028490×1
565000150776
$0.52
SCREW-M5 X 6 - 5000150776×2
575000176980
$8.92
LIFTER-OIL - 5000176980×1
585100028211
$0.65
SCREW-M5 X 6 - 5100028211×4
595000150520
$16.90
PLATE-RETAINING - 5000150520×1
605000150702
$15.50
NLA O-RING - 5000150702×1
615000150671
$25.87
GASKET - 5000150671×1
625000150467
$667.28
VOLUTE - 5000150467×1
635000150510
$15.26
SEAL-OIL - 5000150510×1
645000150539
$4.27
shim - 5000150539×1
655200023085Not stocked
Impeller×1
665000150541
$8.05
COVER-THREAD - 5000150541×1
675000150765
$2.97
WASHER-LOCK - 5000150765×1
685000150755
$16.42
NUT-ACORN,M16 - 5000150755×1
695000150667
$5.17
GASKET - 5000150667×1
705000150490
$190.94
COVER-SUCTION, 3inch 3.7/5.5 - 5000150490×1
715000150761
$0.65
WASHER-PLAIN,M10 - 5000150761×3
725000150726
$4.53
BOLT-M10 X 20 - 5000150726×3
735000150761
$0.65
WASHER-PLAIN,M10 - 5000150761×3
745100028492
$23.80
BOLT-STUD - 5100028492×3
755000150497
$125.20
STRAINER - 5000150497×1
765000150761
$0.65
WASHER-PLAIN,M10 - 5000150761×3
775000150747
$0.52
NUT-M10 - 5000150747×3
1005100028482
$136.46
GASKET-O RING SET - 5100028482×1
