PS4 5503-PUMP SUB. 575V/60HZ

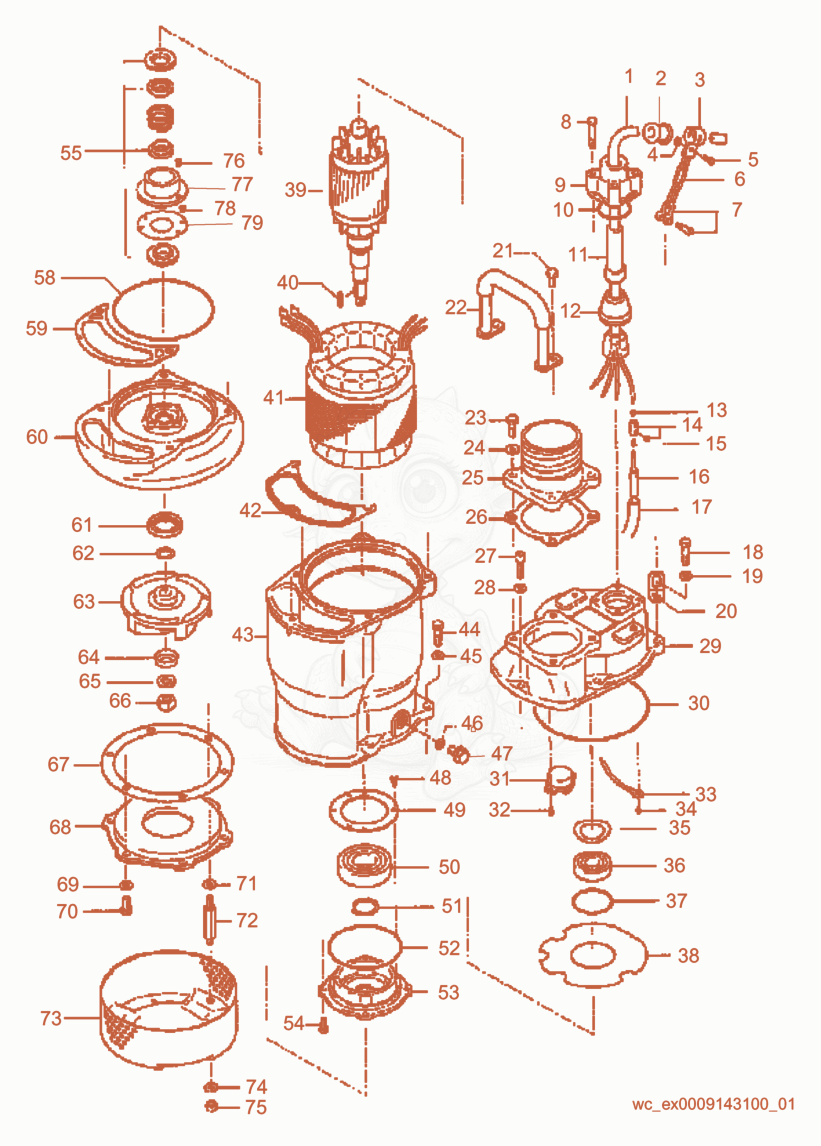

PS45503 Pump Components Diagram
- 5000150808$150.11GASKET-ORING SET - 5000150808×1
- 5000151080Not stockedPuller×1
- 5000152282$5.63PLATE-WARNING - 5000152282×1
- CABLE-POWER 60Hz 50' - 5000150408×1
- sleeve - 5000150451×1
- CLIP-CABLE - 5000150450×1
- NUT-M6 - 5000150744×1
- BOLT-M6 X 15 - 5000150715×1
- chain - 5000150665×1
- hook - 5000150458×1
- BOLT-M8 X 50 - 5000150722×4
- CASING-CABLE - 5000150423×1
- 105000150692Not stockedO-Ring×1
- BUSHING-CORD, CE - 5000150421×1
- cover - 5000150427×1
- 135000150429Not stockedTerminal post×4
- terminal-splice - 5000150428×4
- 155000150429Not stockedTerminal post×4
- TUBE-HEAT SHRINK - 5000150412×1
- TUBE-HEAT SHRINK - 5000150415×1
- BOLT-M10 X 40 - 5000150730×4
- WASHER-LOCK,M10 - 5000150764×4
- BRACKET - 5000150645×1
- BOLT-M10 X 20 - 5000150726×2
- handle-lifting - 5000150642×1
- BOLT-M10 X 30 - 5000150728×4
- WASHER-PLAIN,M10 - 5000150761×4
- COUPLING-HOSE - 5000150529×1
- GASKET - 5000150673×1
- BOLT-HEX,SOCKET - 5000150737×1
- WASHER-LOCK,M10 - 5000150764×1
- HOUSING-COVER - 5000150547×1
- O-ring - 5000150707×1
- SWITCH-THERMAL - 5000150582×1
- SCREW-M4 X 12 - 5000150783×2
- WIRE-GROUNDING - 5000150447×1
- SCREW-M4 X 6 - 5000150779×1
- WASHER-SPRING - 5000150769×1
- BEARING-BALL - 5000150559×1
- 375000150699Not stockedO-Ring×1
- PLATE-LEAD WIRE - 5000150614×1
- Rotor 5000150588×1
- KEY - 5000150803×1
- Stator - 5000150608×1
- GASKET - 5000150688×1
- HOUSING-MOTOR - 5000150630×1
- BOLT-M10 X 35 - 5000150729×4
- WASHER-LOCK,M10 - 5000150764×4
- GASKET - 5000150677×1
- BOLT-M12 X 20 - 5000150738×1
- BOLT-M6 X 12 - 5000150714×4
- COVER-BEARING - 5000150626×1
- BEARING-BALL - 5000150561×1
- RING-LOCKING - 5000150798×1
- 525000150696Not stockedO-Ring×1
- HOUSING-BEARING - 5000150618×1
- BOLT-M8 X 20 - 5000150718×4
- SCREW-M5 X 6 - 5000150776×2
- screw - 5000150775×4
- PLATE-RETAINING - 5000150520×1
- PLATE-OIL LIFTER - 5000150517×1
- SEAL-MECHANICAL - 5000150506×1
- NLA O-RING - 5000150702×1
- GASKET - 5000150671×1
- VOLUTE - 5000150467×1
- SEAL-OIL - 5000150510×1
- shim - 5000150539×1
- IMPELLER,4" 3.7 50Hz - 5000150474×1
- COVER-THREAD - 5000150541×1
- WASHER-LOCK - 5000150765×1
- NUT-ACORN,M16 - 5000150755×1
- GASKET - 5000150667×1
- COVER-SUCTION, 4" 3.7/5.5 - 5000150491×1
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-M10 X 20 - 5000150726×3
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-STUD - 5000150790×3
- STRAINER - 5000150497×1
- WASHER-PLAIN,M10 - 5000150761×3
- NUT-M10 - 5000150747×3
