PSTF3 750

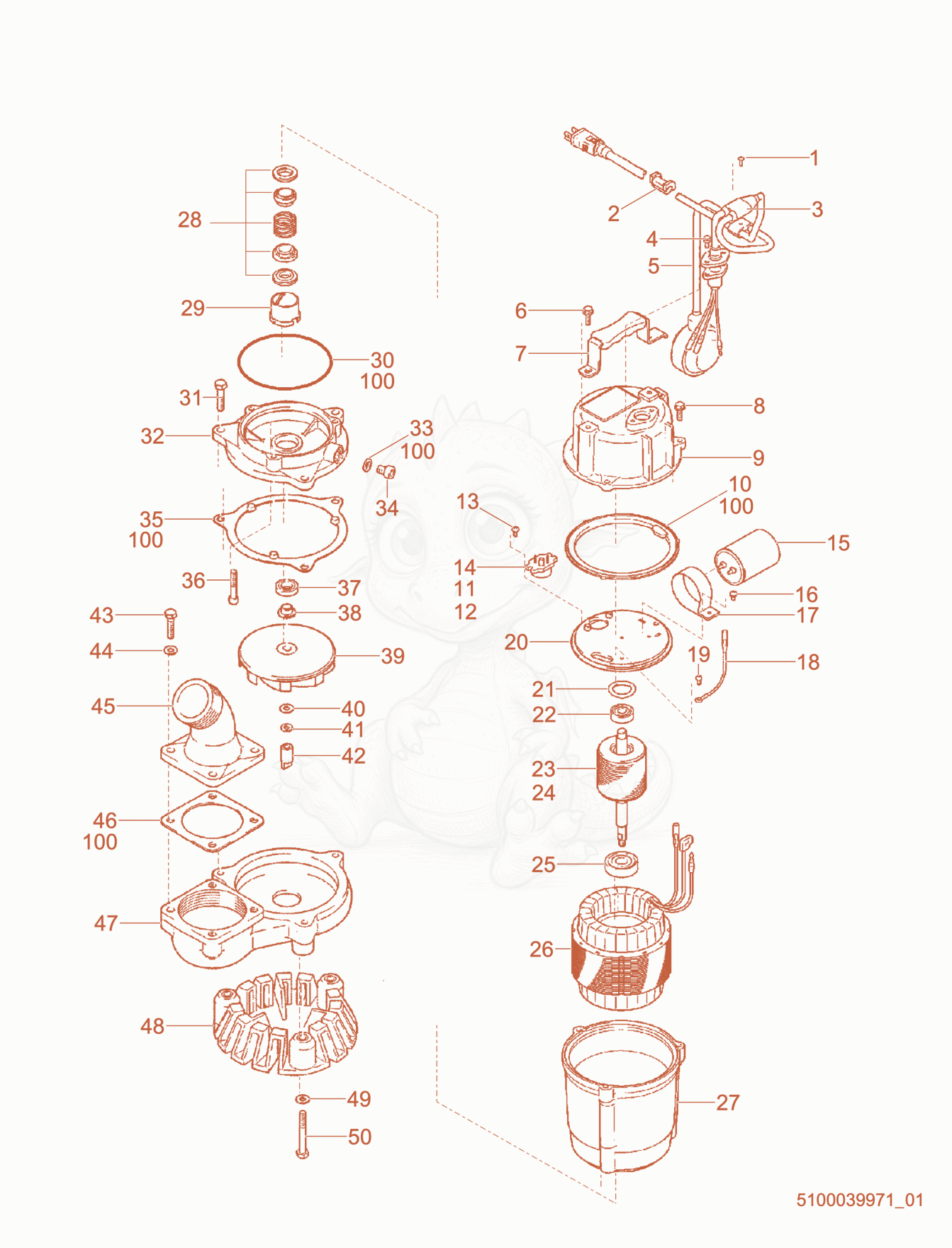

PSTF3750 Pump Components Diagram
- SCREW-TAPPING,M4X16 - 5000178374×1
- sleeve - 5000150455×1
- SUPPORT-FLOAT - 5000176826×1
- BOLT-M5 X 15 - 5000150741×2
- CABLE-POWER - 5000177020×1
- BOLT-M6 X 15 - 5000150715×2
- handle-lifting - 5000150638×1
- BOLT - 5000157363×3
- 95200012382Not stockedHousing×1
- 105200012383Not stockedGasket×1
- 115200012387Not stockedWire-red×1
- 125200012386Not stockedWire-blue×1
- 135200012384Not stockedScrew×2
- PROTECTOR-MOTOR 110V-50/60Hz - 5000176951×1
- 155200012399Not stockedCapacitor×1
- BOLT-SOCKET,M8X16 - 5000177066×1
- 175200012389Not stockedRetainer×1
- 185200012390Not stockedGround wire×1
- SCREW-M4 X 4 - 5000150777×1
- 205200012391Not stockedBracket×1
- WASHER-SPRING - 5000150766×1
- BEARING-BALL - 5000150555×1
- 235200012392Not stockedRotor cpl.×1
- COLLAR-BEARING - 5000150623×1
- BEARING-BALL - 5000150563×1
- 265200012410Not stockedStator cpl.×1
- 275200012395Not stockedMotor housing×1
- SEAL-MECHANICAL - 5000150505×1
- LIFTER-OIL - 5000157378×1
- O-ring - 5000150694×1
- BOLT-M8 X 30 - 5000176791×3
- CASING-OIL - 5000176978×1
- GASKET - 5000150676×1
- RING-BLADE LIFT,LEFT - 5000153535×1
- Gasket - 5000176838×1
- SCREW-HEX,SOCKET - 5000150733×3
- SEAL-DUST - 5000150708×1
- sleeve - 5000150650×1
- IMPELLER 60Hz - 5000176889×1
- WASHER-PLAIN,M8 - 5000150759×1
- WASHER-LOCK,M8 - 5000150763×1
- NUT-STIRRER - 5000150501×1
- BOLT-M10 X 30 - 5000176794×4
- WASHER-PLAIN,M10 - 5000150761×4
- 455000054343Not stockedQuick disconnect coupling×1
- COUPLING-HOSE,3 NPT - 5000176881×1
- GASKET - 5000150674×1
- CASING-PUMP - 5000177026×1
- STAND-STRAINER - 5000178357×1
- WASHER-PLAIN,M8 - 5000150760×3
- BOLT-M8 X 35 - 5000150721×3
- 1005200021968Not stockedGasket & O-Ring Set×1
