PT2 Pump

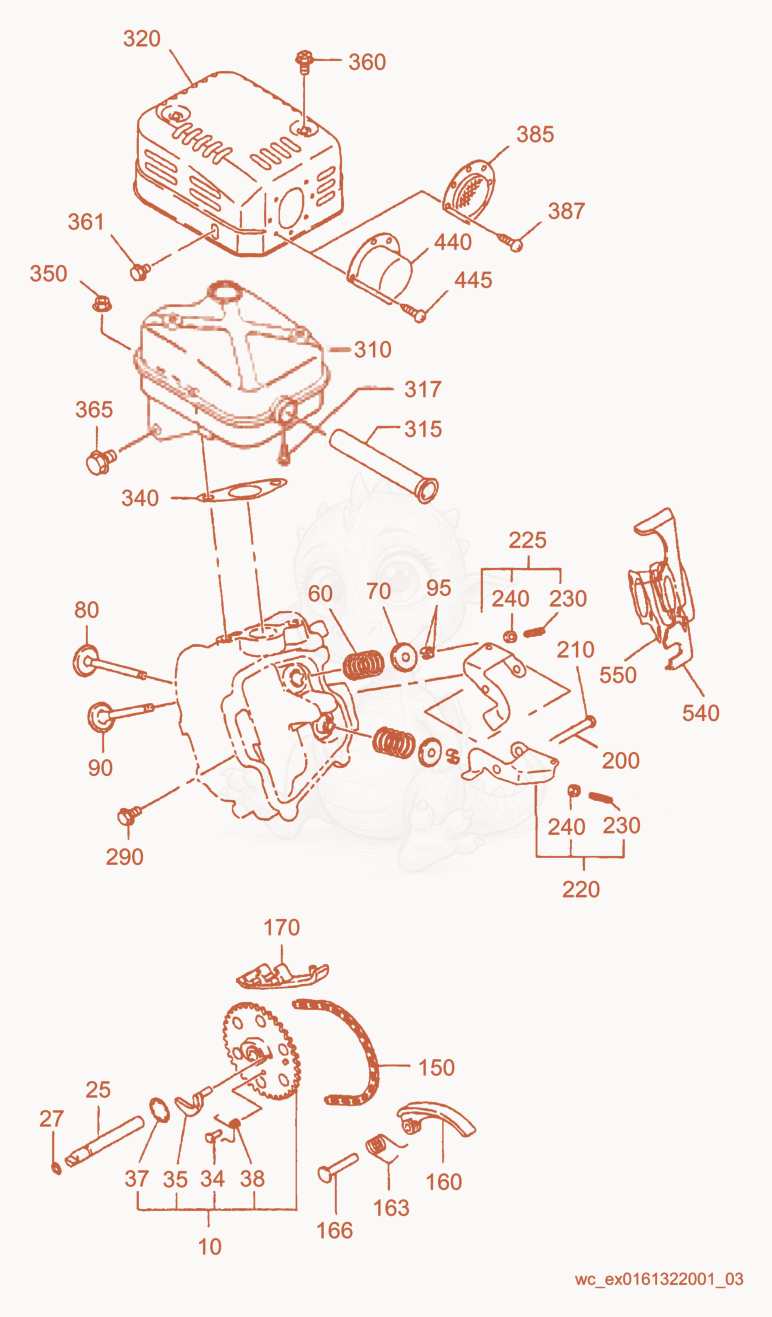

PT2 Camshaft/Muffler/Valves-New Style Diagram
- CAMSHAFT COMPL. - 5000156470×1
- PIN-CAMSHAFT - 5000156471×1
- O-Ring - 5000156472×1
- PIN-SPRING - 5000156473×1
- LEVER-RELEASE - 5000156474×1
- CLIP - 5000156475×1
- SPRING-RETURN - 5000205123×1
- SPRING-VALVE - 5000156477×2
- RETAINER-SPRING,VALVE - 5000156478×2
- VALVE-INTAKE - 5000156479×1
- VALVE-EXHAUST - 5000156480×1
- HOLDER-VALVE - 5000156481×4
- CHAIN-TIMING,COMPLETE - 5000156482×1
- CRANK - 5000156483×1
- SPRING-TENSION - 5000156484×1
- PIN-TENSIONER - 5000156485×1
- GUIDE-CHAIN - 5000156486×1
- 2005000205127Not stockedPin×1
- CLIP - 5000156106×1
- ROCKER ARM-INLET - 5000205128×1
- ROCKER ARM-EXHAUST - 5000205129×1
- SCREW-ADJUSTMENT - 5000205130×2
- nut - 5000205131×2
- BOLT-FLANGE - 5000156597×1
- MUFFLER - 5000156562×1
- Spark arrester - 5000156493×1
- SCREW-SELF TAPPING - 5000156494×1
- GUARD-MUFFLER - 5000156495×1
- GASKET-MUFFLER - 5000203771×1
- X-5000075270 NUT-FLANGE - 5000156497×2
- BOLT-TAPPING - 5000117241×2
- BOLT-FLANGE - 5000156645×1
- BOLT-FLANGE - 5000156498×1
- SCREEN COMPLETE - 5000156591×1
- SCREW-SELF TAPPING - 5000156494×1
- DEFLECTOR - 5000202070×1
- SCREW-SELF TAPPING - 5000156494×2
- 5405000156501Not stockedInsulator×1
- GASKET-INSULATOR - 5000156502×1
