PT3A

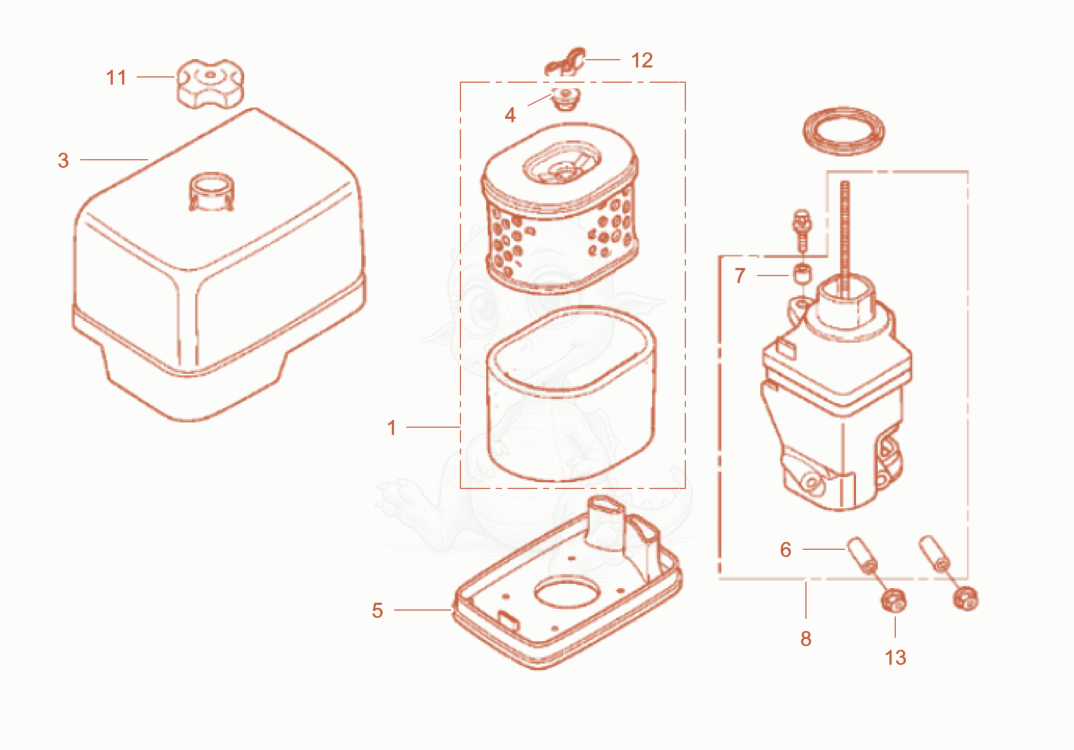

PT3A Air cleaner cpl Diagram

Exploded parts diagram of the Air cleaner cpl of a Wacker Neuson PT3A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100071566Not stocked
    Element,air cleaner×1
  • 25200008974
    $14.51
    air cleaner - 5200008974×1
  • 35100000583
    $6.39
    airfilter cover - 5100000583×1
  • 45000072343
    $6.93
    GROMMET .240 ID,METALCLAD - 5000072343×1
  • 55200001257
    $3.23
    Mount-air cleaner - 5200001257×1
  • 65000076372
    $5.61
    RING-COLLAR - 5000076372×2
  • 75000071035
    $5.49
    Sleeve - 5000071035×1
  • 85100000585
    $14.77
    Air Cleaner Mount - 5100000585×1
  • 95200000440
    $1.13
    Gasket-air cleaner mount - 5200000440×1
  • 115100000590Not stocked
    Wing nut×1
  • 125000071621
    $7.20
    NUT-WING M6 - 5000071621×1
  • 135000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
