PT3A

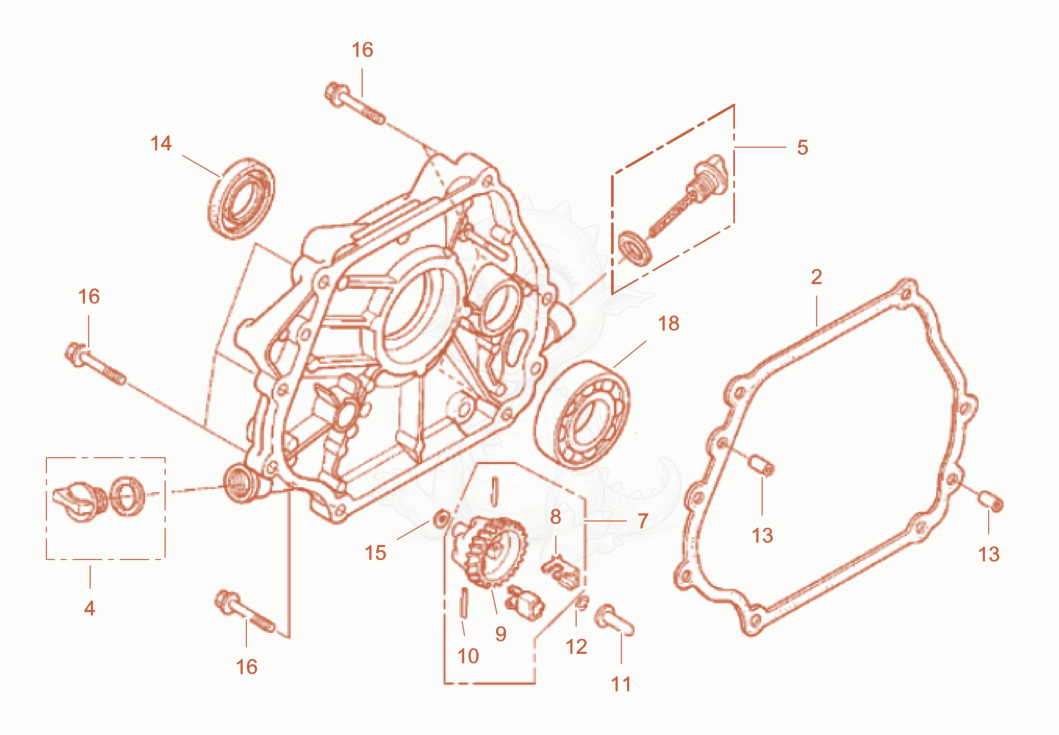

PT3A Crankcase cover cpl Diagram

Exploded parts diagram of the Crankcase cover cpl of a Wacker Neuson PT3A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100000349
    $7.36
    Crankcase Cover Gasket - 5100000349×1
  • 45100031607
    $8.10
    CAP-OIL FILLER - 5100031607×1
  • 55000217482
    $8.69
    Dipstick cpl. - 5000217482×1
  • 65100051314
    $16.57
    Seal - 5100051314×2
  • 75000081669
    $32.34
    GOVERNOR-ASSEMBLY - 5000081669×1
  • 85000151030
    $7.33
    WEIGHT-GOVERNOR - 5000151030×2
  • 95000081661
    $35.26
    HOLDER-GOVERNOR WEIGHT - 5000081661×1
  • 105000074634
    $2.66
    PIN-GOVERNOR WT RETAINER - 5000074634×2
  • 115000074632
    $4.44
    SLIDER-ENGINE GOVERNOR - 5000074632×1
  • 125000081615
    $2.07
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 135000081617
    $4.44
    PIN 8 X 12,DOWEL - 5000081617×2
  • 145000217495
    $16.17
    SEAL-ROTARY SHAFT 25 X 41 X 6 - 5000217495×1
  • 155000071639
    $0.98
    WASHER 6MM,PLAIN - 5000071639×1
  • 165000074629
    $3.44
    SCREW M8 X 35,HEX.FLANGED - 5000074629×7
  • 185000071700
    $37.53
    BEARING-RADIAL BALL, - 5000071700×1
