PT4A(I)

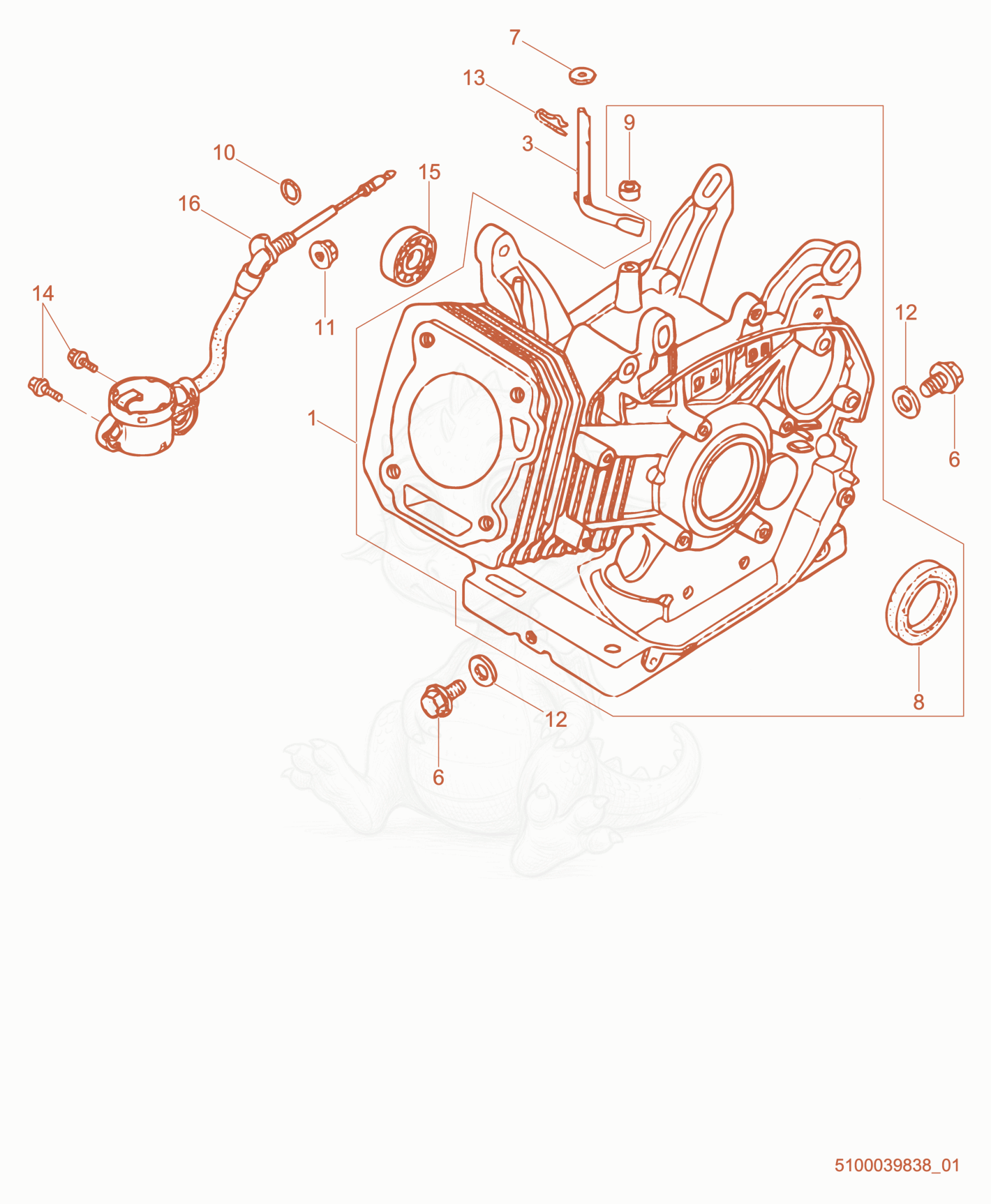

PT4A(I) Engine Block Diagram
- Cylinder cpl. - 5200000469×1
- SHAFT-GOVERNOR - 5000110114×1
- PLUG M12,HEX.FLANGE - 5000053993×2
- Washer - 5000074656×1
- Seal-shaft - 5200000471×1
- SEAL-OIL 8X14X5 - 5100039324×1
- O-RING 14 X 1.3 - 5000071082×1
- NUT M10,HEX.FLANGE - 5000072332×1
- SEAL-RING 12MM - 5000053994×2
- PIN-COTTER 10MM - 5000110110×1
- SCREW M6 X 12,HX.FLANGE - 5000072333×2
- BEARING-RADIAL BALL,6202 - 5000074640×1
- Switch oil safety - 5000217492×1
