PT6LS-PUMP W/SKID

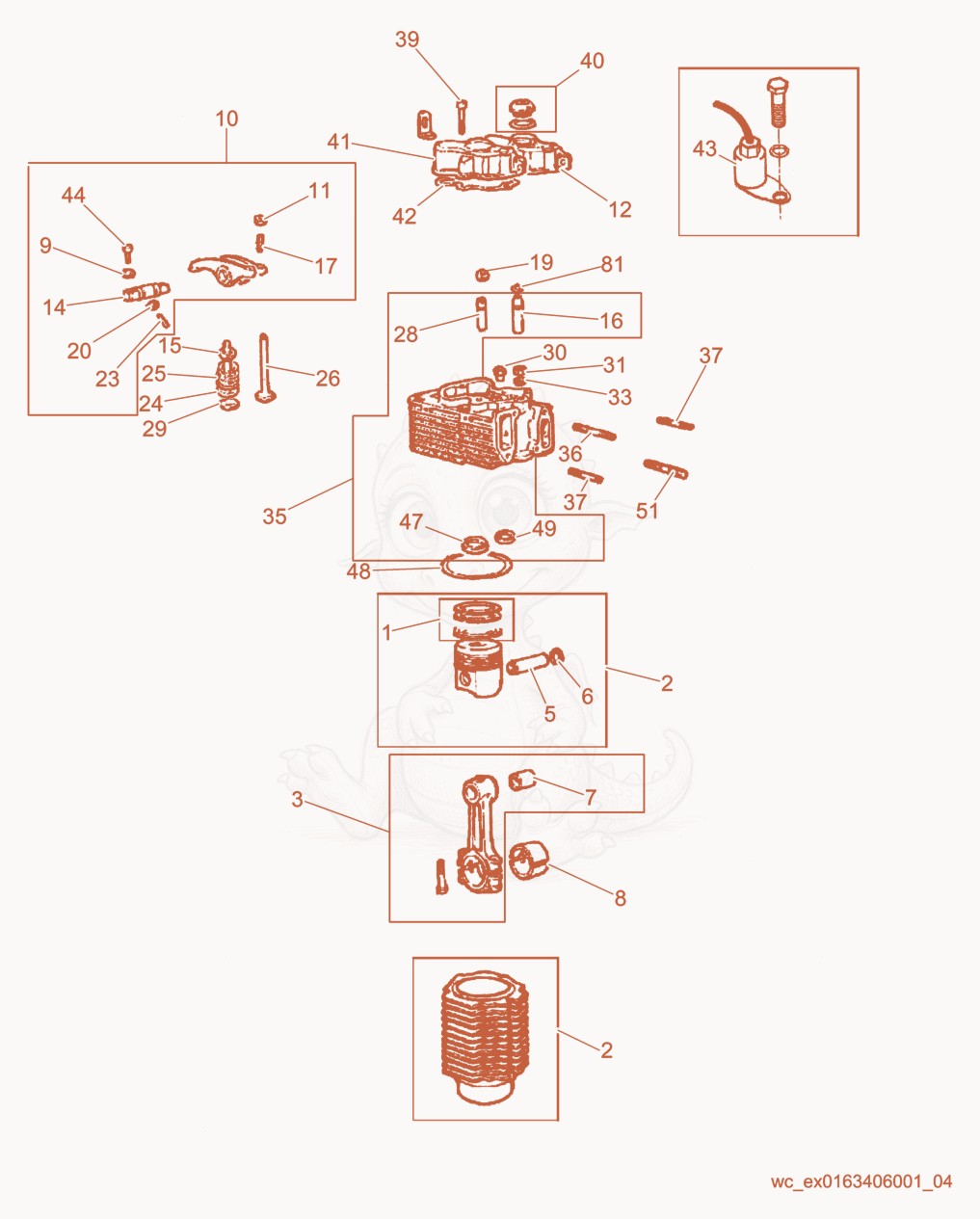

PT6LS Piston/Cylinder/Cylinder Head Diagram

Exploded parts diagram of the Piston/Cylinder/Cylinder Head of a Wacker Neuson PT6LS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000082314
    $173.33
    PISTON-RINGS,STANDARD - 5000082314×3
  • 25000208075
    $569.62
    PISTON CYLINDER ASSEMBLY - 5000208075×3
  • 35000082086
    $408.76
    Connecting rod - 5000082086×3
  • 55000082319
    $41.14
    PIN-PISTON - 5000082319×3
  • 65000082076
    $1.54
    RET.RING - 5000082076×6
  • 75000082094
    $16.82
    Bearing - 5000082094×3
  • 85000082095
    $47.33
    Bearing - 5000082095×3
  • 95000082288
    $1.30
    WASHER - 5000082288×6
  • 105000063541
    $234.12
    SET-ROCKER ARM REPLACEMENT - 5000063541×3
  • 115000159272
    $1.30
    nut - 5000159272×6
  • 125000113749
    $46.06
    COVER-VALVE W/HOLE - 5000113749×1
  • 145000082234
    $56.71
    Pin - 5000082234×3
  • 155000155205
    $25.36
    VALVE-RETAINER - 5000155205×6
  • 165000082205
    $14.68
    GUIDE-EXHAUST VALVE - 5000082205×3
  • 175000063552
    $23.28
    Screw - 5000063552×6
  • 195000110762
    $6.71
    CAP-INTAKE GUIDE - 5000110762×3
  • 205000082081
    $4.92
    Ring - 5000082081×3
  • 235000063553
    $14.99
    PIPE - 5000063553×3
  • 245000063545
    $2.84
    Washer - 5000063545×6
  • 255000217410
    $17.14
    SPRING-VALVE - 5000217410×6
  • 265000155203
    $48.90
    VALVE-EXHAUST - 5000155203×3
  • 285000110761
    $15.09
    VALVE-INTAKE GUIDE - 5000110761×3
  • 295000155204
    $38.80
    VALVE-INTAKE - 5000155204×3
  • 305000115492
    $19.66
    Nut - 5000115492×1
  • 315000084177
    $3.15
    Nut - 5000084177×12
  • 335000217412
    $4.19
    WASHER-10,5 DIA - 5000217412×12
  • 355000150998
    $930.85
    CYLINDER HEAD ASSEMBLY - 5000150998×3
  • 365000082268
    $7.50
    STUD M8 X 75 (87) - 5000082268×3
  • 375000083022
    $3.10
    STUD M8 X 40 - 5000083022×3
  • 395000084143
    $1.90
    SCREW M8 X 50 - 5000084143×6
  • 405000113750
    $9.58
    CAP-OIL FILL - 5000113750×1
  • 415000113748
    $51.73
    COVER-VALVE W/O HOLE - 5000113748×2
  • 425000063540
    $19.92
    GASKET - 5000063540×3
  • 435000083025
    $85.38
    SWITCH-HEAD TEMP.SENSOR - 5000083025×1
  • 445000083671
    $2.57
    Bolt - 5000083671×6
  • 475000082307
    $64.42
    SEAT-INTAKE VALVE - 5000082307×3
  • 485000083855Not stocked
    Cylinder head gasket×3
  • 485000086191
    $9.32
    GASKET-CYL.HEAD 0.65MM THICK - 5000086191×3
  • 485000082199
    $16.03
    NLA GASKET-CYL.HEAD 1.15MM THICK - 5000082199×3
  • 485000082198
    $9.65
    GASKET-CYL.HEAD 1.10MM THICK - 5000082198×3
  • 485000082196
    $9.65
    GASKET-CYL.HEAD 0.95MM THICK - 5000082196×3
  • 485000082195
    $10.06
    GASKET-CYL.HEAD 0.85MM THICK - 5000082195×3
  • 485000082194
    $8.18
    GASKET-CYL.HEAD 0.75MM THICK - 5000082194×3
  • 485000082193
    $10.28
    GASKET-CYL.HEAD 1.00MM THICK - 5000082193×3
  • 485000082192
    $9.22
    GASKET-CYL.HEAD 0.90MM THICK - 5000082192×3
  • 485000082191
    $8.59
    GASKET-CYL.HEAD 0.80MM THICK - 5000082191×3
  • 485000082190
    $10.34
    GASKET-CYL.HEAD 0.70MM THICK - 5000082190×3
  • 495000082308
    $57.44
    SEAT-EXHAUST VALVE - 5000082308×3
  • 515000157946
    $8.54
    STUD-EXHAUST,11LD ENGINE - 5000157946×3
  • 815000110762
    $6.71
    CAP-INTAKE GUIDE - 5000110762×3
