PT6LS-PUMP W/SKID

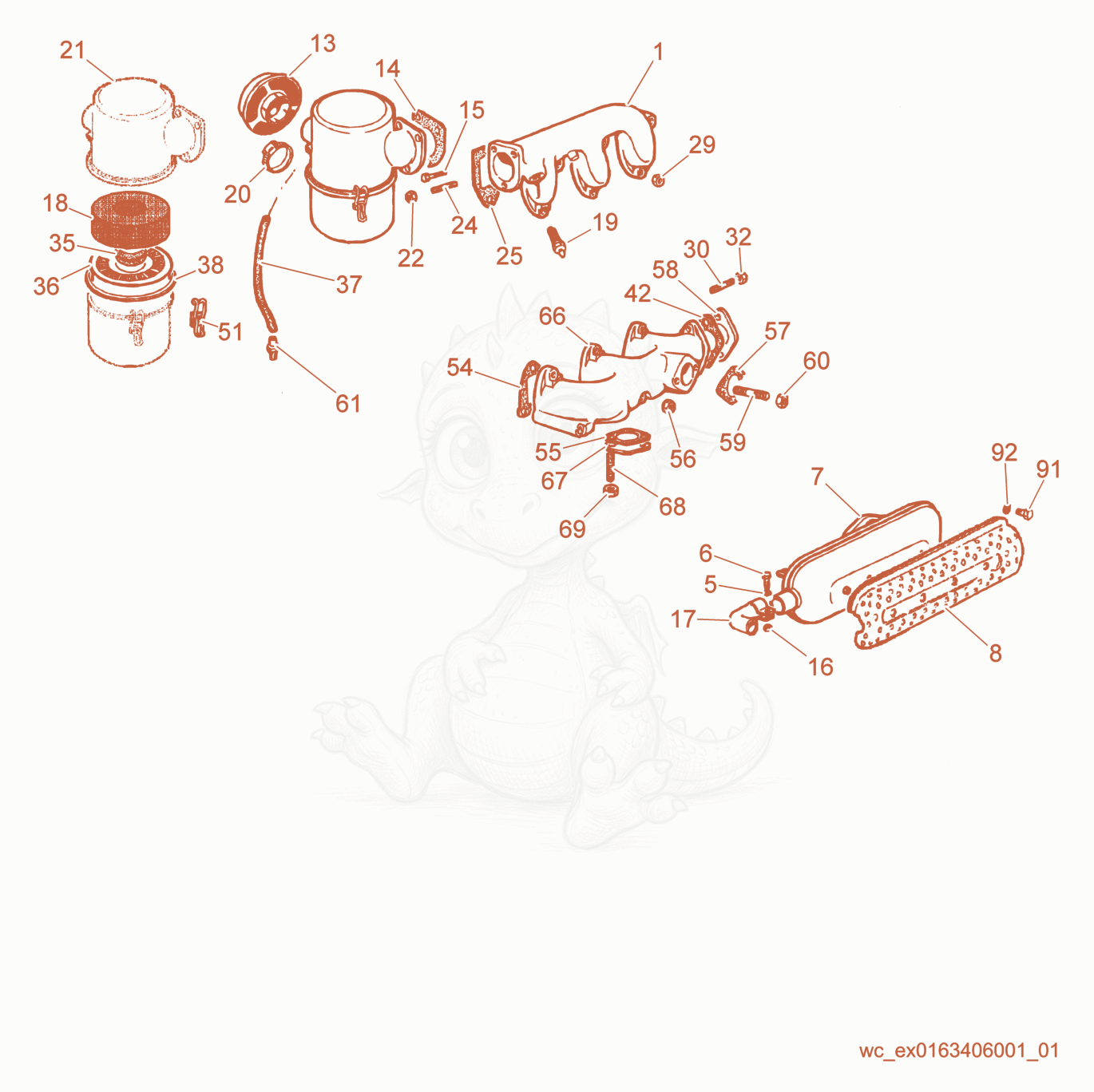

PT6LS Air Cleaner/Exhaust System/Manifolds Diagram
- MANIFOLD-INTAKE - 5000082122×1
- WASHER - 5000082288×1
- SCREW M8 X 20 - 5000203342×1
- MUFFLER - 5000082221×1
- MUFFLER-GUARD - 5000083023×1
- Cap - 5000082114×1
- Gasket - 5000082165×1
- Bolt - 5000083671×2
- NUT M8 - 5000082140×1
- ELBOW-EXHAUST - 5000082600×1
- Element - 5000118936×1
- GLOW PLUG - 5000064264×1
- Clamp - 5000082149×1
- AIR CLEANER ASSEMBLY - 5000083012×1
- NUT-FLANGED - 5000063700×3
- STUD M8 X 20 (32) - 5000082266×1
- GASKET-INTAKE MANIFOLD - 5000063591×1
- NUT-FLANGED - 5000063700×6
- STUD M8 X 20 (32) - 5000082266×2
- NUT-COPPER - 5000086331×2
- Seal - 5000118935×1
- ELEMENT-AIR FILTER - 5000082224×1
- Tube - 5000082347×1
- Gasket - 5000082203×1
- GASKET-EXHAUST SILENCER - 5000063708×1
- Hook - 5000082160×2
- GASKET-EXHAUST MANIFOLD - 5000063557×3
- GASKET-EXHAUST SILENCER - 5000063708×1
- NUT-COPPER - 5000086331×6
- GASKET-EXHAUST SILENCER - 5000063708×1
- PLATE-SAFETY - 5000082243×1
- STUD M8 X 20 (32) - 5000082266×2
- NUT-COPPER - 5000086331×2
- LINK-CONNECTION - 5000082279×1
- MANIFOLD-EXHAUST - 5000082123×1
- PLATE-SAFETY - 5000082243×1
- STUD M8 X 20 (32) - 5000082266×2
- NUT-COPPER - 5000086331×2
- PLUG - 5000084124×3
- WASHER - 5000082288×3
