PT6LS-PUMP W/SKID

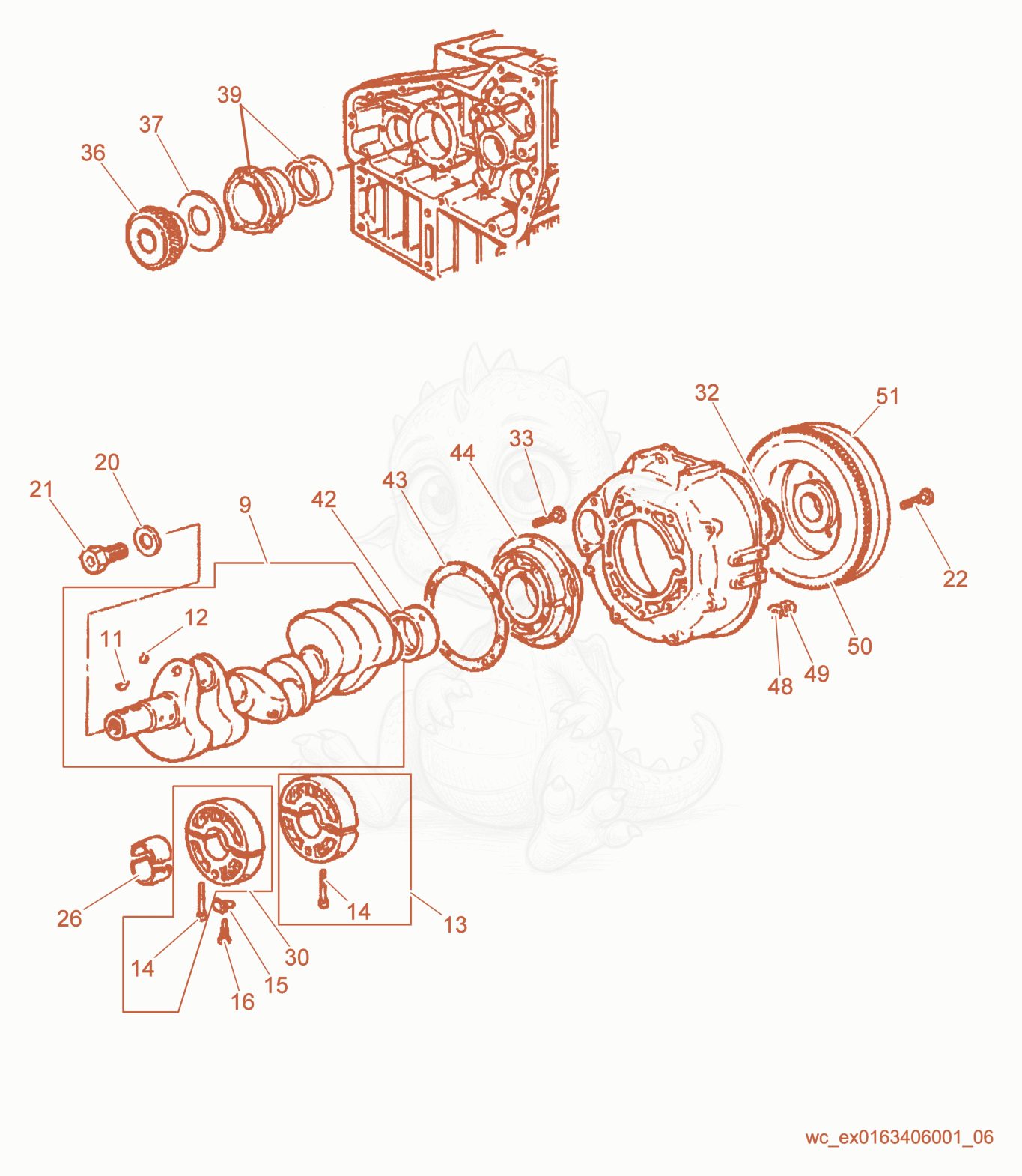

PT6LS Crankshaft/Flywheel Side Support/Flywheel Diagram
- Crankshaft - 5000082064×1
- KEY-WOODRUFF 6 X 8 - 5000063612×2
- PLUG 8 DIA. - 5000159455×3
- SUPPORT-FLYWHEEL SIDE MID - 5000082327×1
- SCREW M8 X 55 - 5000084168×4
- PLATE - 5000118944×2
- Screw - 5000082102×2
- Washer - 5000118943×1
- Screw - 5000082101×1
- Screw - 5000082103×6
- BEARING-SUPPORT,STD - 5000082092×2
- SUPPORT-GEARSIDE,MIDDLE - 5000082328×1
- SEAL-RING - 5000082072×1
- SCREW M8 X 25 - 5000110755×7
- Gear - 5000082207×1
- Ring - 5000083006×1
- SUPPORT-CRANKCASE - 5000082326×1
- Bearing - 5000082093×1
- Gasket - 5000082187×1
- SUPPORT - 5000082325×1
- Washer - 5000082289×11
- NUT M10 - 5000083011×11
- GEAR-RING - 5000082133×1
- FLYWHEEL-ASSEMBLY W/GEAR - 5000083028×1
