PT6LT(I)-PUMP W/TRAILER,T4, EU

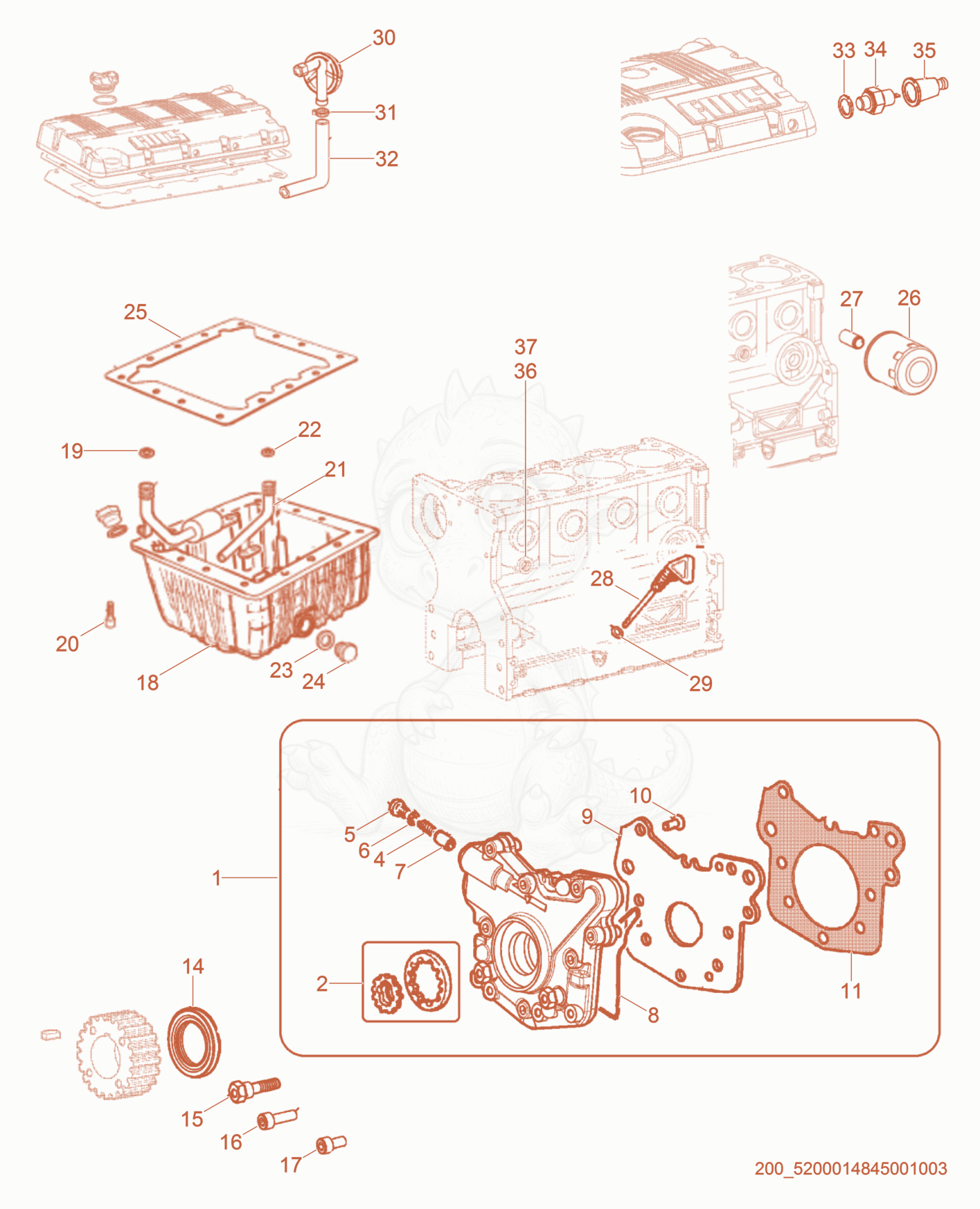

PT6LT(I) Lubrication System Diagram
- PUMP-OIL - 5000211359×1
- 25200015523Not stockedRotor×1
- SPRING-OIL PUMP - 5000159312×1
- PLUG-OIL PUMP - 5000159450×1
- WASHER-COPPER - 5000082184×1
- ROD-DRIVE - 5000159330×1
- O-ring - 5000160178×1
- SCREW M6 X 1 X 16 - 5000159478×1
- SEAL-LIP 32X50X6 - 5000155734×1
- SCREW-SPECIAL - 5000159484×2
- SCREW-HEX HD CAP - 5000215479×1
- SCREW M8 X 20 - 5000084169×6
- 185200015524Not stockedOil pan×1
- O-RING - 5000159228×1
- BOLT M6 X 1 X 12 - 5000159253×23
- 215200015525Not stockedHose×1
- O-RING - 5000159235×1
- Copper Washer 18x24x1 - 5000159568×2
- PLUG M18 - 5000159452×2
- GASKET - 5000215712×1
- 265200015526Not stockedOil filter×1
- CONNECTOR-OIL FILTER - 5000159341×1
- 285200015527Not stockedOil dipstick×1
- SEAL-OIL,RUBBER - 5000215690×3
- VALVE-PRESSURE - 5000155745×1
- clamp - 5000160201×2
- PIPE-DRAIN - 5000159460×1
- WASHER-COPPER - 5000082184×1
- 345200015538Not stockedOil pressure switch×1
- ELBOW - 5000082254×1
- WASHER-COPPER - 5000159299×1
- Plug - 5000215530×1
