PT6LT

PT6LT ACCESSORIES/ ALTERNATOR/ MOTOR/ SWITCH Diagram

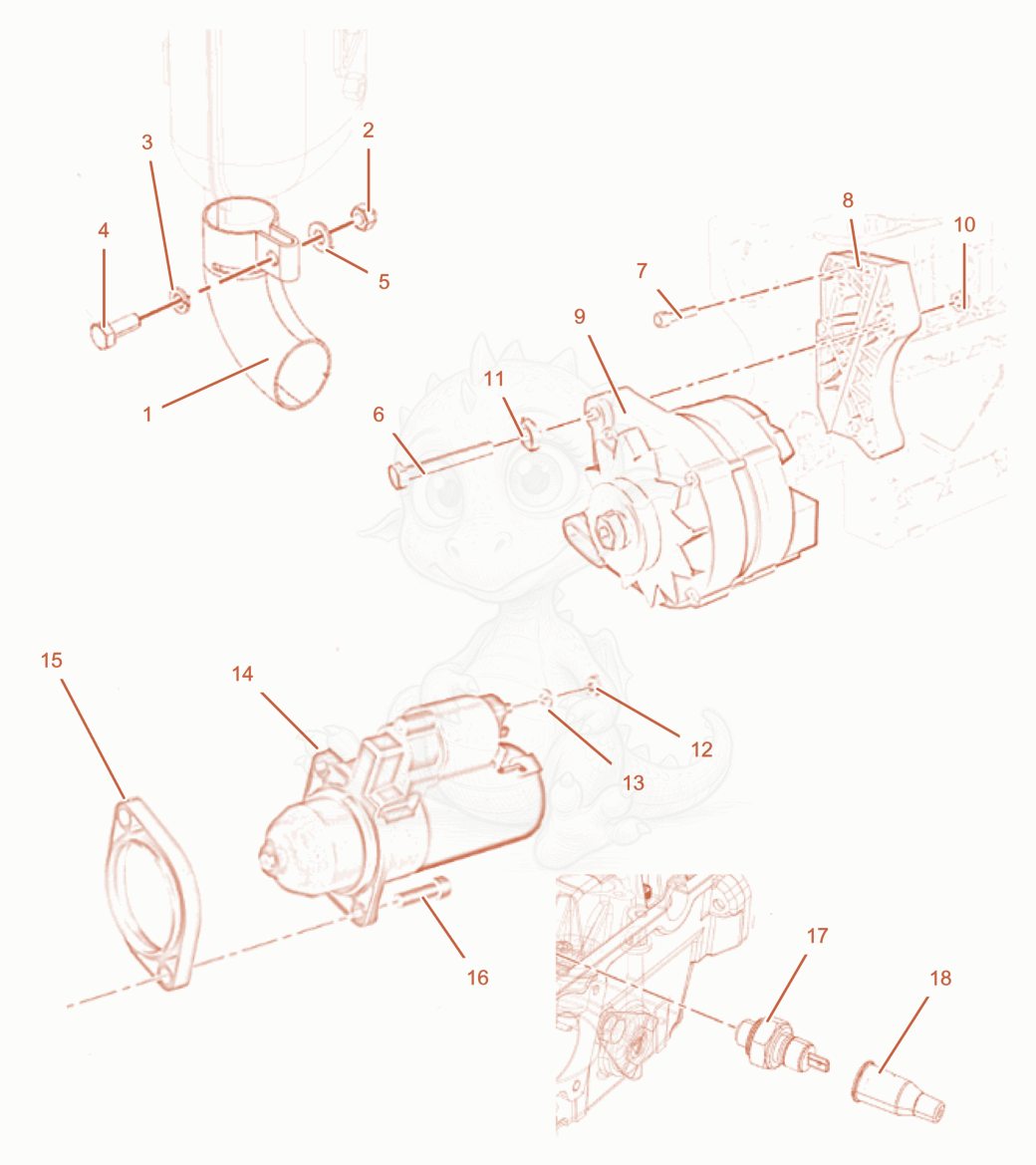

Exploded parts diagram of the ACCESSORIES/ ALTERNATOR/ MOTOR/ SWITCH of a Wacker Neuson PT6LT, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100062904
$150.57
PIPE END - 5100062904×1
25100062905
$6.47
NUT - 5100062905×1
35100062906
$4.88
WASHER - 5100062906×1
45100062907
$6.47
BOLT - 5100062907×1
55100062908
$6.47
WASHER - 5100062908×1
65100062909
$17.81
BOLT - 5100062909×1
75100062910
$8.22
ALLEN SCREW - 5100062910×1
85100062911
$305.21
SUPPORT - 5100062911×1
95100062912
$1,546.81
ALTERNATOR - 5100062912×1
105100062913
$6.47
NUT - 5100062913×1
115100062914
$20.94
WASHER - 5100062914×1
125100062915
$4.88
NUT - 5100062915×1
135100062916
$4.88
WASHER - 5100062916×1
145100062917
$2,907.00
STARTING MOTOR - 5100062917×1
155100062918
$164.44
FLANGE - 5100062918×1
165100062919
$14.51
ALLEN SCREW - 5100062919×1
175100062920
$33.64
PRESSURE SWITCH - 5100062920×1
185100062921
$14.51
GROMMET - 5100062921×1
