PT6LT

PT6LT ASM_Trailer Wiring Diagram

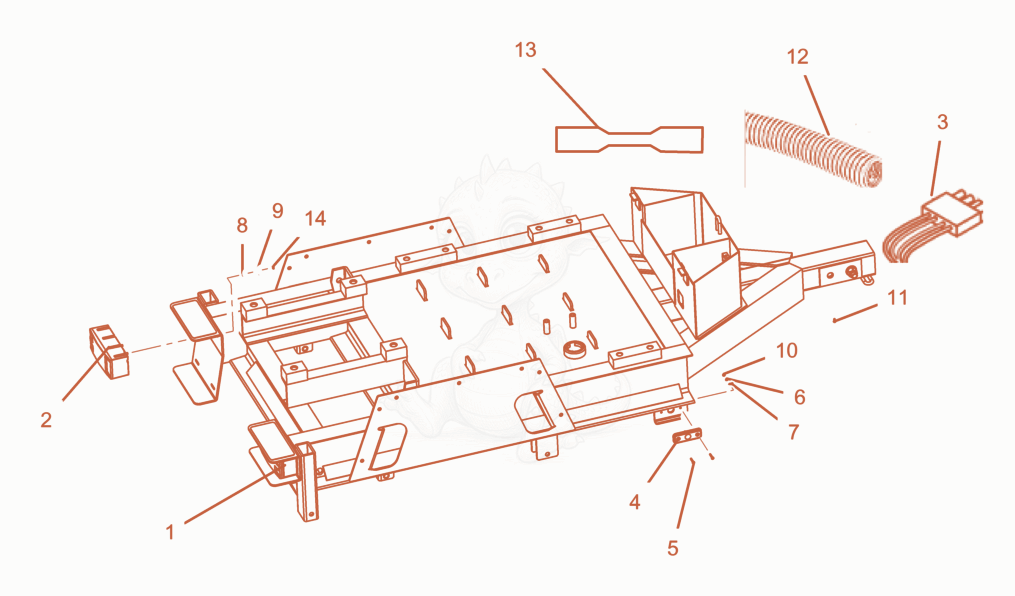

Exploded parts diagram of the ASM_Trailer Wiring of a Wacker Neuson PT6LT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100058810
    $51.16
    Trailer light LED-RH - 5100058810×1
  • 25100058811
    $52.49
    Trailer light LED-LH - 5100058811×1
  • 35100058809
    $50.58
    Trailer wiring harness - 5100058809×1
  • 45100058774
    $27.27
    Side Light - LED - 5100058774×2
  • 55000403851
    $2.32
    Screw M4 x 25,Mach Pan Hd. - 5000403851×4
  • 65100058776
    $0.10
    DIN 6797 Lock washer A4.3 A2C - 5100058776×3
  • 75100058799
    $1.17
    Terminal-ring 22-16GA, 0.169 ID - 5100058799×3
  • 85100060036
    $0.26
    DIN6797 Lock washer A6.4 A2C - 5100060036×2
  • 95100060037
    $1.11
    Terminal-ring 22-18GA 0.25ID - 5100060037×2
  • 101000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×4
  • 115000404307
    $0.15
    Screw M4 x 10,Pan Hd. - 5000404307×1
  • 125000077895
    $0.33
    WIRE-LOOM,BULK,.350 ID - 5000077895×4
  • 135000155117
    $0.23
    TERMINAL-SPLICE 16-14 - 5000155117×7
  • 145000155519
    $0.06
    NUT M6,FLANGED - 5000155519×4
