RC70p

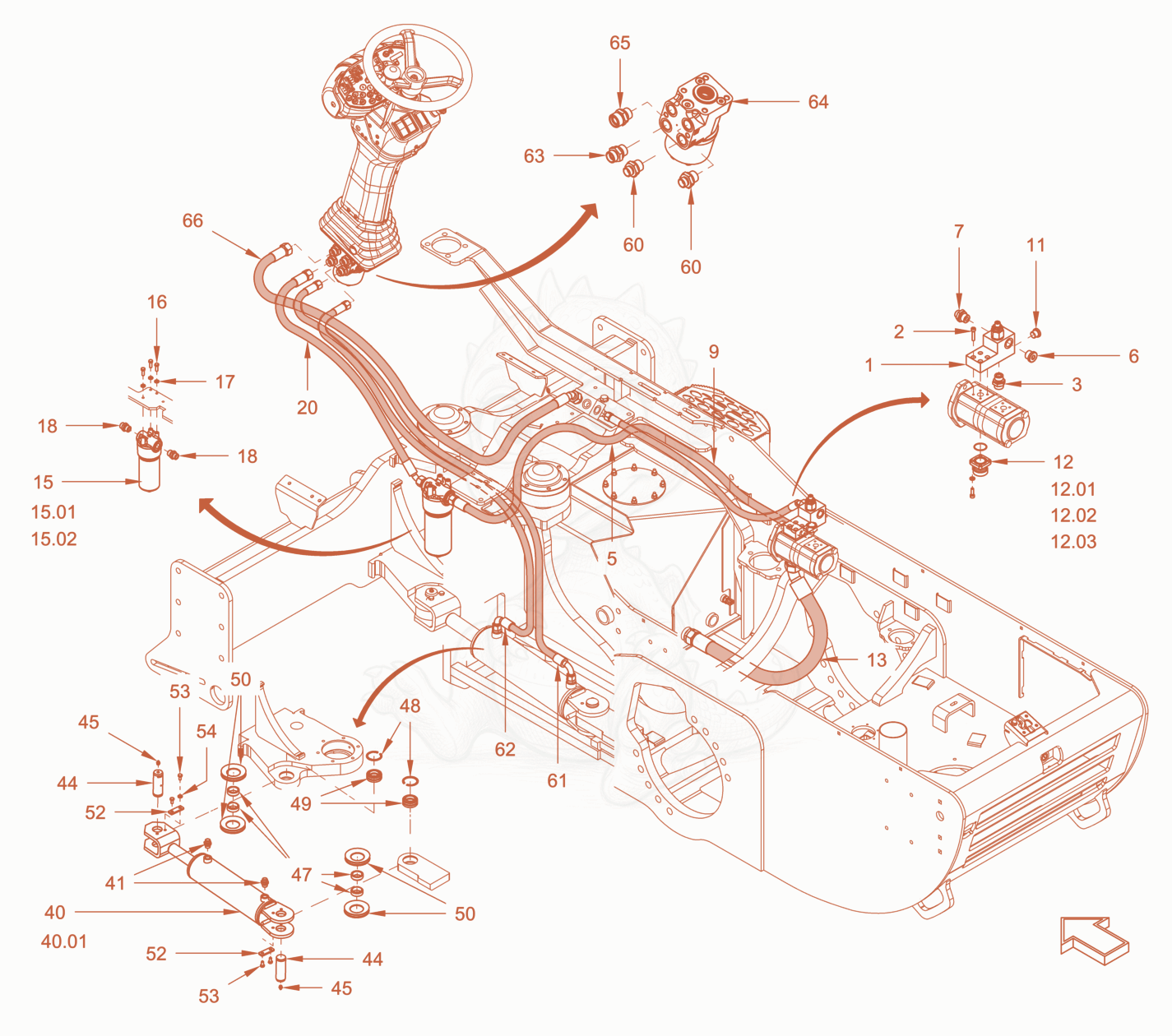

RC70PDPFCAB steering Diagram

Exploded parts diagram of the steering of a Wacker Neuson RC70PDPFCAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100023106
    $837.53
    valve block - 5100023106×1
  • 25100011481
    $1.49
    Cheese-head screw - 5100011481×4
  • 35100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 55100070762Not stocked
    hose×1
  • 65100011665
    $8.69
    Screw plug - 5100011665×1
  • 75100013433
    $14.53
    Straight screwed socket - 5100013433×1
  • 95100023590Not stocked
    Hose×1
  • 115100011855
    $6.19
    Screw plug - 5100011855×1
  • 125100011500
    $3.97
    O-ring seal - 5100011500×1
  • 125100012723
    $1.57
    Cheese-head screw - 5100012723×4
  • 125100012937
    $2.53
    Washer - 5100012937×4
  • 125100023115
    $144.24
    straight flange joint - 5100023115×1
  • 135100023458Not stocked
    Hose×1
  • 155100023055
    $122.97
    filter - 5100023055Unknown×1
  • 155100039074Not stocked
    Set Of Seals×1
  • 155100063876
    $102.44
    filter insert - 5100063876Unknown×1
  • 155100085872Not stocked
    joint torique×1
  • 155100085873Not stocked
    cartouche filtrante×1
  • 155100085874Not stocked
    filtre (huile hydraulique)×1
  • 165100012613
    $1.57
    Hexagon screw - 5100012613×3
  • 175100012966
    $1.57
    Locking washer - 5100012966×3
  • 185100012190
    $21.21
    Straight screwed socket - 5100012190×2
  • 205100023446Not stocked
    Hose×1
  • 405100023108
    $743.61
    set of seals - 5100023108×1
  • 405100026006
    $1,962.46
    steering cylinder - 5100026006×1
  • 415100022945
    $9.42
    straight screwed socket - 5100022945×2
  • 445100023223
    $161.80
    bolt - 5100023223×2
  • 455100022845
    $2.84
    greasing nipple - 5100022845×2
  • 475100023284
    $15.19
    distance ring - 5100023284×4
  • 485100022860
    $3.97
    circlip - 5100022860×2
  • 495100022927
    $153.92
    radial rod end bearing - 5100022927×2
  • 505100011761
    $39.63
    Sealing ring - 5100011761×4
  • 525100023169Not stocked
    Metal plate×2
  • 535100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 545100012966
    $1.57
    Locking washer - 5100012966×4
  • 605100013433
    $14.53
    Straight screwed socket - 5100013433×2
  • 615100023408
    $102.32
    hose - 5100023408×1
  • 625100070763Not stocked
    hose×1
  • 635100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 645100070764Not stocked
    steering unit×1
  • 655100013477
    $14.10
    Straight screwed socket - 5100013477×1
  • 665100023447Not stocked
    Hose×1
