Vibration Roller RC70 VO US

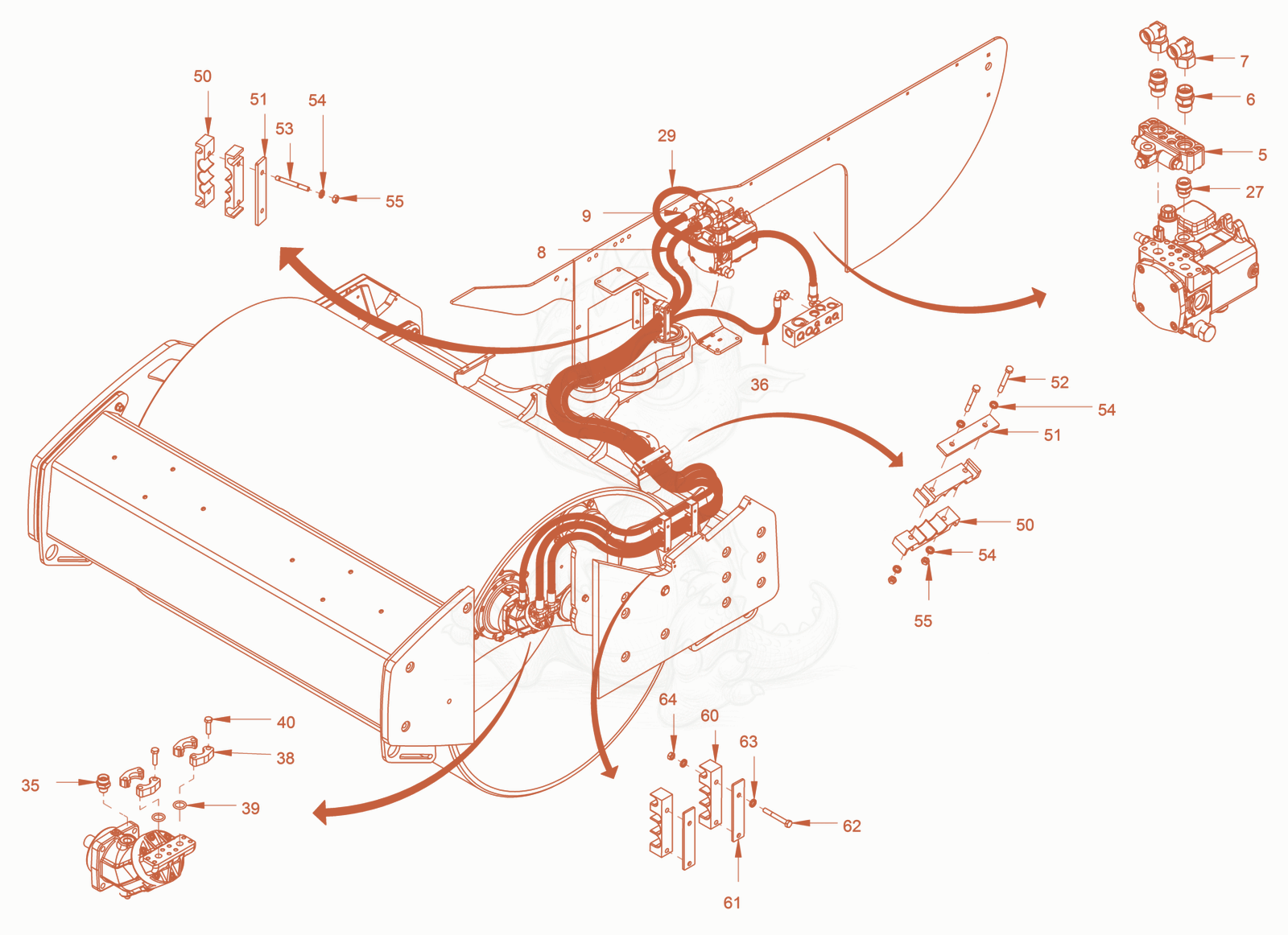

RC70VOUS Vibration Drive Diagram

Exploded parts diagram of the Vibration Drive of a Wacker Neuson RC70VOUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100023274Not stocked
    Feeding pressure valve×1
  • 65100023267Not stocked
    Straight screwed socket×2
  • 75100013484
    $84.74
    Elbow adjustable - 5100013484×2
  • 85100023425
    $464.62
    hose - 5100023425×1
  • 95100023424
    $512.19
    hose - 5100023424×1
  • 275100012180
    $470.32
    Set of seals - 5100012180×1
  • 295100040613Not stocked
    hose×1
  • 355100022933
    $18.14
    straight screwed socket - 5100022933×1
  • 365100022943
    $119.41
    hose - 5100022943×1
  • 385100022885
    $18.98
    sae-flange half - 5100022885×4
  • 395100022884
    $1.57
    o-ring seal - 5100022884×2
  • 405100013510
    $1.57
    Hexagon screw - 5100013510×8
  • 505100023058
    $18.63
    half-clip - 5100023058×4
  • 515100023085
    $1,717.90
    shaft - 5100023085×2
  • 525100040612Not stocked
    hexagon screw×2
  • 535100039073
    $3.06
    Stud Screw - 5100039073×2
  • 545100012966
    $1.57
    Locking washer - 5100012966×6
  • 555100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 605100023356
    $234.21
    half-clip - 5100023356×2
  • 615100023418Not stocked
    Top cover×2
  • 625100040595Not stocked
    hexagon screw×4
  • 635100012966
    $1.57
    Locking washer - 5100012966×8
  • 645100012546
    $1.57
    Hexagon nut - 5100012546×4
