Vibration Roller RC70 VO US

RC70VOUS Fuel System Diagram

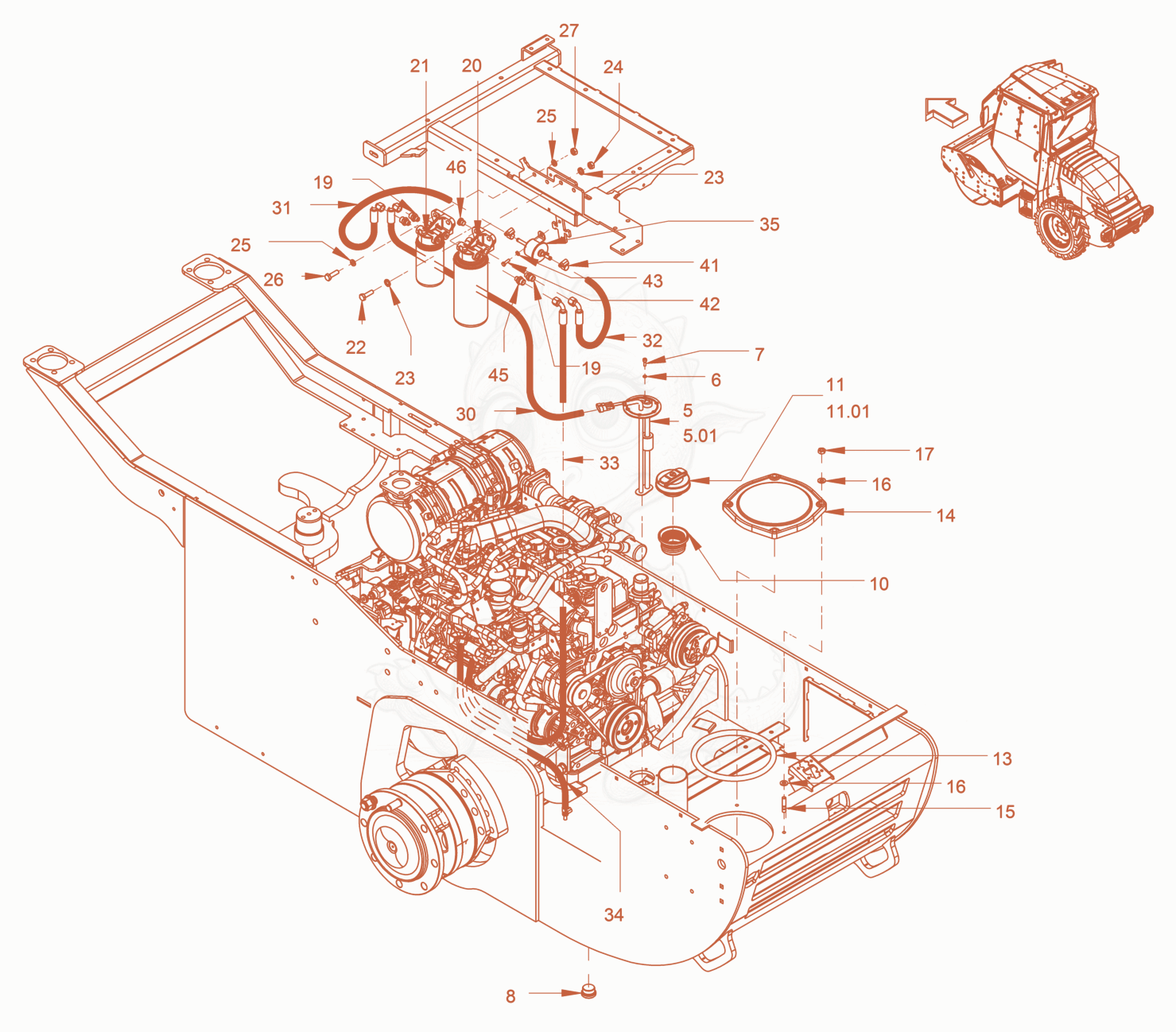

Exploded parts diagram of the Fuel System of a Wacker Neuson RC70VOUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100023297
    $853.71
    fuel gauge - 5100023297×1
  • 55100013236
    $23.18
    Seal - 5100013236×1
  • 65100013502
    $1.57
    Sealing ring - 5100013502×6
  • 75100011443
    $1.57
    Cheese-head screw - 5100011443×6
  • 85100023170
    $28.68
    locking screw - 5100023170×1
  • 105100012034
    $36.06
    Threaded insert - 5100012034×1
  • 115100011829
    $240.82
    Tank cap, with lock - 5100011829×1
  • 115100013557
    $20.31
    Key - 5100013557×1
  • 135100022972
    $34.96
    o-ring seal - 5100022972×1
  • 145100022971
    $330.78
    lid - 5100022971×1
  • 155100012978
    $5.10
    Stud bolt - 5100012978×4
  • 165100012967
    $1.57
    Locking washer - 5100012967×8
  • 175100012547
    $1.49
    Hexagon nut - 5100012547×4
  • 195100013472
    $9.52
    Straight screwed socket - 5100013472×3
  • 205100023453
    $342.63
    fuel filter - 5100023453×1
  • 215100023444
    $252.71
    fuel filter cartridge - 5100023444×1
  • 225100012523
    $1.49
    Hexagon screw - 5100012523×3
  • 235100012967
    $1.57
    Locking washer - 5100012967×6
  • 245100012547
    $1.49
    Hexagon nut - 5100012547×3
  • 255100011918
    $1.57
    Serrated lock washer - 5100011918×3
  • 265100023419
    $3.32
    hexagon screw - 5100023419×1
  • 275100023124
    $3.28
    hexagonal nut - 5100023124×1
  • 305100023593Not stocked
    Hose×1
  • 315100023594Not stocked
    Hose×1
  • 325100023595Not stocked
    Hose×1
  • 335100023596Not stocked
    Hose×1
  • 345100023597Not stocked
    Hose×1
  • 355100023485
    $912.40
    fuel pump - 5100023485×1
  • 415100013179
    $5.50
    Hose clip - 5100013179×6
  • 425100012608
    $1.57
    Hexagon screw - 5100012608×2
  • 435100012965
    $3.01
    Locking washer - 5100012965×2
  • 455100025887Not stocked
    Straight screwed socket×1
  • 465100024988Not stocked
    Locking screw×1
