RD10Yehf LRC

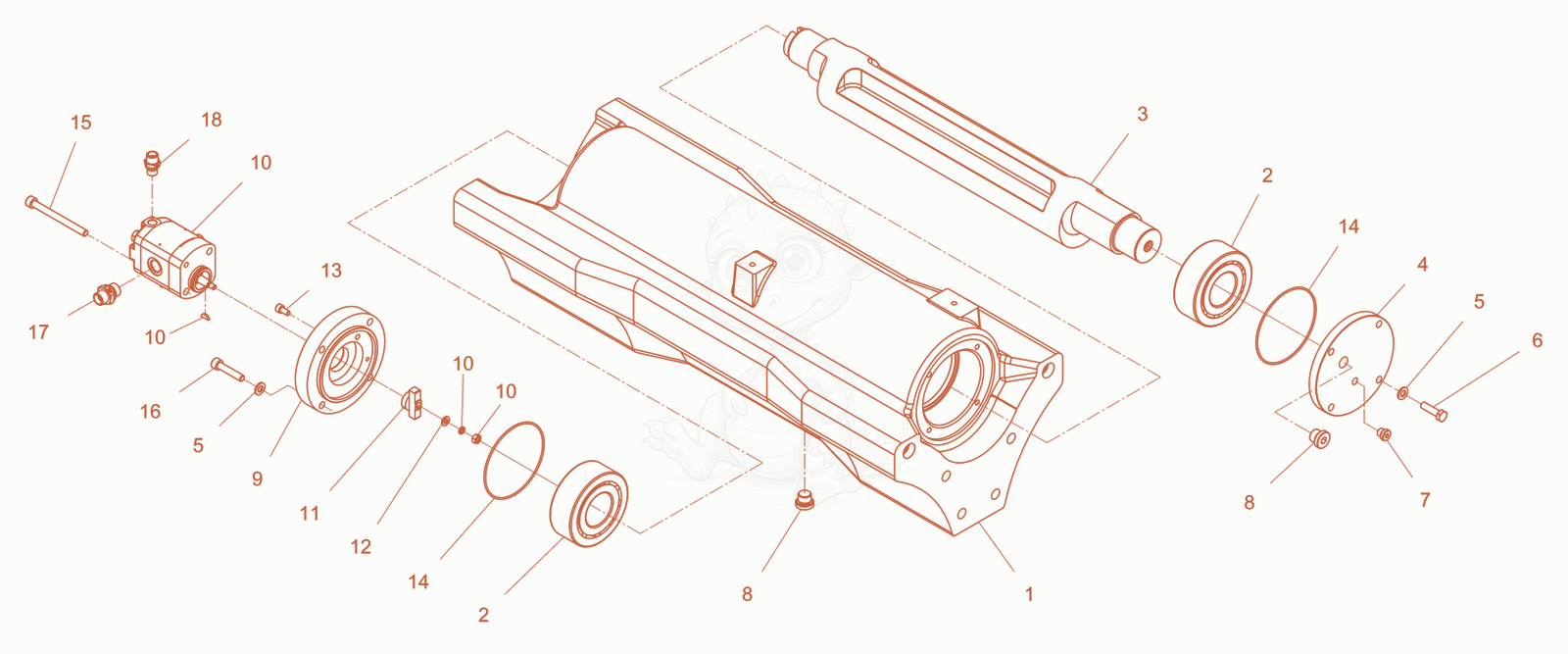

RD10YEHFLRC Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson RD10YEHFLRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006945Not stocked
    Exciter housing×1
  • 25100006789
    $973.69
    Spherical roller bearing - 5100006789×2
  • 35100006946Not stocked
    Shaft×1
  • 45100006787
    $142.56
    Cover - 5100006787×1
  • 55100006553
    $0.88
    Washer - 5100006553×8
  • 65100006541
    $6.37
    Hexhead screw - 5100006541×4
  • 75100006628
    $17.51
    Plug - 5100006628×1
  • 85100006662
    $22.11
    Plug - 5100006662×2
  • 95100006788
    $209.11
    Flange - 5100006788×1
  • 105100006904
    $112.84
    Gasket set - 5100006904Unknown×1
  • 105100006947Not stocked
    Hydraulic motor×1
  • 115100006783
    $121.07
    Clutch - 5100006783×1
  • 125100006546
    $0.35
    Washer - 5100006546×1
  • 135100006723
    $4.25
    Cyl. Head screw - 5100006723×1
  • 145100006786
    $13.71
    O-ring 98x2 - 5100006786×2
  • 155100006614
    $9.59
    Cyl. Head screw - 5100006614×2
  • 165100006617
    $4.82
    Cyl. Head screw - 5100006617×4
  • 175100006572
    $15.08
    Male stud connector - 5100006572×2
  • 185100006845
    $14.60
    Male stud connector - 5100006845×1
