RD10Yehf LRC

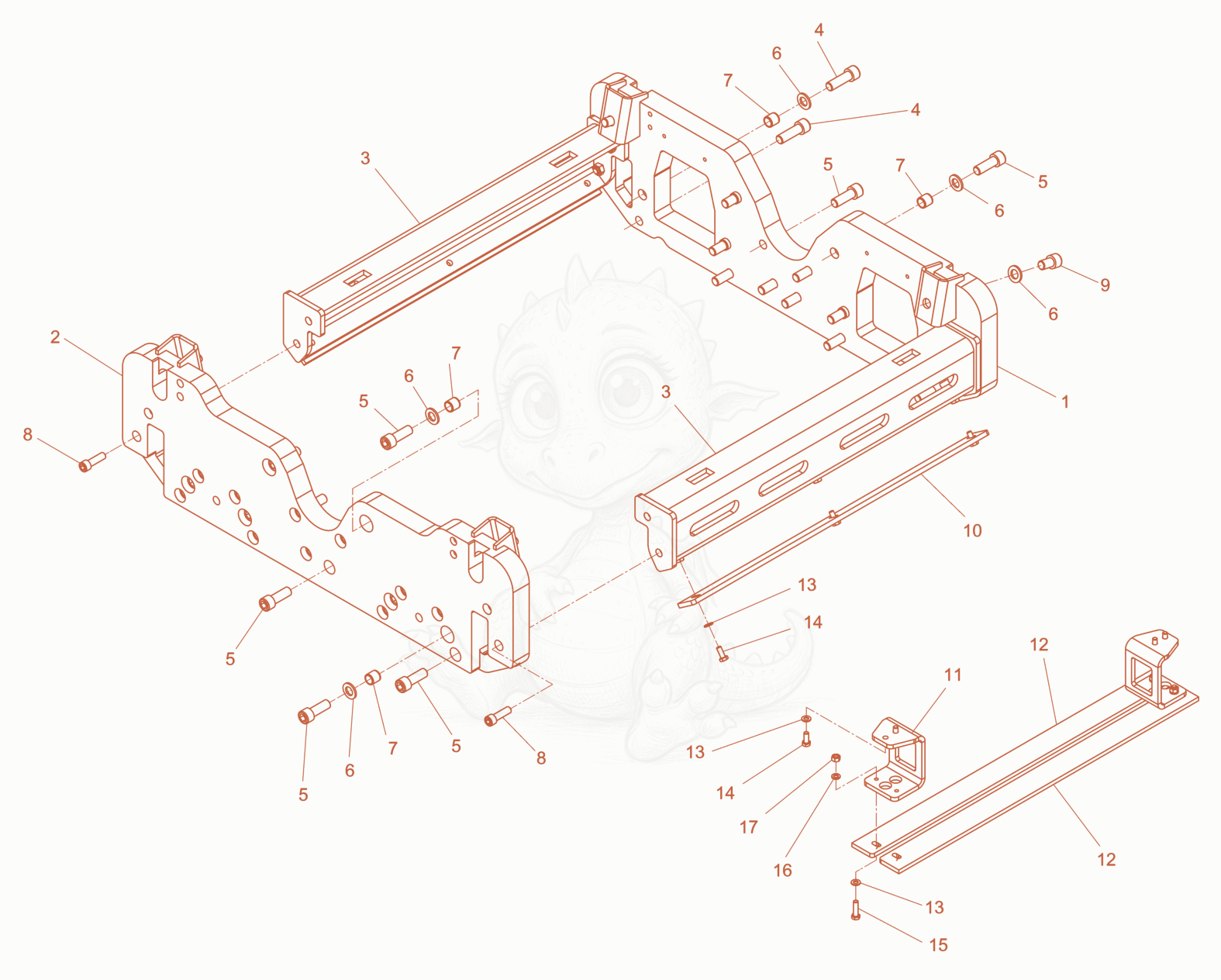

RD10YEHFLRC Side plate cpl. Diagram

Exploded parts diagram of the Side plate cpl. of a Wacker Neuson RD10YEHFLRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006967Not stocked
    Side plate right×1
  • 25100006968Not stocked
    Side plate left×1
  • 35100006969Not stocked
    Holder outer×2
  • 45100006618
    $12.20
    Cheese head screw M16x50 - 5100006618×8
  • 55100006619
    $9.24
    Cheese head screw M16x45 - 5100006619×24
  • 65100006552
    $4.82
    Washer - 5100006552×16
  • 75100006603
    $34.87
    busch - 5100006603×12
  • 85100006621
    $6.85
    Cheese head screw M12x40 - 5100006621×8
  • 95100006620
    $9.24
    Cyl. Head screw - 5100006620×4
  • 105100006970Not stocked
    Outer scraper×2
  • 115100006971Not stocked
    Holder inner×2
  • 125100006972Not stocked
    Inner scraper×2
  • 135100006553
    $0.88
    Washer - 5100006553×14
  • 145100006559
    $4.25
    Hexhead screw - 5100006559×10
  • 155100006541
    $6.37
    Hexhead screw - 5100006541×4
  • 165100006973Not stocked
    Washer×4
  • 175100006543
    $3.00
    Nut - 5100006543×4
