RD10Yehf LRC

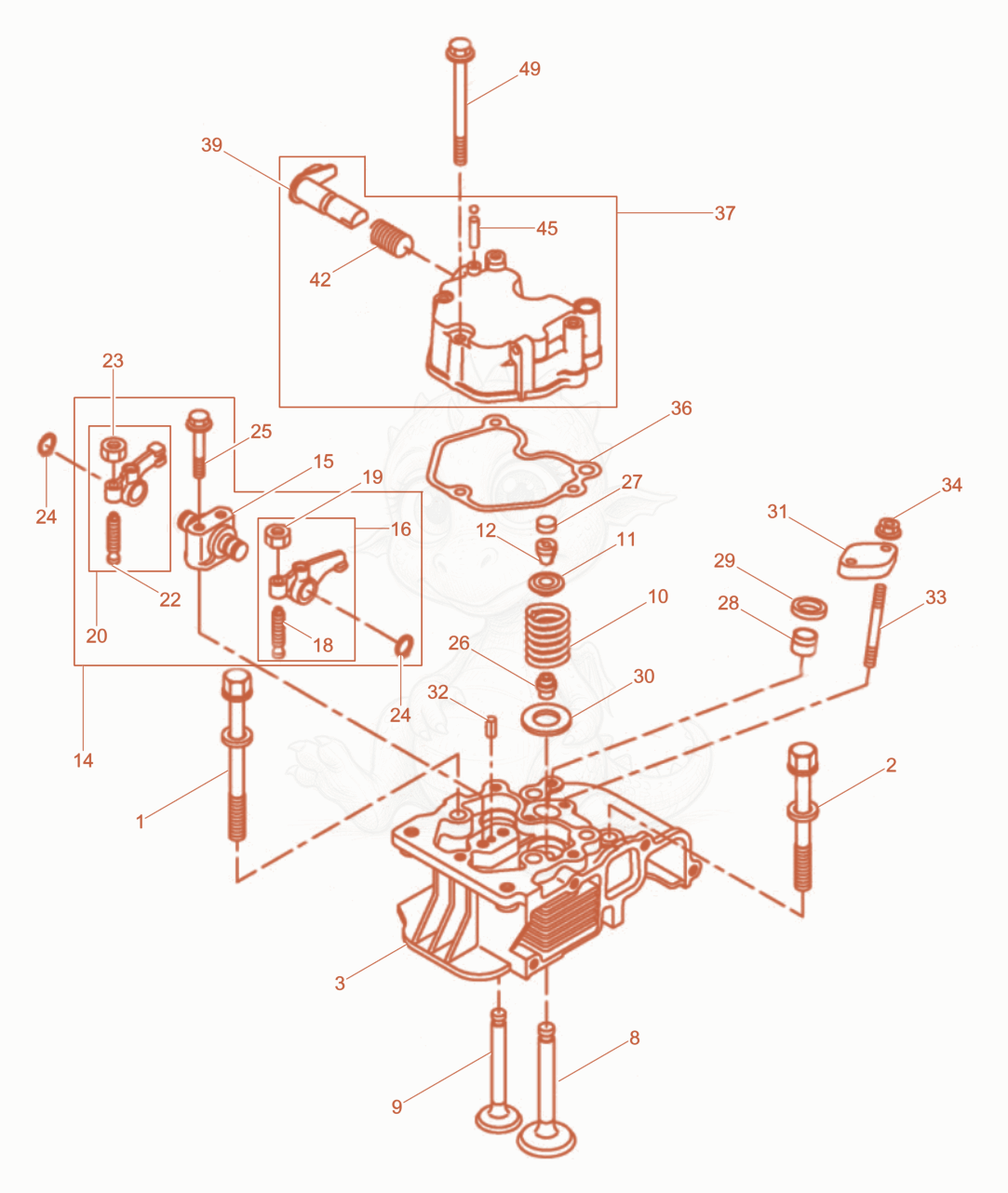

RD10YEHFLRC Cylinder head Diagram
- BOLT - 5100031834×2
- BOLT - 5100031835×2
- CYLINDER HEAD ASSY - 5100031836×1
- VALVE-INTAKE - 5100031837×1
- VALVE-EXHAUST - 5100031838×1
- SPRING-VALVE - 5100031839×2
- RETAINER-SPRING - 5100031840×2
- COTTER - 5100031841×2
- SUPPORT- ARM ASSY - 5100031842×1
- SUPPORT-ROCKER ARM - 5100031843×1
- ARM-ROCKER - 5100031844×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- ARM-ROCKER - 5100031845×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- RING-RETAINING - 5100030492×2
- BOLT - 5100031846×2
- 265100059779Not stockedGasket×2
- CAP - 5100031847×2
- Gasket - 5000217896×1
- 295100059780Not stockedValve seat×1
- 305100059720Not stockedDisc×2
- Bracket - 5000217849×1
- PIN 4 X 8 - 5000073641×1
- STUD M6 X 55 - 5000073630×2
- NUT-M6 - 5000119722×2
- GASKET-CYLINDER HEAD - 5100031848×1
- COVER-ASSY CYLINDER HEAD - 5100031849×1
- Shaft - 5000217837×1
- Spring - 5000217898×1
- PIN 3 X 16 - 5000073648×1
- BOLT-M6 X 65 - 5100031850×3
