RD10Yehf LRC

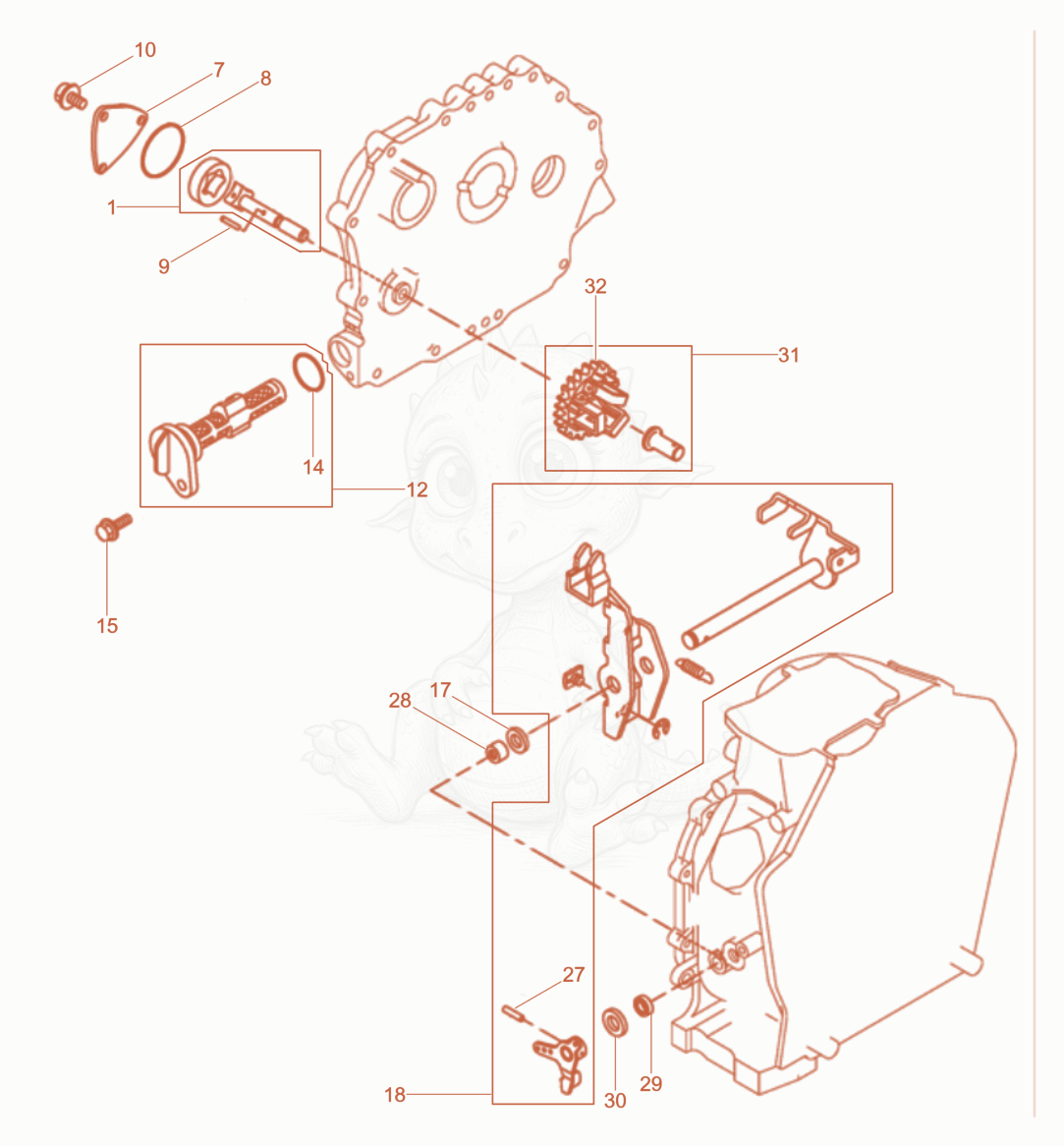

RD10YEHFLRC Oil pump, Governor Diagram
- PUMP ASSY,OIL - 5100031888×1
- COVER,LUB.OIL PUMP - 5000210520×1
- O-RING,COVER - 5000210618×1
- PIN 3 X 16 - 5000073648×1
- BOLT-M6 X 12 - 5000119897×3
- Oil filter cpl. - 5100059723×1
- O-RING 22.4 X 1.8 (S-22.4) - 5000073693×1
- SCREW M6 X 16,HX.FLANGE - 5000073659×1
- WASHER,GOVERNOR - 5000210527×1
- GOVERNOR LEVER CPL - 5100031889×1
- PIN-TAPER 3 X 20 - 5000119854×1
- BEARING-NEEDLE - 5000119867×2
- SEAL-OIL - 5000210526×1
- WASHER-THRUST - 5000087375×1
- Speed control module cpl. - 5000217943×1
- Governor weight - 5000217882×1
